AD830

Data Sheet

Rev. D | Page 20 of 20

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

0.310 (7.87)

0.220 (5.59)

0.005 (0.13)

MIN

0.055 (1.40)

MAX

0.100 (2.54) BSC

15°

0°

0.320 (8.13)

0.290 (7.37)

0.015 (0.38)

0.008 (0.20)

SEATING

PLANE

0.200 (5.08)

MAX

0.405 (10.29) MAX

0.150 (3.81)

MIN

0.200 (5.08)

0.125 (3.18)

0.023 (0.58)

0.014 (0.36)

0.070 (1.78)

0.030 (0.76)

0.060 (1.52)

0.015 (0.38)

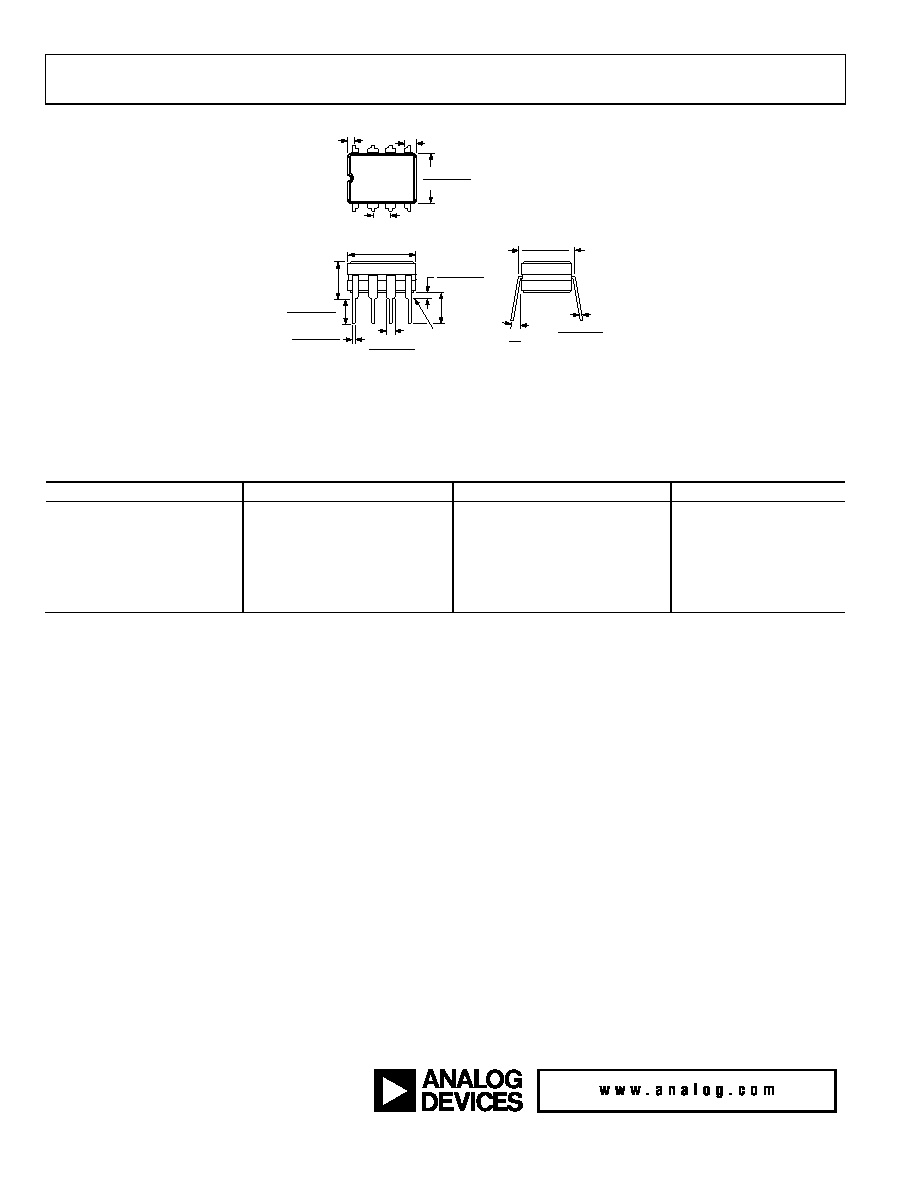

Figure 52. 8-Lead Ceramic Dual In-Line Package [CERDIP]

(Q-8)

Dimensions shown in inches and (millimeters)

ORDERING GUIDE

Model1, 2

Temperature Range

Package Description

Package Option

AD830ANZ

−40°C to +85°C

8-Lead PDIP

N-8

AD830ARZ

−40°C to +85°C

8-Lead SOIC_N

R-8

AD830ARZ-REEL7

−40°C to +85°C

8-Lead SOIC_N

R-8

AD830JRZ

0°C to +70°C

8-Lead SOIC_N

R-8

AD830JRZ-R7

0°C to +70°C

8-Lead SOIC_N

R-8

5962-9313001MPA

−55°C to +125°C

8-Lead CERDIP

Q-8

Z = RoHS Compliant Part.

See Standard Military Drawing 5962-9313001 MPA for specifications.

registered trademarks are the property of their respective owners.

D00881-0-1/18(D)
