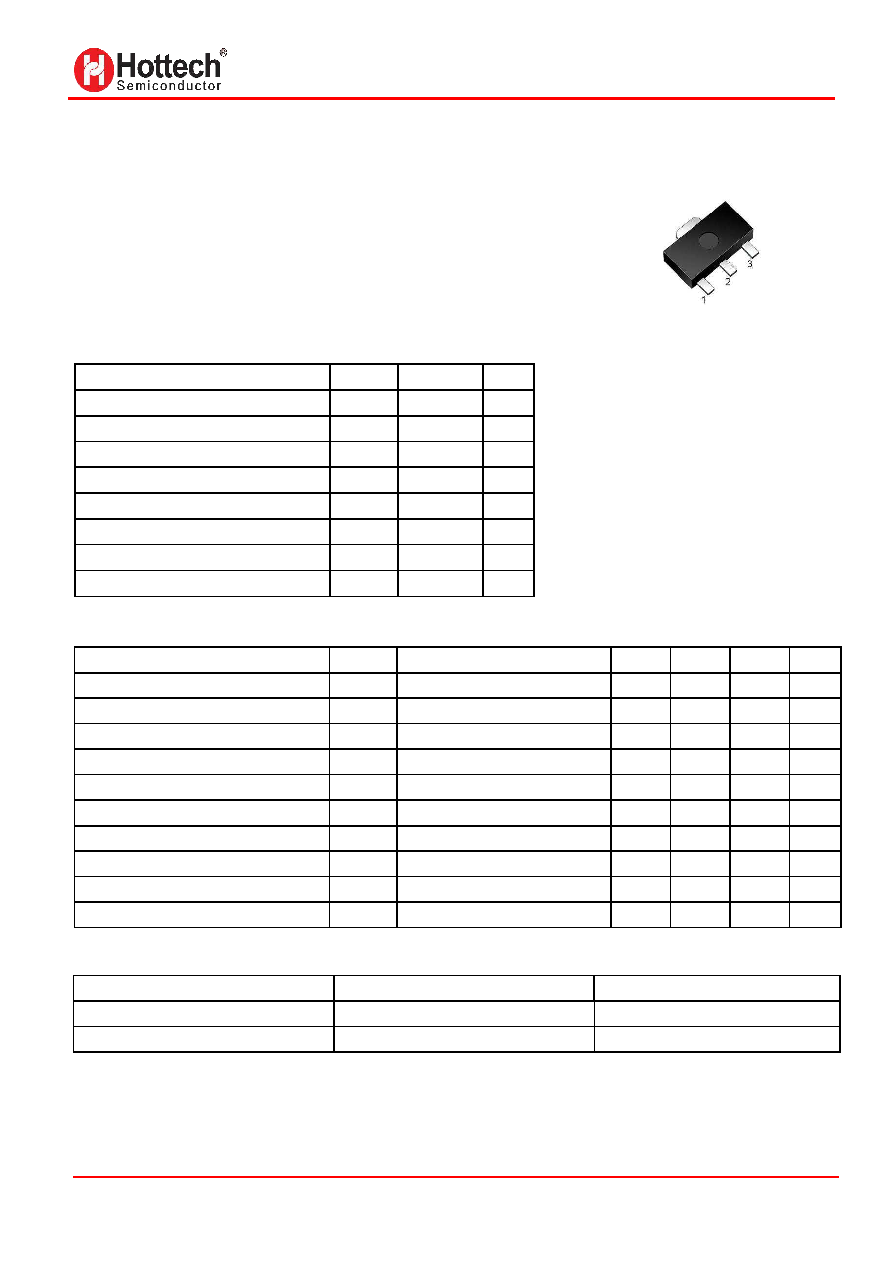

1 / 4 page  ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 1 / 4 HETA1663 (PNP) GENERAL PURPOSE TRANSISTOR REPLACEMENT TYPE : KTA1663 FEATURES High Current Applications Complementary to HEC437 MAXIMUM RATINGS (TA= 25°C unless otherwise noted) ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted) Parameter Symbol Test conditions Min Typ Max Unit Collector-Base Breakdown Voltage VCBO IC=-1mA ,IE=0 -30 V Collector-Emitter Breakdown Voltage VCEO IC=-10mA ,IB=0 -30 V Emitter-Base Breakdown Voltage VEBO IE=-1mA ,IC=0 -5 V Collector Cut-off Current ICBO VCB=-30V,IE=0 -0.1 uA Emitter Cut-off Current IEBO VEB=-5V,IC=0 -0.1 uA DC Current Gain hFE 1 VCE=-2V,IC=-0.5A 100 320 Collector-Emitter Saturation Voltage VCE(sat) IC=-1.5A ,IB=-30mA -2 V Base-Emitter Saturation Voltage VBE(sat) VCE=-2V , IC=-0.5A -1 V Transition Frequency fT VCE=-2V ,IC=-500mA 120 MHz Output Capacitance Cob VCB=-10V ,IE=0, f=1MHz 50 pF CLASSIFICATION OF hFE Rank O Y Range 100-200 160-320 Marking HO HY Parameter Symbol Value Unit Collector-Base Voltage VCBO -30 V Collector-Emitter Voltage VCEO -30 V Emitter-Base Voltage VEBO -5 V Collector Current-Continuous IC -1.5 A Collector Power Dissipation PC 500 mW Thermal Resistance From Junction to Ambient RΘJA 250 °C/W Junction Temperature TJ 150 °C Storage Temperature Tstg -55~+150 °C SOT-89 1:BASE 2:COLLECTOR 3:EMITTER |
