A3GA-99D2-R Datasheet(PDF) 12 Page - Omron Electronics LLC

No. de pieza A3GA-99D2-R
Descripción Electrónicos  Lighted and non-lighted/convex versions
PDF  18 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  OMRON [Omron Electronics LLC]
Página de inicio  http://www.omron.com/index3.html
Logo OMRON - Omron Electronics LLC

A3GA-99D2-R Datasheet(HTML) 12 Page - Omron Electronics LLC

Back Button A3GA-99D2-R Datasheet HTML 8Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 9Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 10Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 11Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 12Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 13Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 14Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 15Page - Omron Electronics LLC A3GA-99D2-R Datasheet HTML 16Page - Omron Electronics LLC Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 18 page
background image
12
A3G
A3G

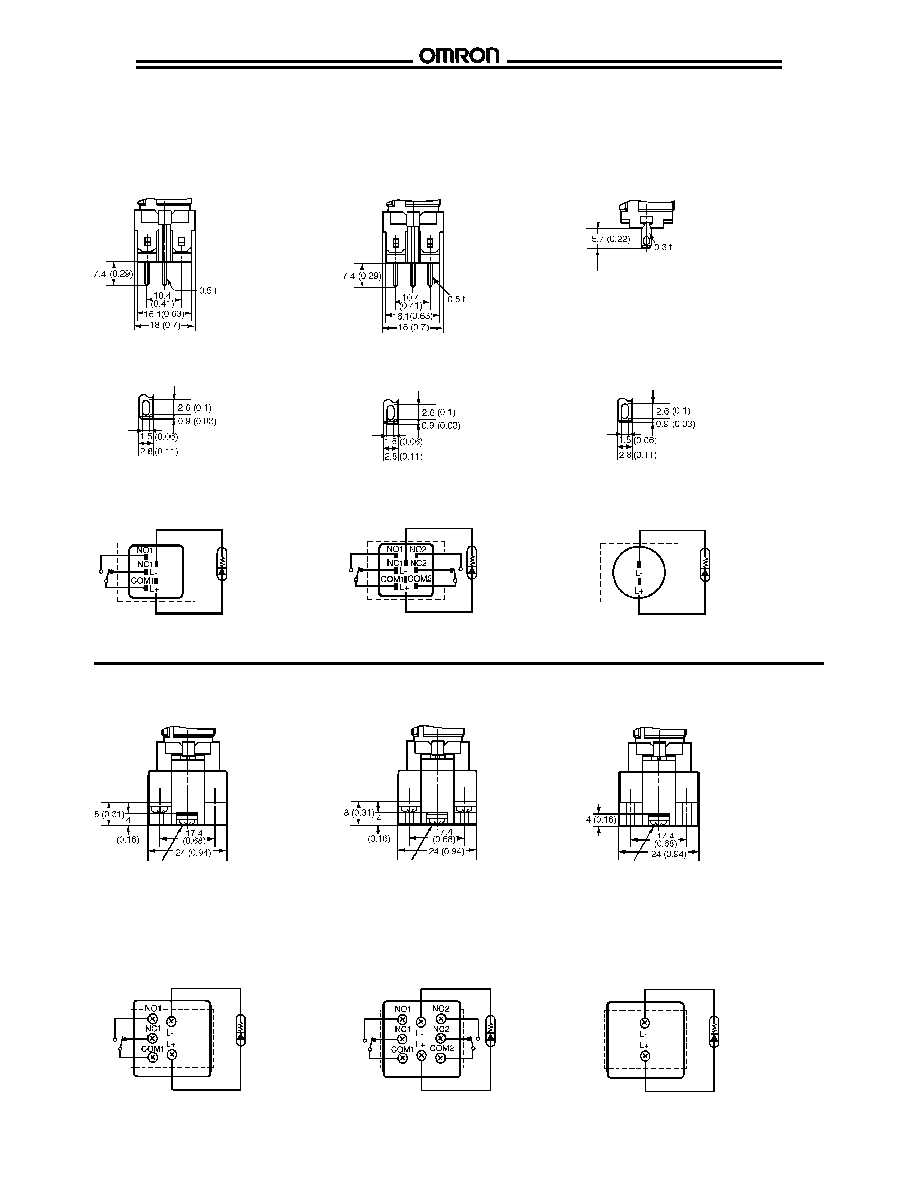

s SOLDER TERMINALS
SPDT switch
DPDT switch
Indicator
Lighted type
Lighted type
Display lamp
Dimensions of terminal holes
Dimensions of terminal holes
Dimensions of terminal holes
Terminal arrangement
Terminal arrangement
Terminal arrangement
(bottom view)
(bottom view)
(bottom view)
s SCREW TERMINALS
Terminal arrangement
Terminal arrangement
Terminal arrangement
(bottom view)
(bottom view)
(bottom view)
SPDT switch
DPDT switch
Indicator
Five, M3 x 6 Phillips
Eight, M3 x 6 Phillips
Two, M3 x 6 Phillips
screws with washers
screws with washers
screws with washers
Unit: mm (inch)
