07/23/2018   Page 4 / 5

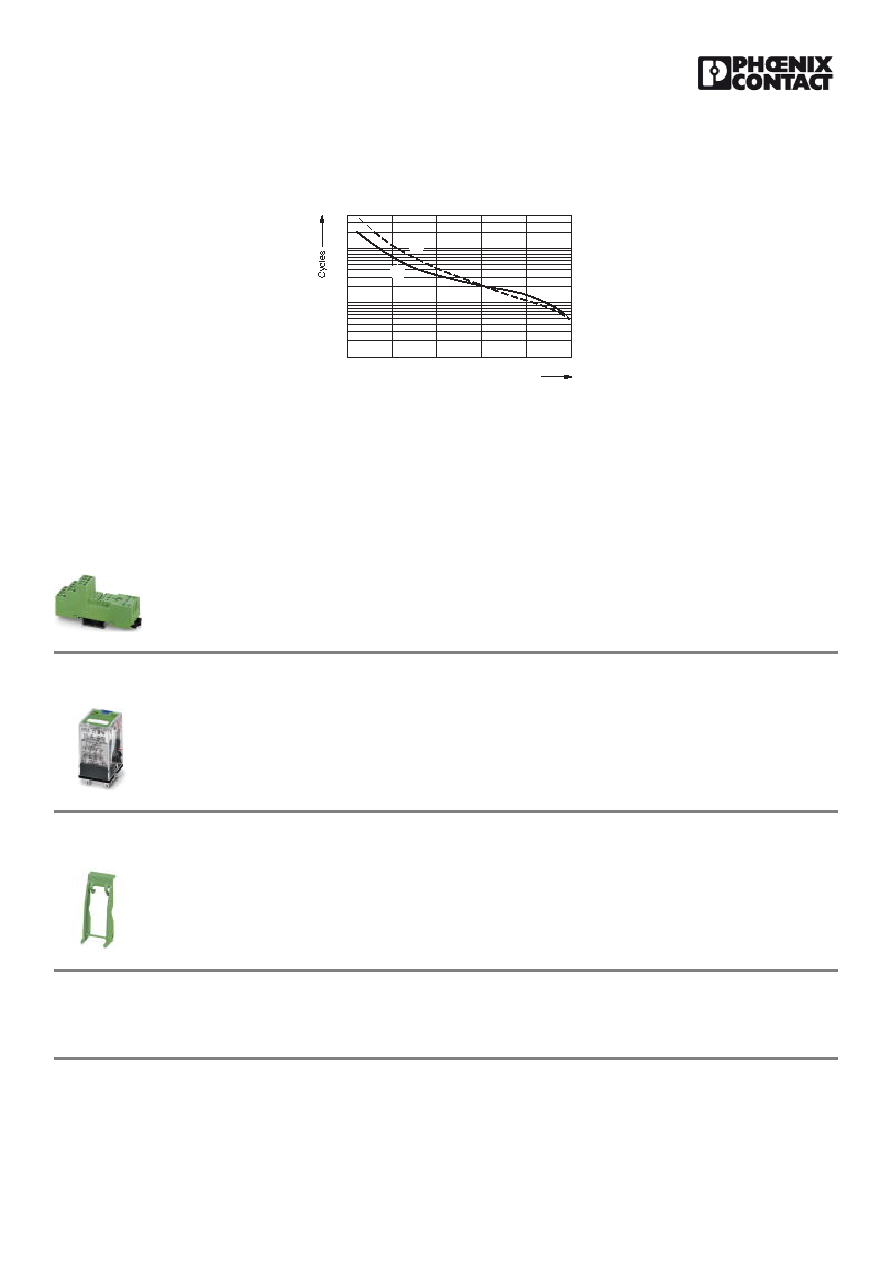

Relay Module - PR2-RSP3-LDP-24DC/4X21AU - 2834766

Diagram

Switchingcurrent[A]

250VAC,ohmicload

30VDC,ohmicload

10

6

10

5

0

1

2

3

4

5

10

4

2

1

1

2

Electrical service life

Articles in set

Relay base - PR2-BSP3/4X21 - 2833589

Relay base PR2-B, for industrial relay REL-IR with 2 or 4 PDT, 1/3-level version, spring-cage connections,

connection facility for input/interference suppression modules, for mounting on NS 35/7.5





Single relay - REL-IR/LDP- 24DC/4X21AU - 2834096

Pluggable industrial relays with power contacts and additional hard gold plating, 4 PDT, test button, status LED, free-

wheeling diode, mechanical switch position indicator, polarity A1+, A2-, coil voltage: 24 V DC





Retaining bracket - EL2-P35 - 2833592

Relay retaining bracket, with eject function and integrated equipment marking area (8 x 25 mm), to suit relay base

PR2, for 35 mm high industrial relay





Approvals

Approvals

Approvals

EAC
