AD8337
Data Sheet
Rev. D | Page 8 of 28
30
–5
100k
500M
FREQUENCY (Hz)
1M
10M
100M
25
20
15
10
5
0
VGAIN = –0.7
VGAIN = –0.5
VGAIN = –0.2
VGAIN = 0
VGAIN = +0.2
VGAIN = +0.5
VGAIN = +0.7
eIN = 10mV p-p

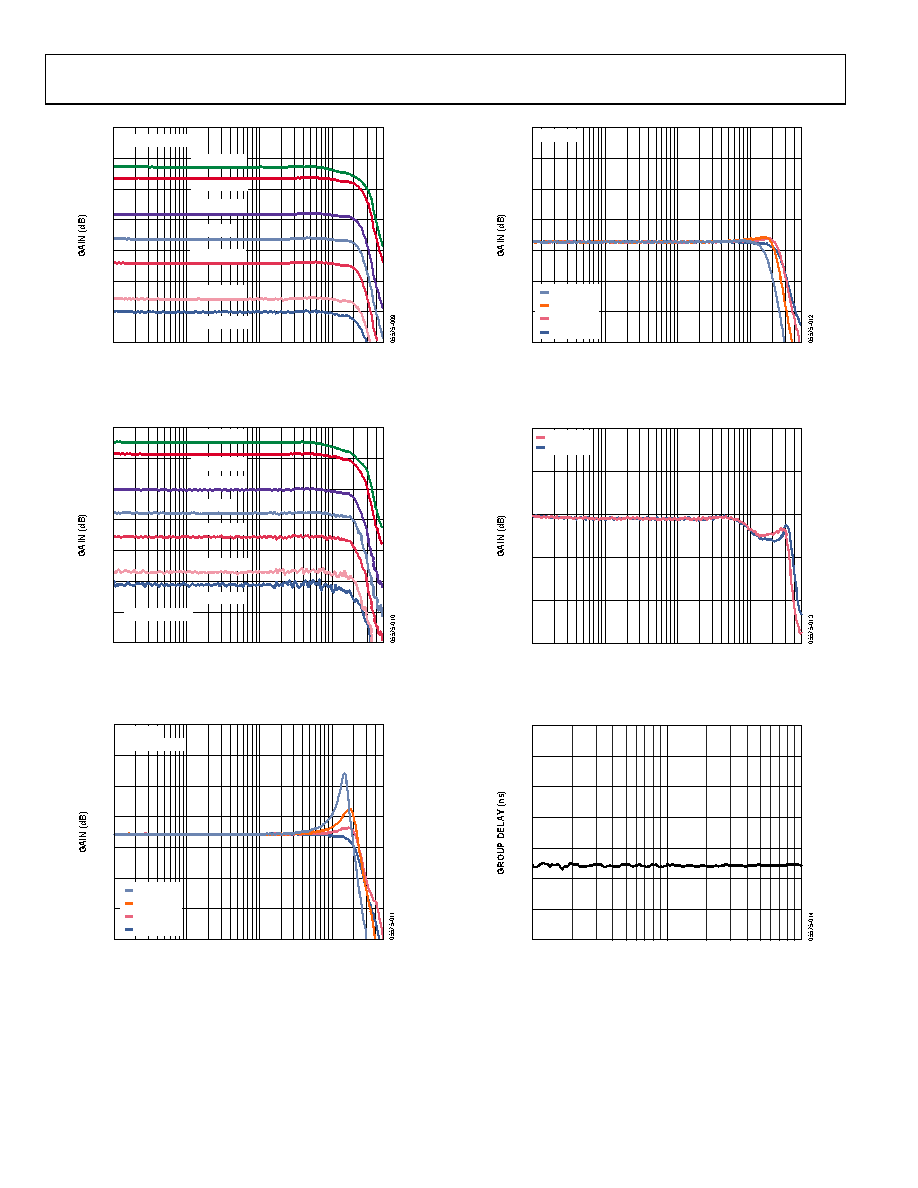

Figure 9. Frequency Response for Various Values of VGAIN
(See Figure 45)
20
–15
100k
500M
FREQUENCY (Hz)
1M
10M
100M
15
10
5
0
–5
–10
VGAIN = –0.7
VGAIN = –0.5
VGAIN = –0.2
VGAIN = 0
VGAIN = +0.2
VGAIN = +0.5
VGAIN = +0.7
eIN = 10mV p-p
Figure 10. Frequency Response for Various Values of VGAIN—Inverting Input
(See Figure 58)
30
–5
100k
500M
FREQUENCY (Hz)
1M
10M
100M
25
20
15
10
5
0
CL = 47pF
CL = 22pF
CL = 10pF
CL = 0pF
VGAIN = 0V
eIN = 10mV p-p
Figure 11. Frequency Response for Three Values of CL
(See Figure 45)
30
–5
100k
500M
FREQUENCY (Hz)
1M
10M
100M
25
20
15
10
5
0
VGAIN = 0V
CL = 47pF
CL = 22pF
CL = 10pF
CL = 0pF
Figure 12. Frequency Response for Three Values of CL
with a 20 Ω Snubbing Resistor (See Figure 45)
10
0
100k
500M
FREQUENCY (Hz)
1M
10M
100M
8
6
4
2
VS = ±2.5V
VS = ±5V
Figure 13. Frequency Response—Preamp
(See Figure 46)
25
–10
1M
100M
FREQUENCY (Hz)
10M
–5
0
5
10
15
20
Figure 14. Group Delay vs. Frequency
(See Figure 47)
