RIF-1-RSC-LDP-12DC datasheet(1/6 Pages) PHOENIX

No. de pieza	RIF-1-RSC-LDP-12DC

Descripción Electrónicos	Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, plug-in display/interference suppression module, and retaining bracket. Contact type: 1 changeover contact. Input voltage: 12 V DC

PDF	6 Pages

Scroll/Zoom	100%

Fabricante Electrónico	PHOENIX [PHOENIX CONTACT]

Página de inicio	http://www.phoenixcontact.com

Logo

1 / 6 page

https://www.phoenixcontact.com/pi/products/2908500

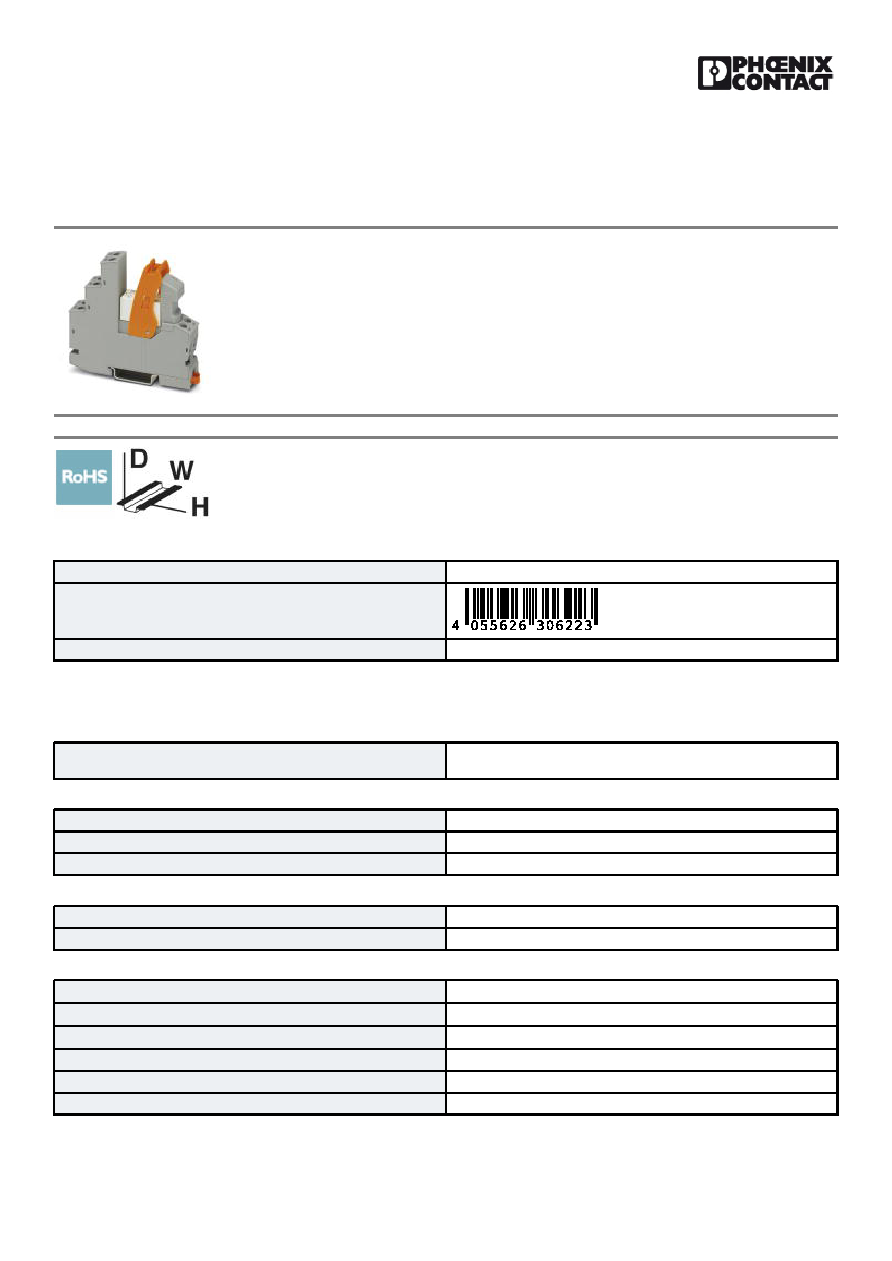

07/23/2018 Page 1 / 6

Relay Module - RIF-1-RSC-LDP-12DC/1X21 - 2908500

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, plug-in

display/interference suppression module, and retaining bracket. Contact type: 1 changeover contact. Input

voltage: 12 V DC

Key Commercial Data

Packing unit

10 STK

GTIN

4055626306223

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

16 mm

Height

89 mm

Depth

75 mm

Ambient conditions

Ambient temperature (operation)

-40 °C ... 70 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Coil side

Nominal input voltage UN

12 V DC

Input voltage range in reference to UN

see diagram

Typical input current at UN

33 mA

Typical response time

8 ms

Typical release time

10 ms

Coil voltage

12 V DC
