HMC974LC3C

Data Sheet

Rev. E | Page 10 of 12

APPLICATIONS INFORMATION

EVALUATION BOARD

The HMC974LC3C evaluation printed circuit board (PCB)

must use RF circuit design techniques. Signal lines must have

50 Ω impedance while the package ground leads must connect

directly to the ground plane of the PCB. The exposed metal

ground planes connect together with via holes. The evaluation

PCB shown in Figure 13 is available from Analog Devices, Inc.,

upon request.

Figure 14 shows the EVAL-HMC974LC3C schematic. Figure 15

shows the typical application circuit.

Table 5. Bill of Materials

Reference Designator

Description

J1

Eight-position vertical header

J2 to J7

K connector, SRI

J8

Terminal strip, single row, 3-pin

JP1, JP2

Two position vertical header

C1 to C3, C5, C6, C8 to C10,

C15

100 pF capacitor, 0402

C4, C7, C11

330 pF capacitor, 0402

C12 to C14

4.7 μF tantalum capacitor

TP1 to TP4

DC pin

U1

HMC974LC3C window comparator

PCB

EVAL-HMC974LC3C evaluation

board, circuit board material is

either Rogers 4350 or Arlon 25FR

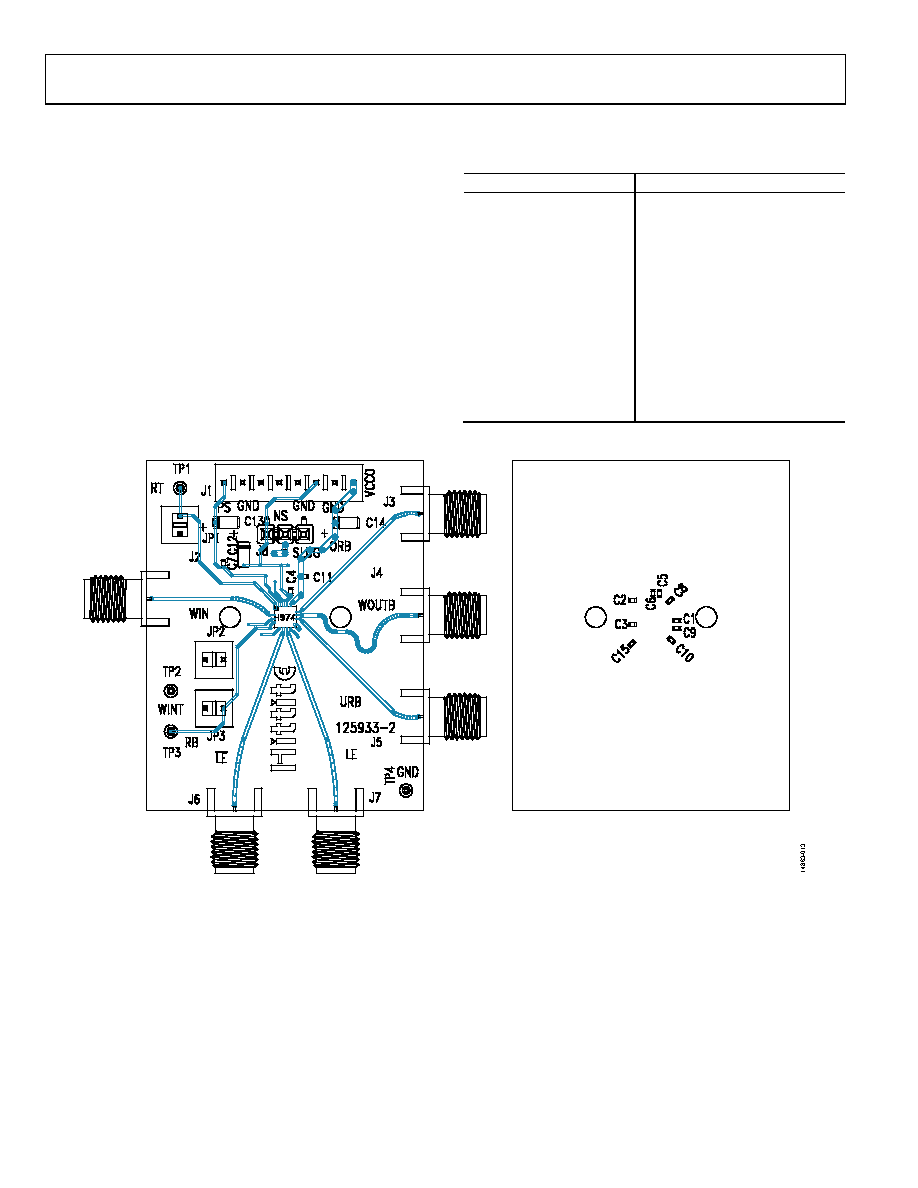

Figure 13. Evaluation Printed Circuit Board
