UNISONIC TECHNOLOGIES CO., LTD

TL1093

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 5

Copyright © 2013 Unisonic Technologies Co., Ltd

QW-R103-045.B

PROGRAMMABLE PRECISION

REFERENCE



DESCRIPTION

The UTC TL1093 is a three-terminal adjustable regulator with a

guaranteed thermal stability over applicable temperature ranges.

(approximately 2.5V) and 36 V with two external resistors. It

provides very wide applications, including shunt regulator, series

regulator, switching regulator, voltage reference and others.



FEATURES

*Programmable output Voltage to 36V.

*Low dynamic output impedance 0.2Ω.

*Sink current capability of 1.0 to 100mA.

*Equivalent full-range temperature coefficient of 50ppm/

C

typical for operation over full rated operating temperature range.



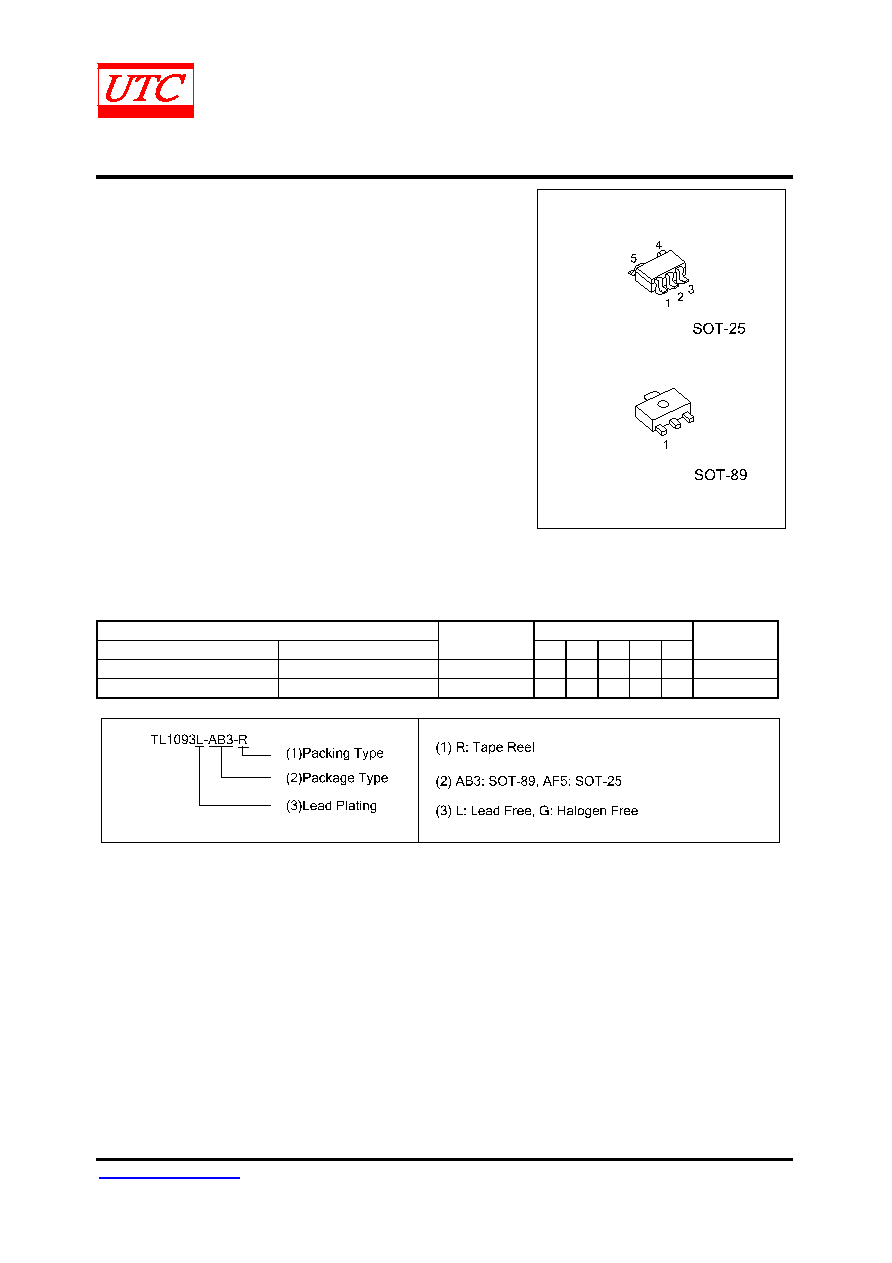

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1234

5

TL1093L-AB3-R

TL1093G-AB3-R

SOT-89

K

A

R

-

-

Tape Reel

TL1093L-AF5-R

TL1093G-AF5-R

SOT-25

R

A

K

NC

A

Tape Reel

Note: Pin Code: K: Cathode

A: Anode

R: Reference

NC: No Connection
