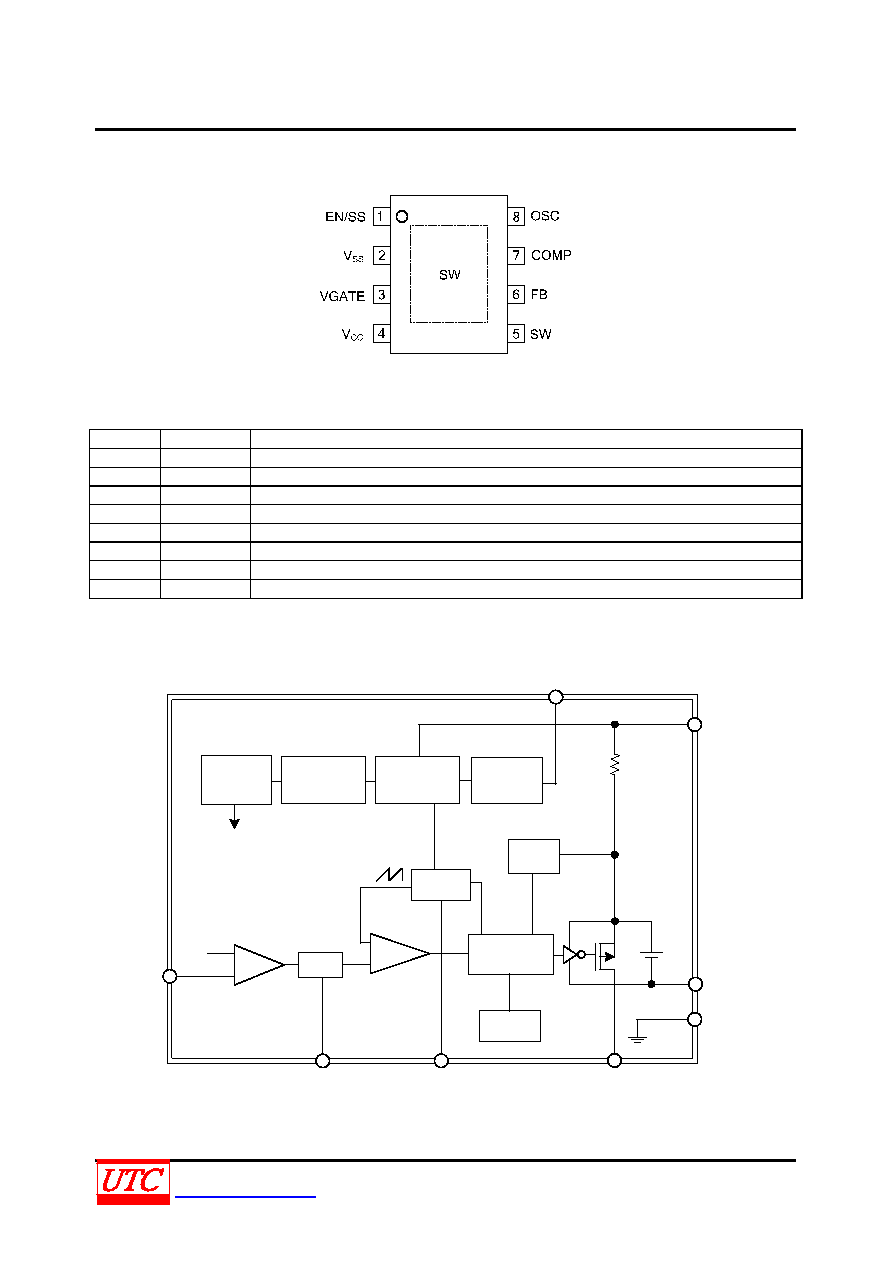

background image
P4596
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
2 of 4
www.unisonic.com.tw
QW-R103-064.d
PI N CON FI GU RAT I ON
PI N DESCRI PT I ON
PIN NO.
PIN NAME
DESCRIPTION
1
EN/SS
Enable and Soft-start pin
2
VSS
Ground
3
VGATE
Driver GATE clamping pin.
4
VCC
IC power supply pin
5
SW
Switch pin.
6
FB
Feedback voltage
7
COMP
Compensation pin
8
OSC
Frequency Set Pin.
BLOCK DI AGRAM
VCC
VGATE
VSS
SW
OSC
COMP
FB
EN/SS
START-UP
REGULATOR
2.5V
1.23V
REFERENCE
BIAS
OCP
Oscillator
0.815 V
AMP
+
-
COMP.
COMP.
+
-
PWM
OTP
