HMC856
Data Sheet
Rev. D | Page 6 of 13

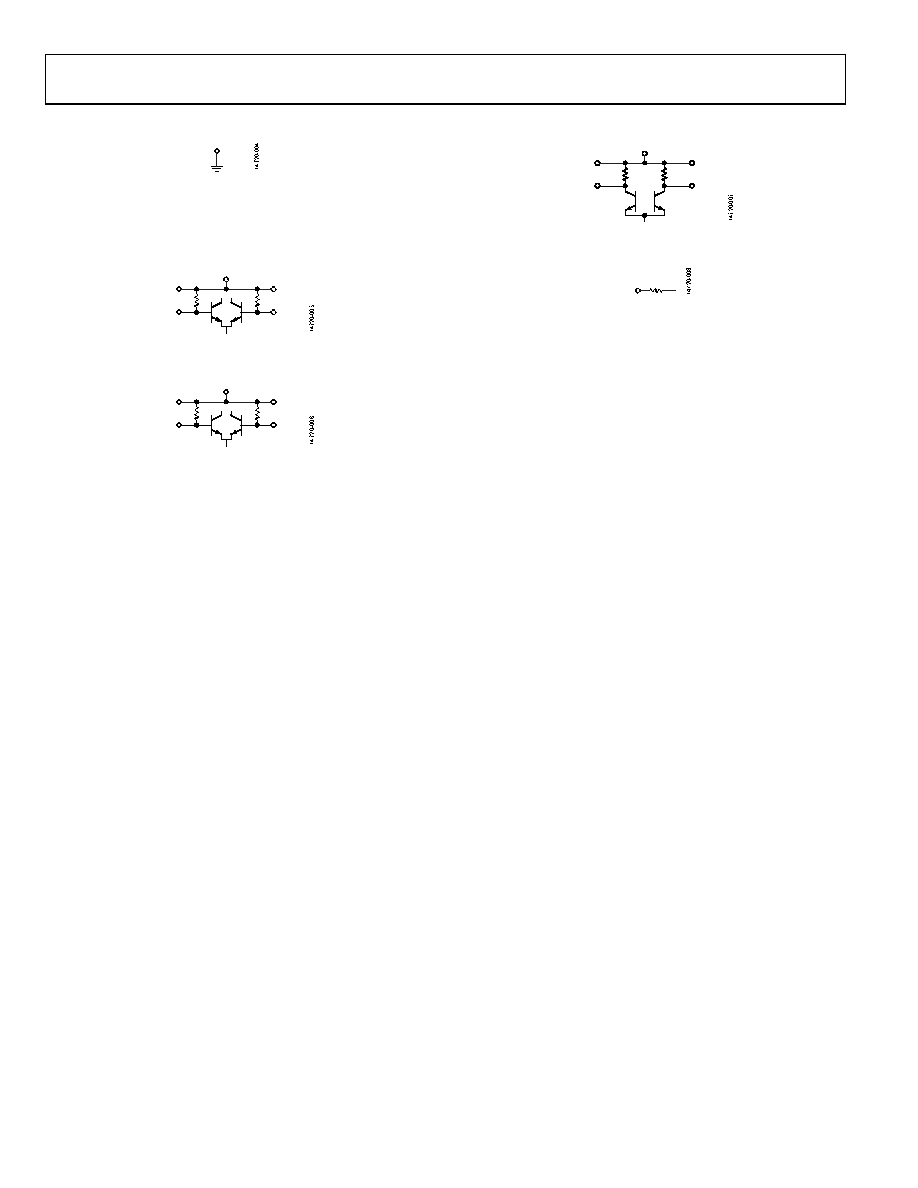

INTERFACE SCHEMATICS
GND
Figure 4. GND Interface Schematic
50Ω
50Ω
GND
GND
I+
I–
GND
Figure 5. I+, I− Interface Schematic
600Ω
600Ω
GND
GND
Bx+
Bx–
GND
Figure 6. BX+, BX− Interface Schematic
50Ω
50Ω
GND
GND
O+
O–
GND
Figure 7. O+, O− Interface Schematic
VR
Figure 8. VR Interface Schematic
