US107ALG-AF5-R Datasheet(PDF) 2 Page - Unisonic Technologies

No. de pieza US107ALG-AF5-R
Descripción Electrónicos  POWER DISTRIBUTION SWITCH
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  UTC [Unisonic Technologies]
Página de inicio  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

US107ALG-AF5-R Datasheet(HTML) 2 Page - Unisonic Technologies

  US107ALG-AF5-R Datasheet HTML 1Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 2Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 3Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 4Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 5Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 6Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 7Page - Unisonic Technologies US107ALG-AF5-R Datasheet HTML 8Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out

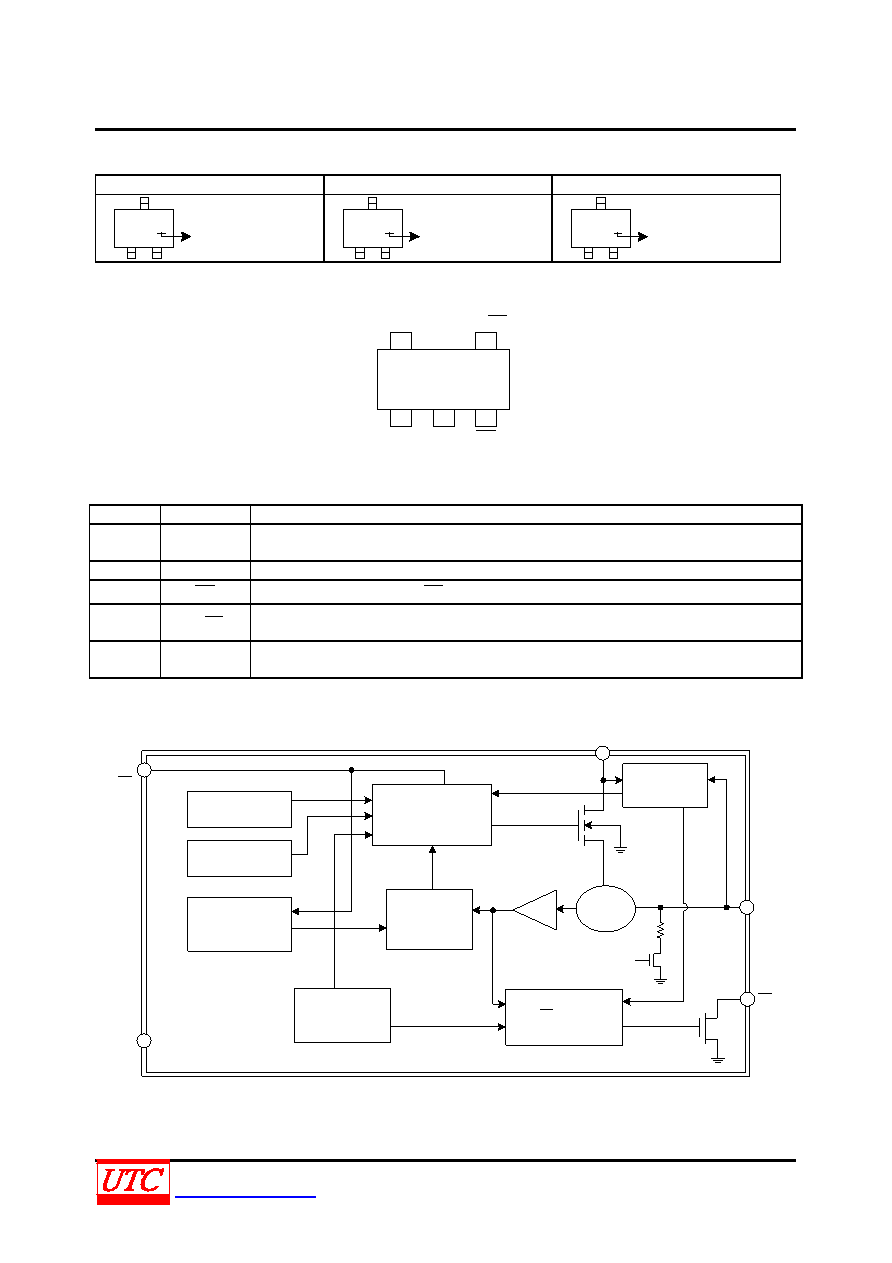

 2 / 8 page
background image
US107
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 8
www.unisonic.com.tw
QW-R129-004.d
MARKING
US107A
US107B
US107C
U17Ax
L: Low, H: High
U17Bx
L: Low, H: High
U17Cx
L: Low, H: High
PIN CONFIGURATION
3
2
1
4
5
OC
OUT GND
EN (EN)
IN
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
OUT
Switch Output: Output MOSFET Source of switch. Typically connect to switched side of
load.
2
GND
Ground
3
OC
Over-Current: Open-Drain OC output.
4
EN( EN )
Enable: Logic level enable input.
Make sure EN pin never floating.
5
IN
Input Supply: Output MOSFET Drain, which also supplies IC's internal circuitry. Connect
to positive supply.
BLOCK DIAGRAM
EN
(EN)
GND
Clock
BandGap
Reference
UVLO
Gate Control
Overcurrent
Limiting
Thermal Sense
CMP
Current
Sense
Shutdown
Signal
OC Deglitch logic
IN
Output
Reverse-Voltage
Protection
OUT
OC
