Data Sheet
SSM2519
Rev. 0 | Page 5 of 28

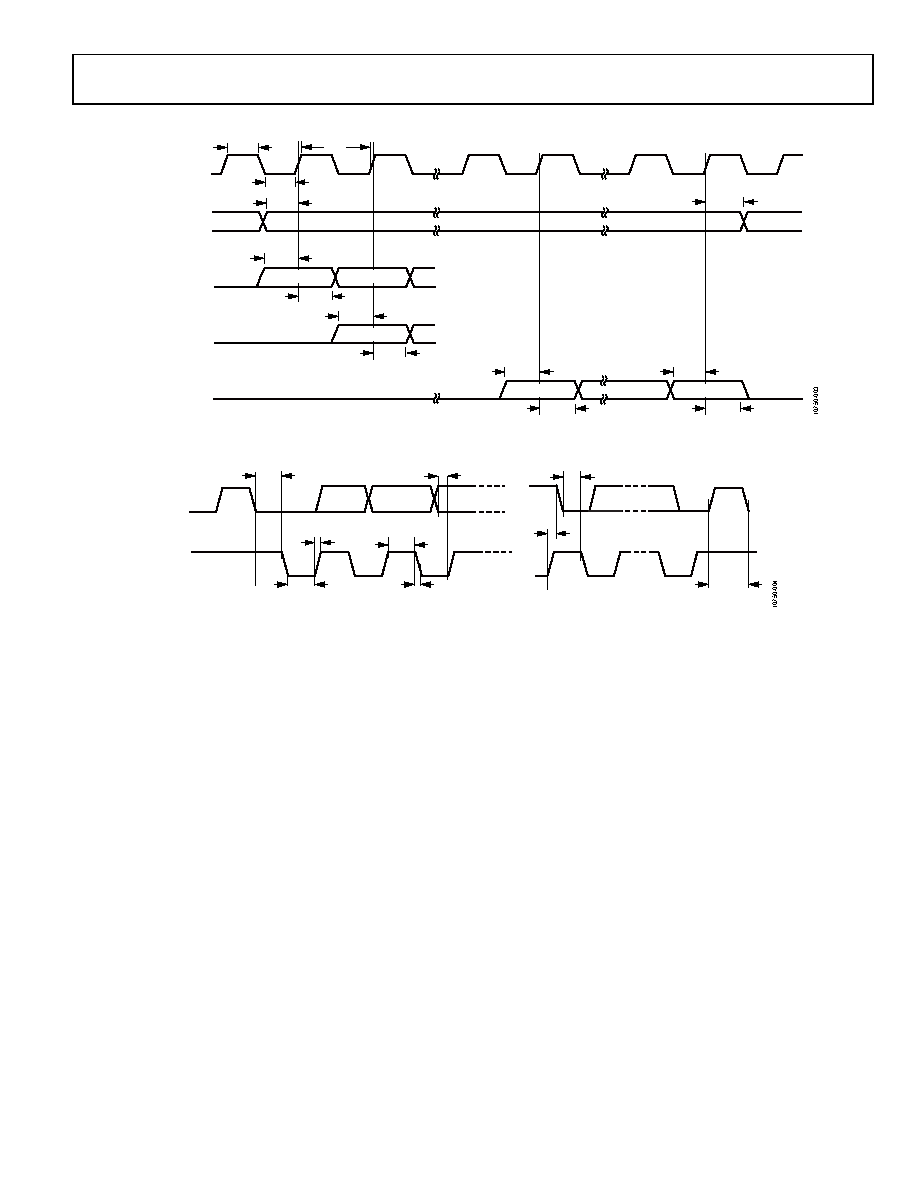

Digital Timing Diagrams
Figure 2. Serial Input Port Timing
Figure 3. I2C Port Timing
tSIS
tSIH
tSIS
tSIH
tLIH
tBP
tBIH
BCLK
LRCLK
SDATA
LEFT-JUSTIFIED
MODE
SDATA
I2C-JUSTIFIED
MODE
SDATA
RIGHT-JUSTIFIED
MODE
tBIL
tLIS
tSIS
tSIH
tSIS
tSIH
MSB
MSB
MSB
LSB
MSB – 1
tSCH
tSCS
tBFT
tSCF
tDS
tSCLL
tSCR
tSCLH
tSCH
STOP
CONDITION
START
CONDITION
SDA
SCL
