FP1107R1-R07-R Datasheet(PDF) 3 Page - Eaton All Rights Reserved.

No. de pieza FP1107R1-R07-R
Descripción Electrónicos  High frequency, high current power inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  EATON [Eaton All Rights Reserved.]
Página de inicio  https://www.eaton.com
Logo EATON - Eaton All Rights Reserved.

FP1107R1-R07-R Datasheet(HTML) 3 Page - Eaton All Rights Reserved.

  FP1107R1-R07-R Datasheet HTML 1Page - Eaton All Rights Reserved. FP1107R1-R07-R Datasheet HTML 2Page - Eaton All Rights Reserved. FP1107R1-R07-R Datasheet HTML 3Page - Eaton All Rights Reserved. FP1107R1-R07-R Datasheet HTML 4Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
3
www.eaton.com/electronics
Technical Data 4342
Effective June 2017

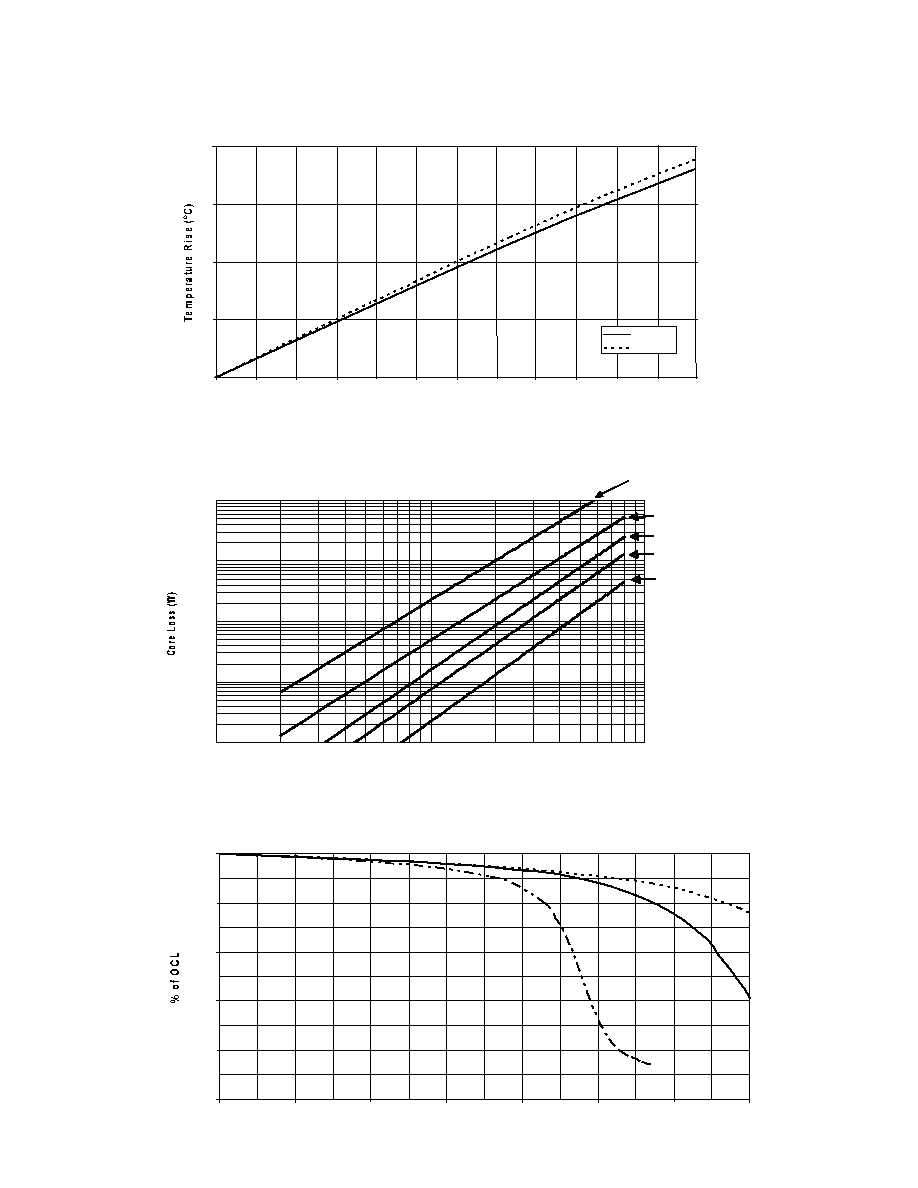

Core loss vs Bp-p
Inductance characteristics
FP1107
High frequency, high current power inductor
