Technical Data
10520
Effective April 2017
FP1008R5 and FP1008R6
High frequency, high current power inductors
www.eaton.com/electronics

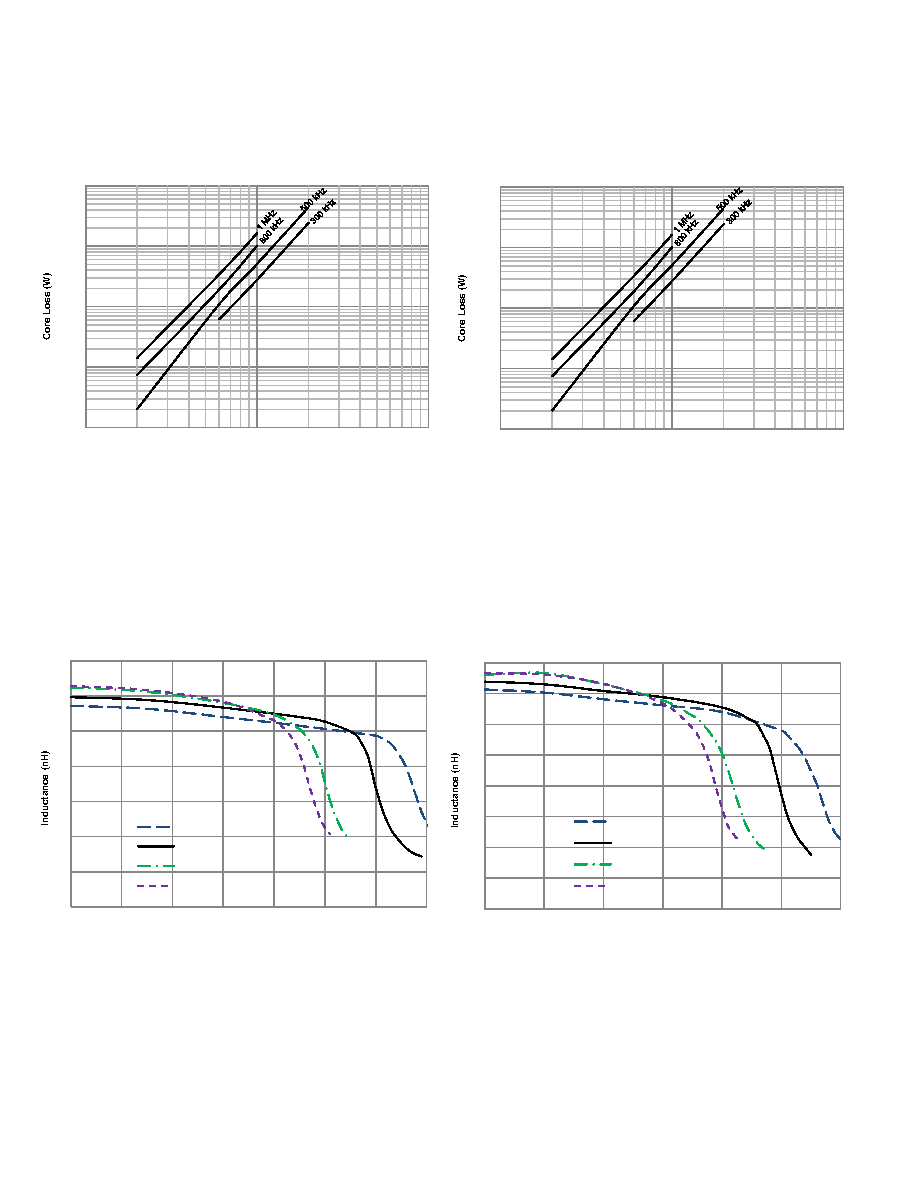

Core loss vs. Bp-p
Inductance characteristics
0.0001
0.001
0.01
0.1
1
100100010000
Bp-p (Gauss)
FP1008R5
0.0001
0.001
0.01
0.1
1
100100010000
Bp-p (Gauss)
FP1008R6
0
20
40
60
80
100
120
140
020406080100
120140
Idc (A)
FP1008R5-R120-R
-40 °C
+25 °C
+100 °C
+125 °C
0
20
40
60
80
100
120
140
160
020406080100
120
Idc (A)
FP1008R5-R150-R
-40 °C
+25 °C
+100 °C
+125 °C
