Technical Data
10448
Effective October 2015
FP1108L1 and FP1108L2
High frequency, high current power inductors
www.eaton.com/elx

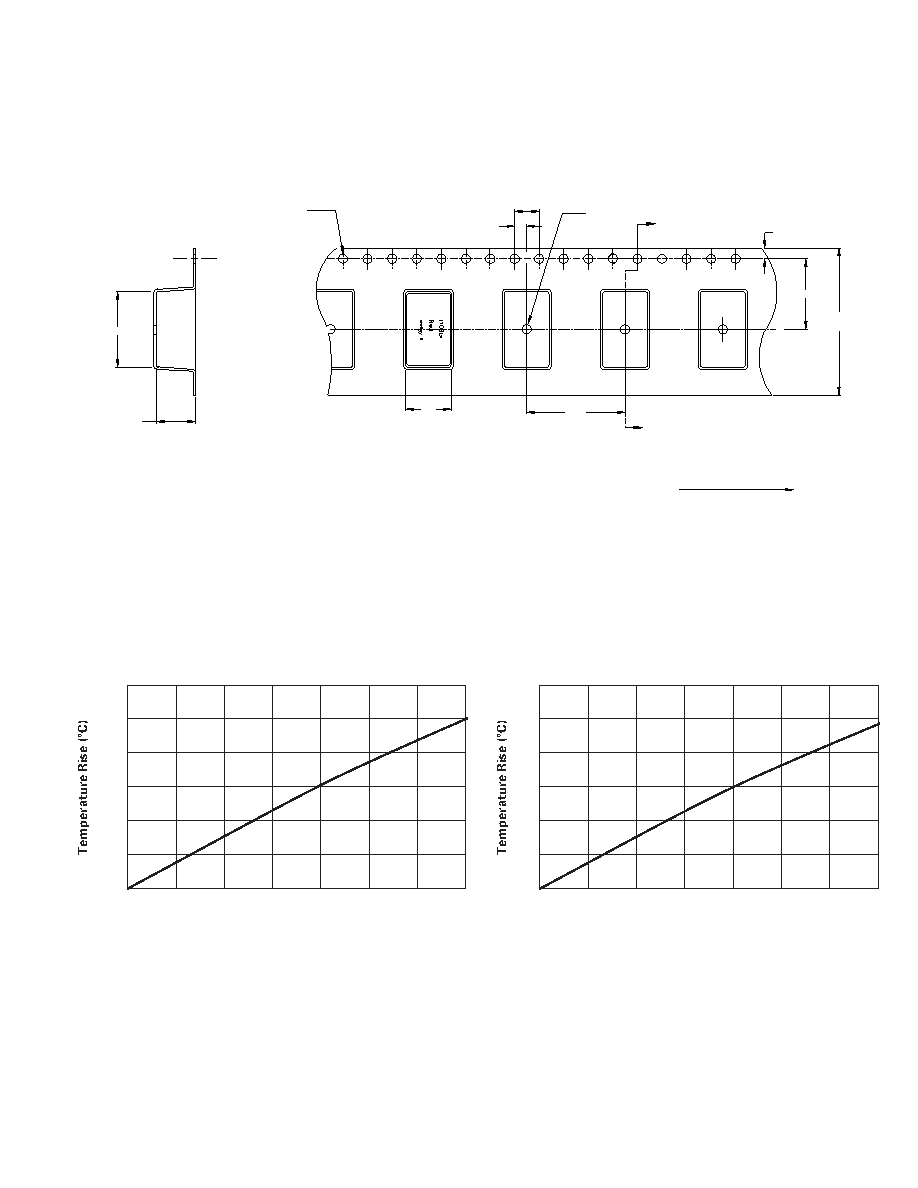

Packaging information (mm)
Supplied in tape and reel packaging, 450 parts per 13” diameter reel
Temperature rise vs. total loss
User Direction of feed
1.75
24.0
±0.3
11.5
1.5 dia
1.5 dia
11.2
8.4
8.4
16.0
4.0
2.0
Section A–A
A
A
Total Loss (W)
FP1108L1
0
10
20
30
40
50
60
0.00.1
0.20.3
0.40.5
0.60.7
0
10
20
30
40
50
60
0.00.1
0.20.3
0.40.5
0.60.7
Total Loss (W)
FP1108L2
