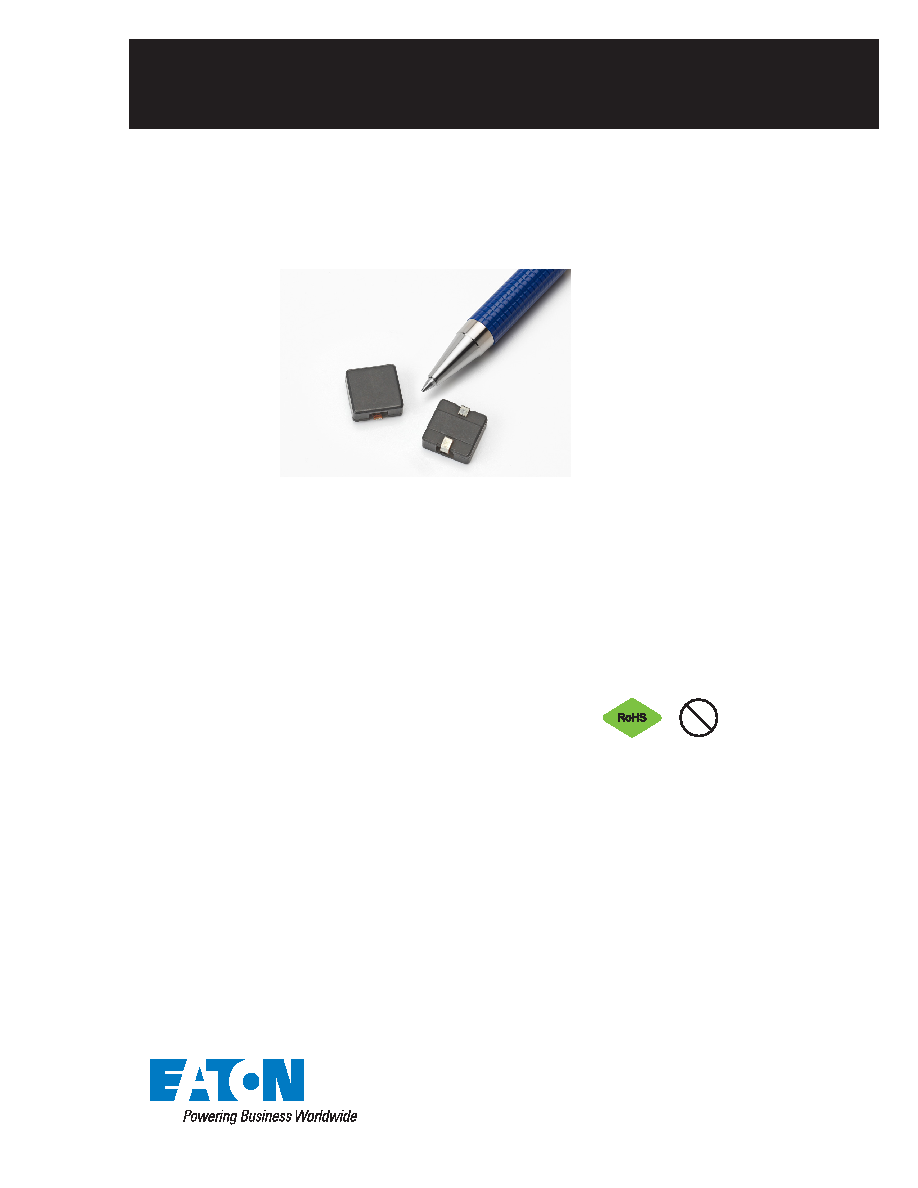

Technical Data 4126
Effective October 2015
Supersedes March 2007
Product description
•
Low profile surface mount inductors designed
for higher speed switch mode applications
requiring low voltage, and high current
•
Design utilizes high temperature powder iron
material with a non-organic binder to eliminate
thermal aging
•
Inductance range from 0.17 uH to 47.9 uH
•
Current range from 1.7 to 56 Amps
•
Frequency range 1kHz to 500kHz
Applications
•
Multi-phase regulators
•
Voltage Regulator Modules (VRMs)
•
Distributed power systems DC-DC converters
•
Notebook and laptop regulators
•
Desktop and server VRMs and EVRDs
•
Point-of-Load (POL) modules
•
Battery power systems
•
High current power supplies
•
Data networking and storage systems
Environmental data
•
Storage temperature range (component):
-40°C to +155°C
•
Operating temperature range: -40°C to +155°C
(ambient plus self-temperature rise)
•
Solder reflow temperature: J-STD-020D
compliant
HC8LP
Low profile, high current power inductors
Pb
