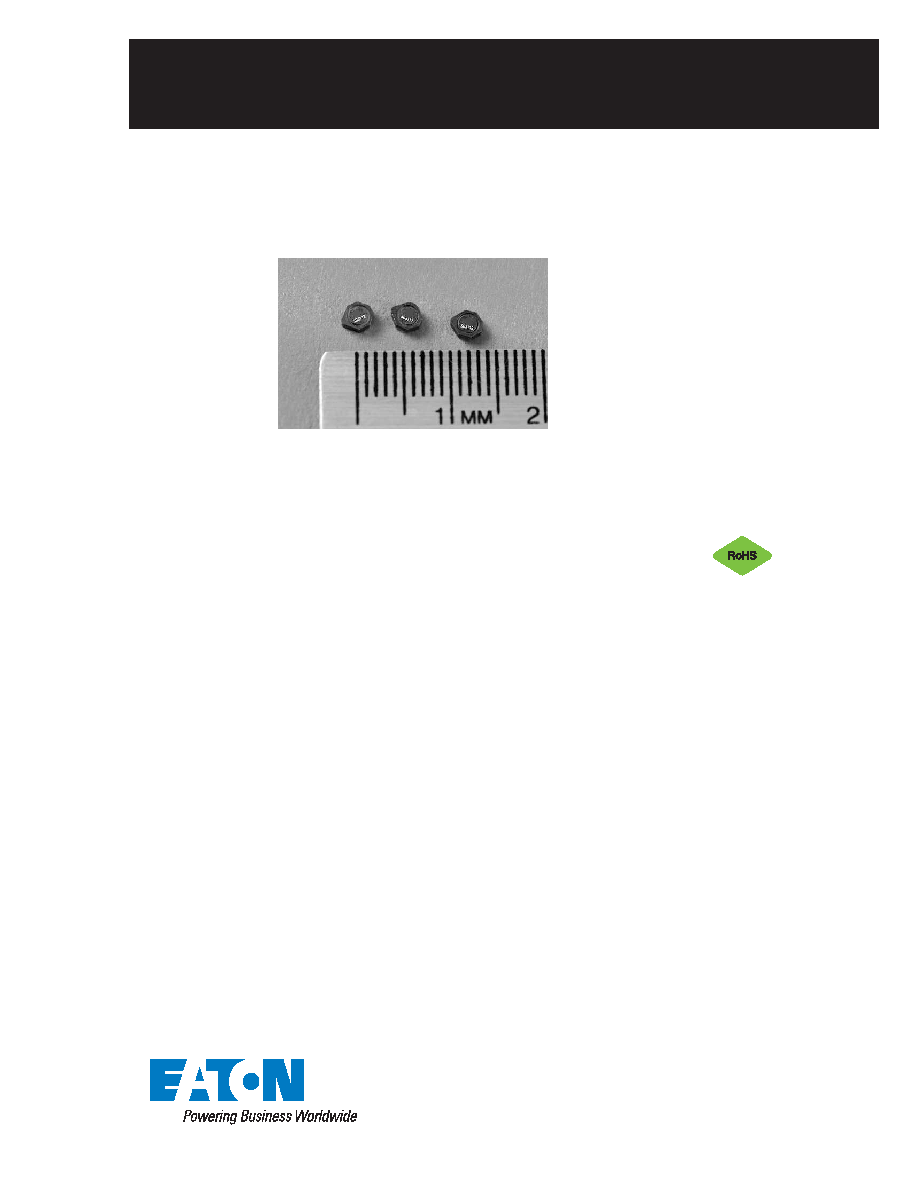

Technical Data 4127

Effective October 2017

Supersedes March 2007

Product features

•

3.1 mm x 3.1 mm x 1.2 mm shielded drum

core

•

Ferrite core material

•

Inductance range from 1.0 uH to 220 uH

•

Current range from 1.65 A to 0.113 A

•

Frequency range up to 4 MHz

Applications

•

Storage temperature range (component):

-40 °C to +125 °C

•

Operating temperature range: -40 °C to +125 °C

(ambient plus self-temperature rise)

•

Solder reflow temperature:

J-STD-020 (latest revision) compliant

SD3112

Low profile metalized shielded drum core power inductors

•

Mobile phones

•

Digital cameras

•

Media players

•

Small LCD displays

•

LED driver and LED flash circuits

•

Hard disk drives

•

LCD Backlighting

Environmental data

SMD Device

Discontinued,

Effective

July

31,

2016

or until

inventory

is depleted.

Please

review

SD3114

data

sheet

(4128)as

an alternate

replacement.
