ADR370BRT-R2 Datasheet(PDF) 9 Page - Analog Devices

No. de pieza ADR370BRT-R2
Descripción Electrónicos  Precision Low Power 2.048 V SOT-23 Voltage Reference
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  AD [Analog Devices]
Página de inicio  http://www.analog.com
Logo AD - Analog Devices

ADR370BRT-R2 Datasheet(HTML) 9 Page - Analog Devices

Back Button ADR370BRT-R2 Datasheet HTML 4Page - Analog Devices ADR370BRT-R2 Datasheet HTML 5Page - Analog Devices ADR370BRT-R2 Datasheet HTML 6Page - Analog Devices ADR370BRT-R2 Datasheet HTML 7Page - Analog Devices ADR370BRT-R2 Datasheet HTML 8Page - Analog Devices ADR370BRT-R2 Datasheet HTML 9Page - Analog Devices ADR370BRT-R2 Datasheet HTML 10Page - Analog Devices ADR370BRT-R2 Datasheet HTML 11Page - Analog Devices ADR370BRT-R2 Datasheet HTML 12Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 9 / 12 page
background image
REV. A
ADR370
–9–

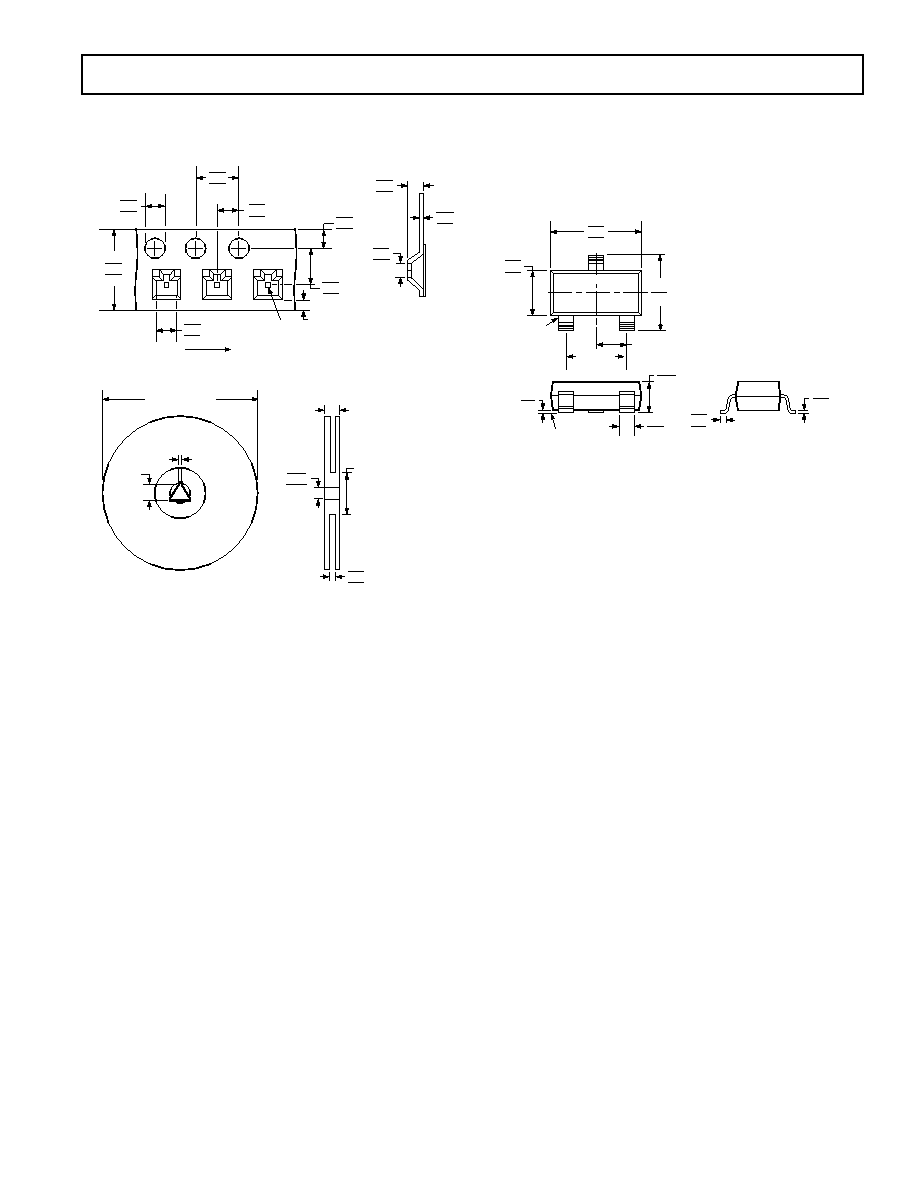

TAPE AND REEL DIMENSIONS
Dimensions shown in millimeters.
2.80
2.70
2.60
1.10
1.00
0.90
0.35
0.30
0.25
4.10
4.00
3.90
1.55
1.50
1.50
8.30
8.00
7.70
3.20
3.10
2.90
2.05
2.00
1.95
1.85
1.75
1.65
3.55
3.50
3.45
0.75 MIN
DIRECTION OF UNREELING
1.00 MIN
13.20
13.00
12.80
9.90
8.40
8.40
20.20
MIN
1.50 MIN
7" REEL 100.00
OR
13" REEL 330.00
7" REEL 50.00 MIN
OR
13" REEL 100.00 MIN
14.40 MAX
OUTLINE DIMENSIONS
3-Lead Small Outline Transistor Package [SOT-23-3]
(RT-3)
Dimensions shown in millimeters.
3.04
2.90
2.80
PIN 1
1.40
1.30
1.20
2.64
2.10
1.90 BSC
1
2
3
SEATING
PLANE
1.12
0.89
0.10
0.01
0.50
0.30
0.20
0.08
0.60
0.50
0.40
0.95 BSC
COMPLIANT TO JEDEC STANDARDS TO-236AB
