AD9444

Rev. 0 | Page 17 of 40

–120

–100

–80

–60

–40

–20

FREQUENCY (MHz)

SFDR: 102dBFS

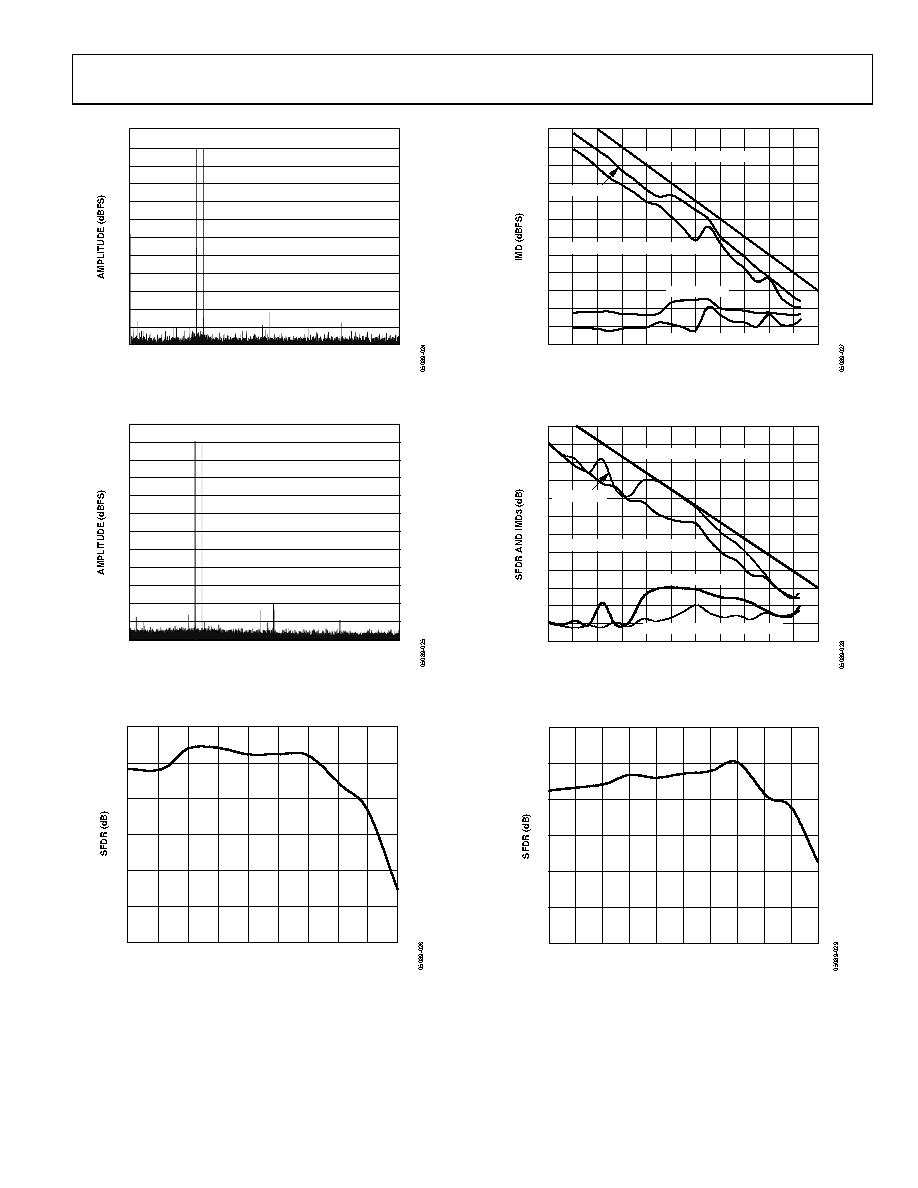

Figure 24. 32K Point Two-Tone FFT 80 MSPS/9.8 MHz/10.8 MHz

–120

–100

–80

–60

–40

–20

FREQUENCY (MHz)

–110

–90

–70

–50

–30

–10

SFDR: –100dBFS

Figure 25. 32K Point Two-Tone FFT 80 MSPS/69.3 MHz/70.3 MHz

100

110

SAMPLE RATE (MSPS)

Figure 26. SFDR vs. Sample Rate, VIN = 10.3 MHz @ −0.5 dBFS

–120

–100

–80

–60

–40

–20

–110

–90

–70

–50

–30

–10

–110 –100 –90

–80

–70

–60

–50

–40

–30

–20

–10

ANALOG INPUT LEVEL (dBFS)

WORST THIRD-ORDER IMD (dBFS)

SFDR (dBFS)

WORST THIRD-ORDER IMD (dBc)

90dBFS REFERENCE LINE

SFDR (dBc)

Figure 27. Two-Tone SFDR vs. Analog Input Level, AIN = 9.8 MHz/10.8 MHz

–120

–100

–80

–60

–40

–20

–110

–90

–70

–50

–30

–10

–110 –100 –90

–80

–70

–60

–50

–40

–30

–20

–10

ANALOG INPUT LEVEL (dBFS)

WORST THIRD-ORDER IMD (dBFS)

SFDR (dBFS)

WORST THIRD-ORDER IMD (dBc)

90dBFS REFERENCE LINE

SFDR (dBc)

Figure 28. Two-Tone SFDR vs. Analog Input Level, AIN = 69.3 MHz/70.3 MHz

100

110

SAMPLE RATE (MSPS)

Figure 29. SFDR vs. Sample Rate, VIN = 70.3 MHz @ −0.5 dBFS
