MODEL: HPP

HPP SPECIFICATIONS

ES-3461 Rev.9 Page 2/3

http://www.m-system.co.jp/

Timer: Limits ON time within 75 ±25 msec. for wider than

75 msec. pulses

Saturation voltage: 0.5 V DC

■ High Frequency Open Collector

50 V DC @ 100 mA (resistive load)

Maximum frequency: 10 kHz

Saturation voltage: 0.5 V DC

■ Voltage Pulse

Maximum frequency: 10 kHz

High level: Rating (5, 12 or 24 V) ±10 %

Low level: ≤ 0.5V

Load resistance:

≥ 250 Ω for 5 V

≥ 600 Ω for 12 V

≥ 1200 Ω for 24 V

■ Photo MOSFET Relay Pulse

Maximum frequency: 30 Hz

Timer: Limits ON time within 75 ±25 msec. for wider than

75 msec. pulses

Rating: 132 V AC @ 200 mA (cos ø = 1)

30 V DC @ 200 mA (resistive load)

ON resistance: ≤ 2 Ω

INSTALLATION

Current consumption: Approx. 80 mA

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Surface or DIN rail; Standard Rack Mounting

Frame BX-16H available

Weight: 180 g (0.40 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute

(input to output to power)

1500 V AC @ 1 minute (input or output or power to ground)

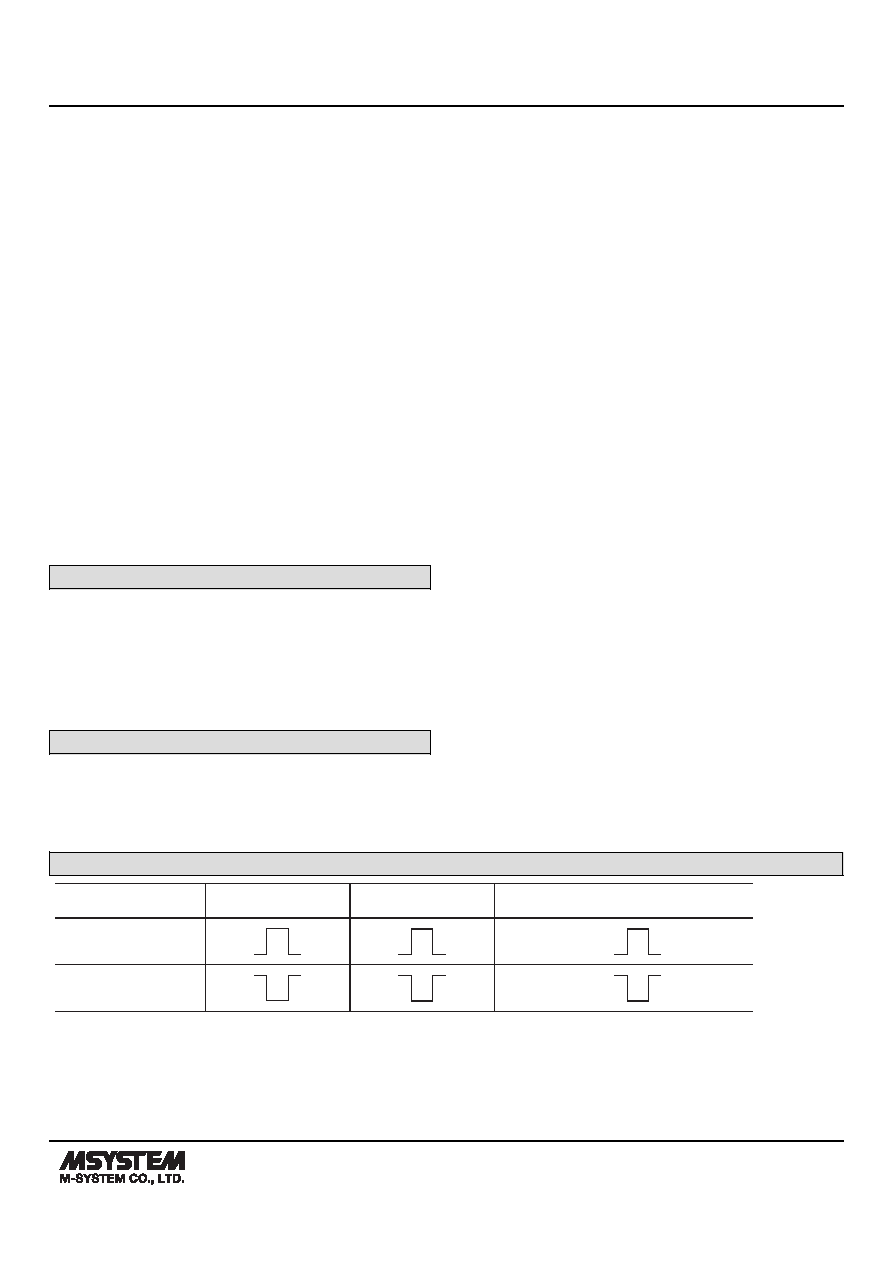

OUTPUT LOGIC

H

H

H

L

OFF

ON

OFF

OFF

ON

ON

L

L

INPUT TYPE

Voltage Pulse

Mechanical Contact

Open Collector

INPUT

VOLTAGE PULSE

OUTPUT

OPEN COLLECTOR or

PHOTO MOSFET RELAY PULSE OUTPUT
