MODEL: 47NLN

47NLN SPECIFICATIONS

ES-9563 Rev.4 Page 2/4

https://www.m-system.co.jp/

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)

Operating humidity: 10 to 90 %RH (non-condensing)

Mounting: Magnet or screw mounting

Weight: 75 g (2.6 oz)

PERFORMANCE

Accuracy

Display: ±0.1 % ± 1 digit

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

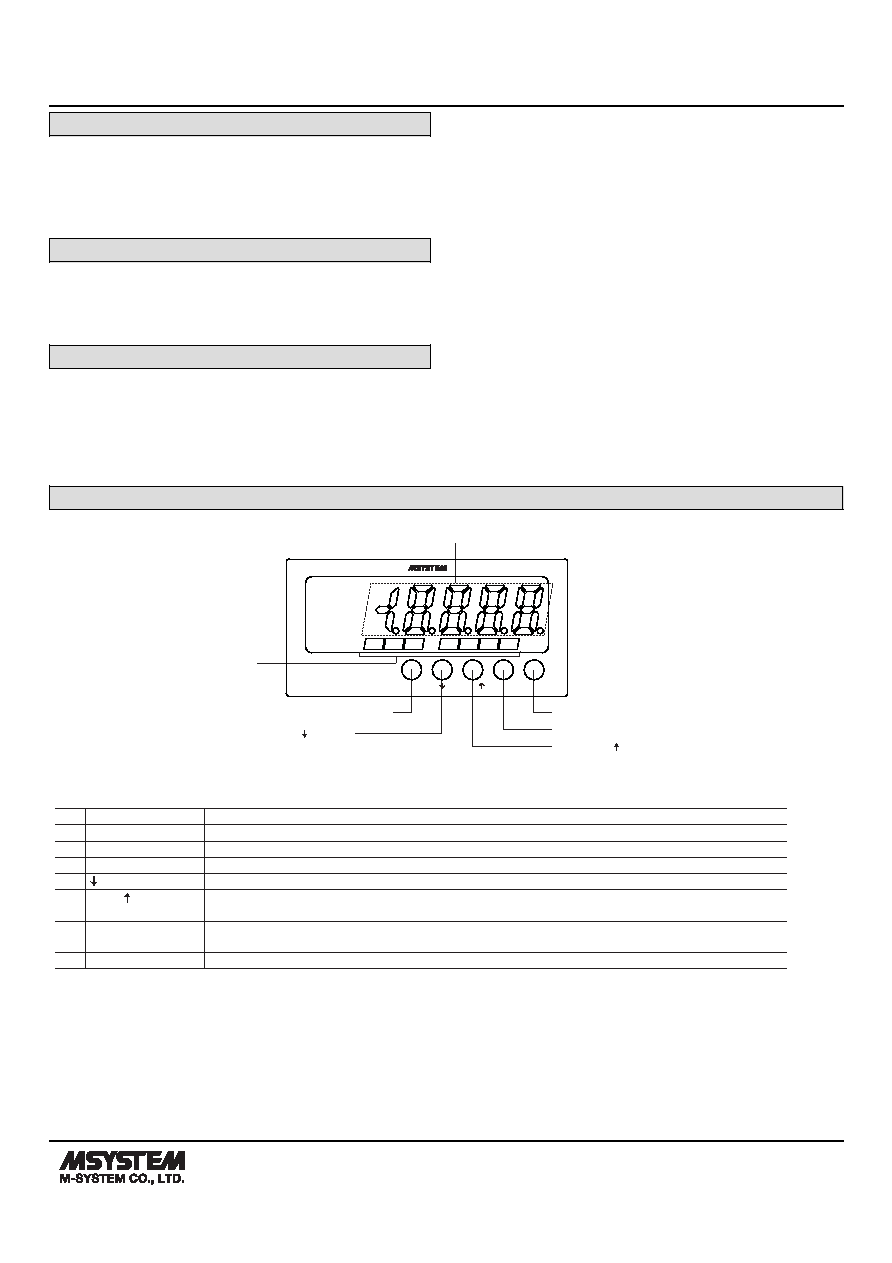

EXTERNAL VIEW

Max /Min

Scale /

Shift

Up

D/P

Spn

Zro

Tch

Max

Min

Fnc

(1) Main Display

(2) Function Indicators

(3) Max/Min Button

(4)

Button

(7) Up Button

(6) Shift Button

(5) Scale/

Button

■ COMPONENT IDENTIFICATION

No. COMPONENT

FUNCTION

(1) Main display

Indicates present values, setting values and status of the unit.

(2) Function indicators

Indicates the status in each setting mode.

(3) Max/Min button

Used to switch the main display to show the present values, maximum values or minimum values.

(4)

Button

Used to shift through setting items in each setting mode etc.

(5) Scale/

button

Used to move on to the scaling setting and other setting modes; or to shift through setting items in each set-

ting mode.

(6) Shift button

Used to move on to the setting standby status of each setting mode or to shift through display digits in each

setting item.

(7) Up button

Used to change setting values, to execute/cancel Forced Zero or to select setting values.

Note: Refer to the operating manual for details on each function.
