7 / 12 page

Data Sheet

ADRF5019

Rev. 0 | Page 7 of 12

TYPICAL PERFORMANCE CHARACTERICS

INSERTION LOSS, RETURN LOSS, AND ISOLATION

VDD = 3.3 V, VSS = −2.5 V, VCTRL and LS = 0 V or VDD, and TCASE = 25°C in a 50 Ω system, unless otherwise noted.

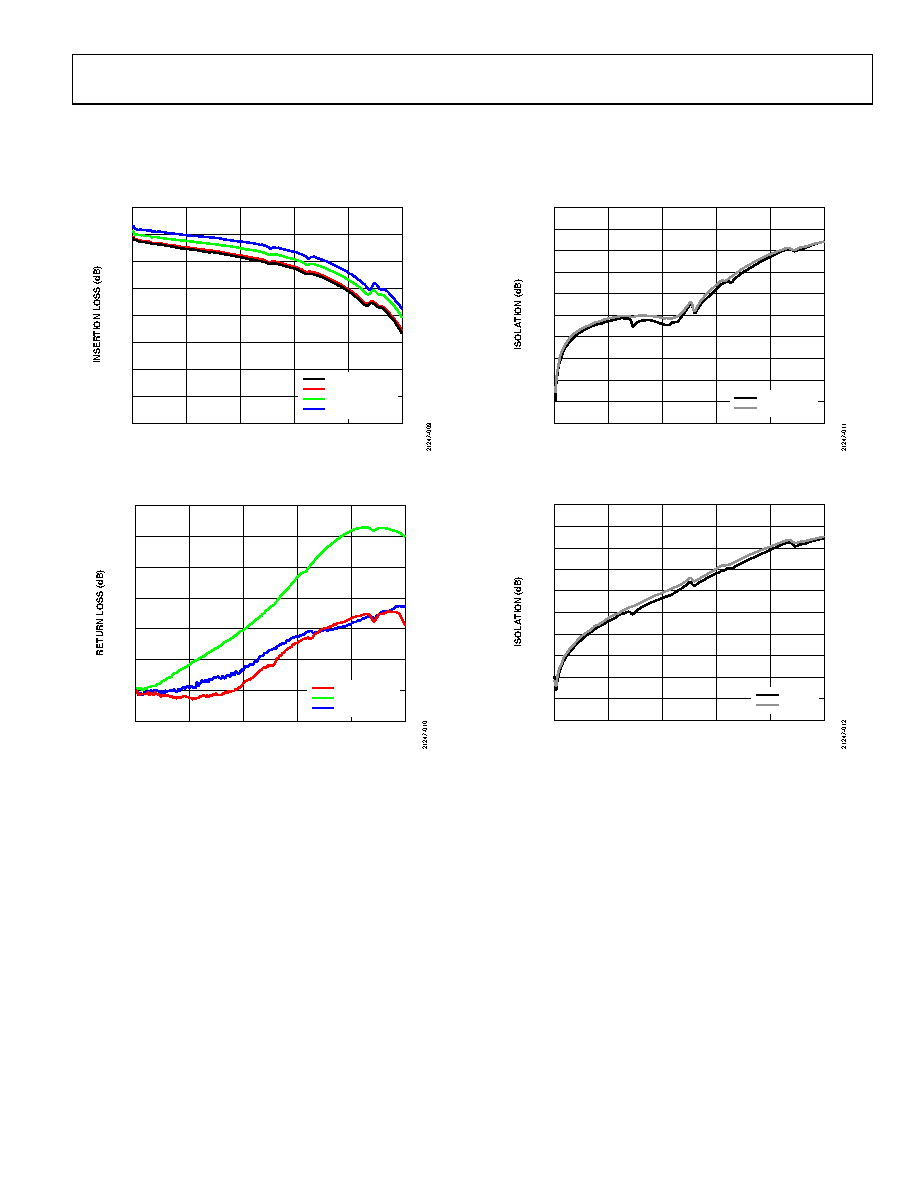

Figure 9. Insertion Loss vs. Frequency over Temperature

Figure 10. Return Loss vs. Frequency

Figure 11. Isolation Between RFC and RFx Ports vs. Frequency

Figure 12. Isolation Between RF1 and RF2 Ports vs. Frequency

–4.0

–3.5

–3.0

–2.5

–2.0

–1.5

–1.0

–0.5

FREQUENCY (GHz)

TCASE = –40°C

TCASE = +25°C

TCASE = +85°C

TCASE = +105°C

–35

–30

–25

–20

–15

–10

–5

FREQUENCY (GHz)

RFC

RF1, RF2 OFF

RF1, RF2 ON

–100

–90

–80

–70

–60

–50

–40

–30

–20

–10

FREQUENCY (GHz)

RFC TO RF2

RFC TO RF1

FREQUENCY (GHz)

RF2 ON

RF1 ON

–100

–90

–80

–70

–60

–50

–40

–30

–20

–10
