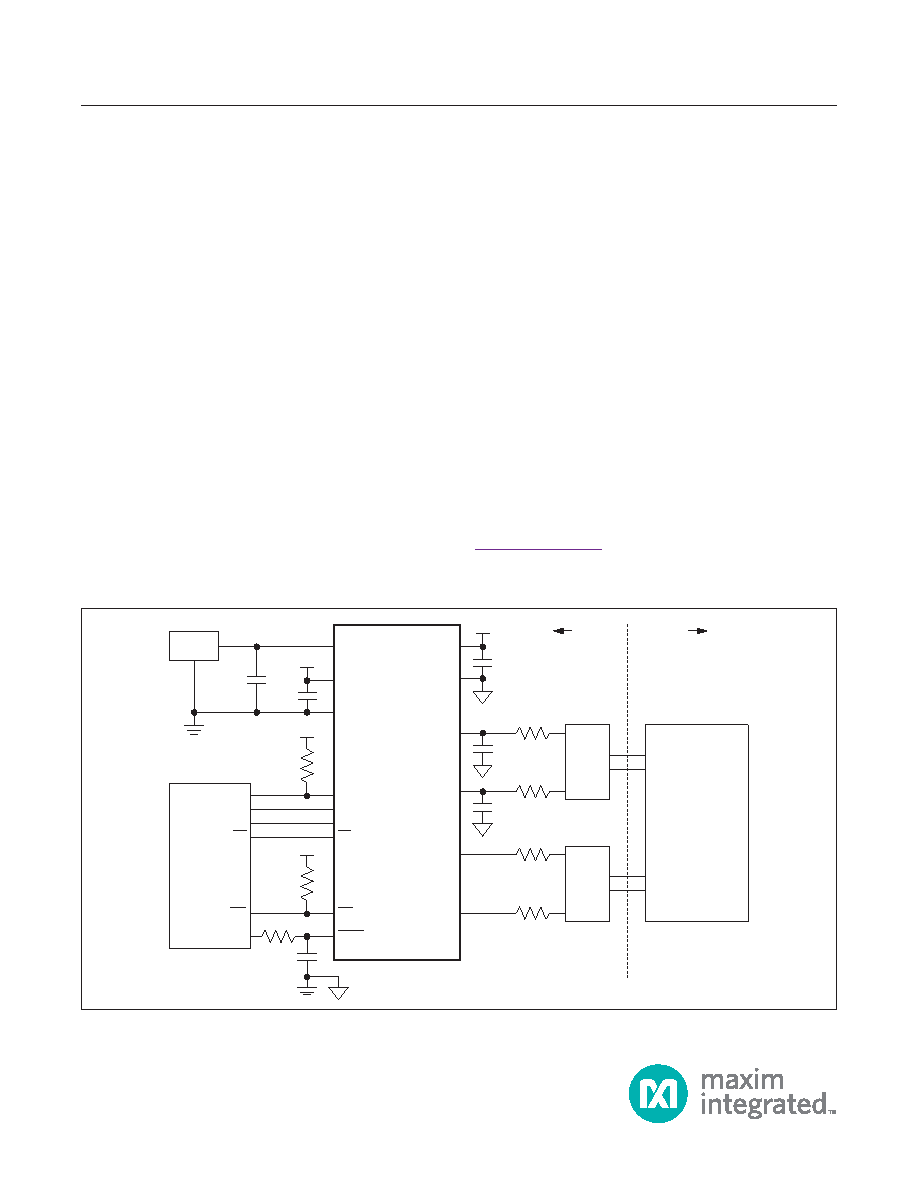

1 / 33 page  19-6790; Rev 2; 1/15 Ordering Information appears at end of data sheet. General Description The MAX17841B ASCI combines an SPI port with a universal asynchronous receiver transmitter (UART) specially designed to interface with Maxim battery management devices. The UART can be configured to automatically performManchesterencoding/decoding,messageframing, parity, wake-up, and keep-alive signaling as required for Maxim’s battery management UART protocol. The UART has programmable baud rates of 0.5Mbps, 1Mbps, or 2Mbps and supports either single-ended or differential signaling. For host efficiency, the UART contains a 28-byte transmit buffer and a 62-byte receive buffer with host-configurable interrupt events. Applications ● BatteryManagementSystems(BMS) ● ElectricandHybridVehicles(EV/HEV) ● EnergyStorageSystems(ESS) Benefits and Features ● SupportsMaxim’sBatteryManagementUART Protocol ● SPIInterfaceUpto4MHz ● UARTBaudRateProgrammableUpto2Mbps ● 3.3Vor5VOperation ● Ultra-LowQuiescentCurrent ● TransmitandReceiveBufferswithProgrammable InterruptsAllowforQueuingofUARTMessages ● ManchesterEncoderandDecoderReducesHost Controller Burden ● OperatingTemperatureRangefrom-40°Cto+105°C (AEC-Q100Type2) ● SupportsASILRequirements Simplified Operating Circuit VAA VCC VCC 1µF VAA 1µF 15pF ISOLATORS MAX17841B TXPL MAX178xx BATTERY MANAGEMENT DEVICE TXNL VDDL GNDL RXP 0.1µF DCIN AGND DOUT DIN SCLK VAA 5V DC SUPPLY 100kΩ MISO MOSI SCLK SS VCC 100kΩ 1.5kΩ 100Ω 0.01µF CS INT SHDN IRQ GPIO SYSTEM µP 15pF RXN 1.5kΩ RXPL RXNL TXP 47Ω TXN 47Ω SLAVE(S) MASTER MAX17841B Automotive SPI Communication Interface (ASCI) EVALUATION KIT AVAILABLE |
