Data Sheet

ADA4570

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. 0 | 6 of 14

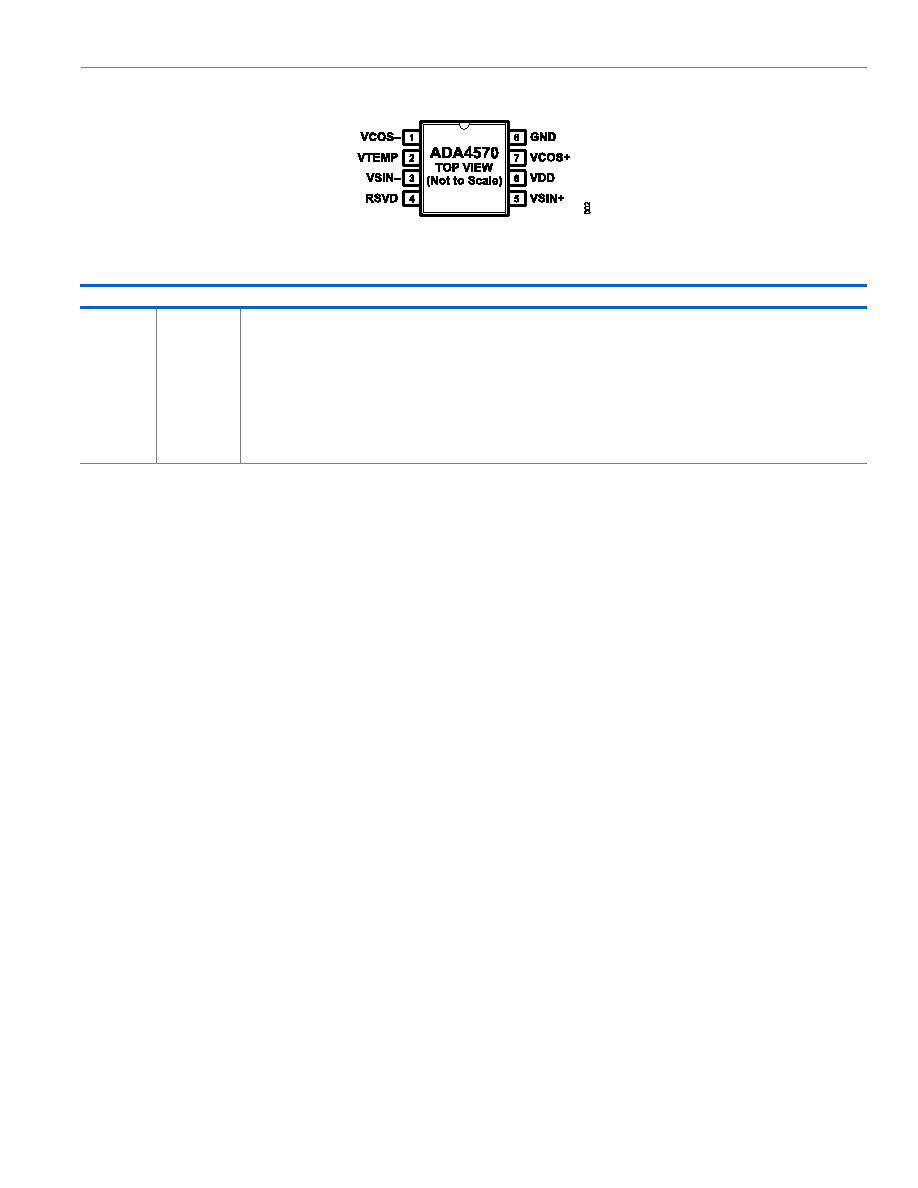

Figure 2. Pin Configuration

Table 5. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

VCOS−

Analog Negative Cosine Output.

2

VTEMP

Analog Temperature Output. The VTEMP pin must be left open when not in use.

3

VSIN−

Analog Negative Sine Output.

4

RSVD

Reserved. The RSVD pin must be connected to GND.

5

VSIN+

Analog Positive Sine Output.

6

VDD

Power Supply.

7

VCOS+

Analog Positive Cosine Output.

8

GND

Ground.
