MODEL: R8-PS1

http://www.m-system.co.jp/

R8-PS1 SPECIFICATIONS

ES-9789 Rev.4 Page 2/3

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581

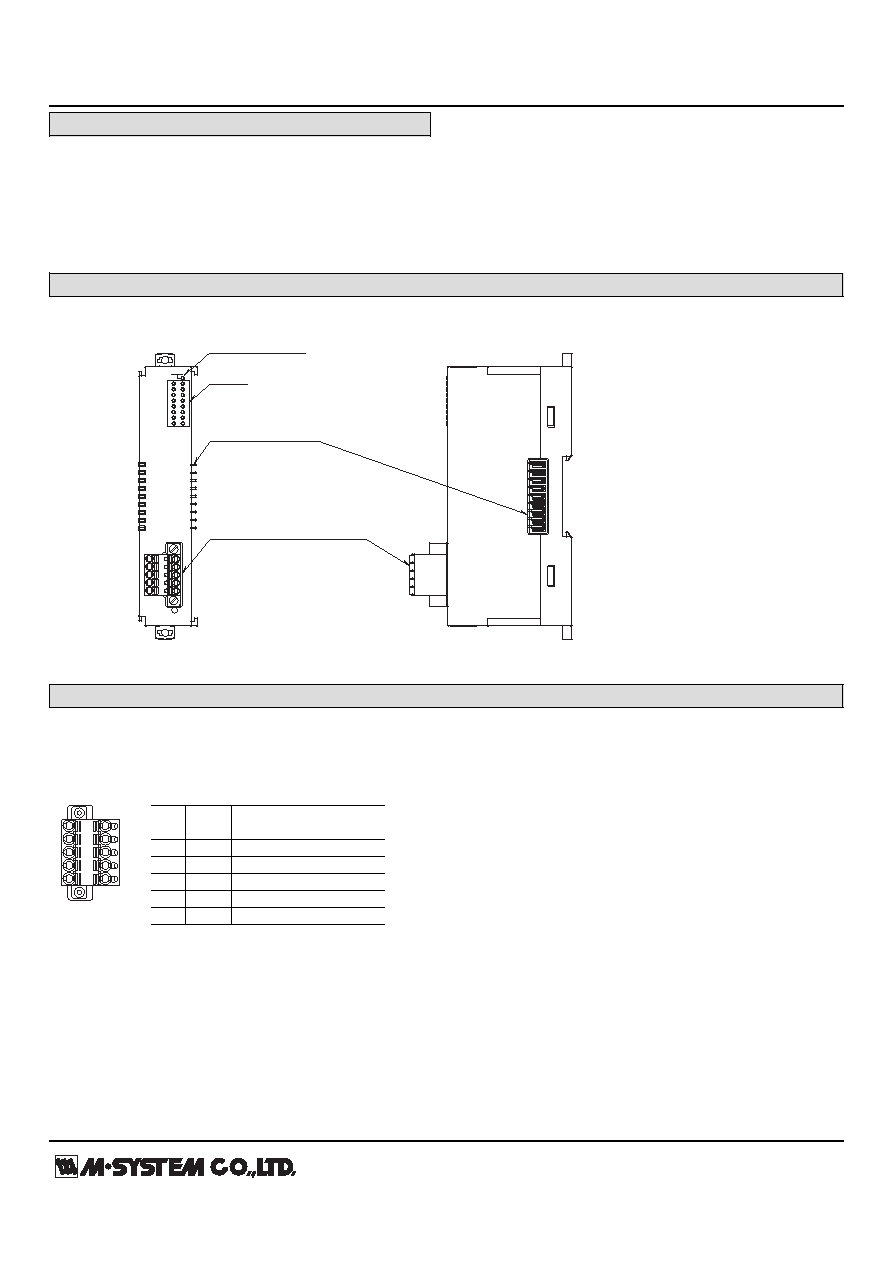

EXTERNAL VIEW

■ FRONT VIEW

■ SIDE VIEW

Internal Bus Connector

Connector for Power Supply and

Excitation Supply

Power indicator LED

Unused

24V

0V

+

-

FE1

Power

CONNECTION DIAGRAMS

PIN

ID

FUNCTION

No.

1

24V

Power supply 24V DC

2

0V

Power supply 0V DC

3

+

Excitation supply 24V DC

4

−

Excitation supply 0V DC

5

FE1

Grounding

1

2

3

4

5

Note: The numbers marked on the connector have no relationship to the pin number of the unit.

Wire according to the instruction manual of the unit.

■ POWER SUPPLY, EXCITATION SUPPLY CONNECTOR ASSIGNMENT

Printed-circuit board connector (Phoenix Contact)

Unit side connector: MC1,5/5-GF-3,5

Cable side connector: TFMC1,5/5-STF-3,5
