MODEL: R8-NC3

R8-NC3 SPECIFICATIONS

ES-9726 Rev.5 Page 2/5

http://www.m-system.co.jp/

operational current.)

Operating temperature: 0 to 55°C (32 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Atmosphere: No corrosive gas or heavy dust

Mounting: DIN rail

Weight: 180 g (0.40 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute

(CC-Link to internal bus or internal power or power input to

exc. supply to FE1)

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581

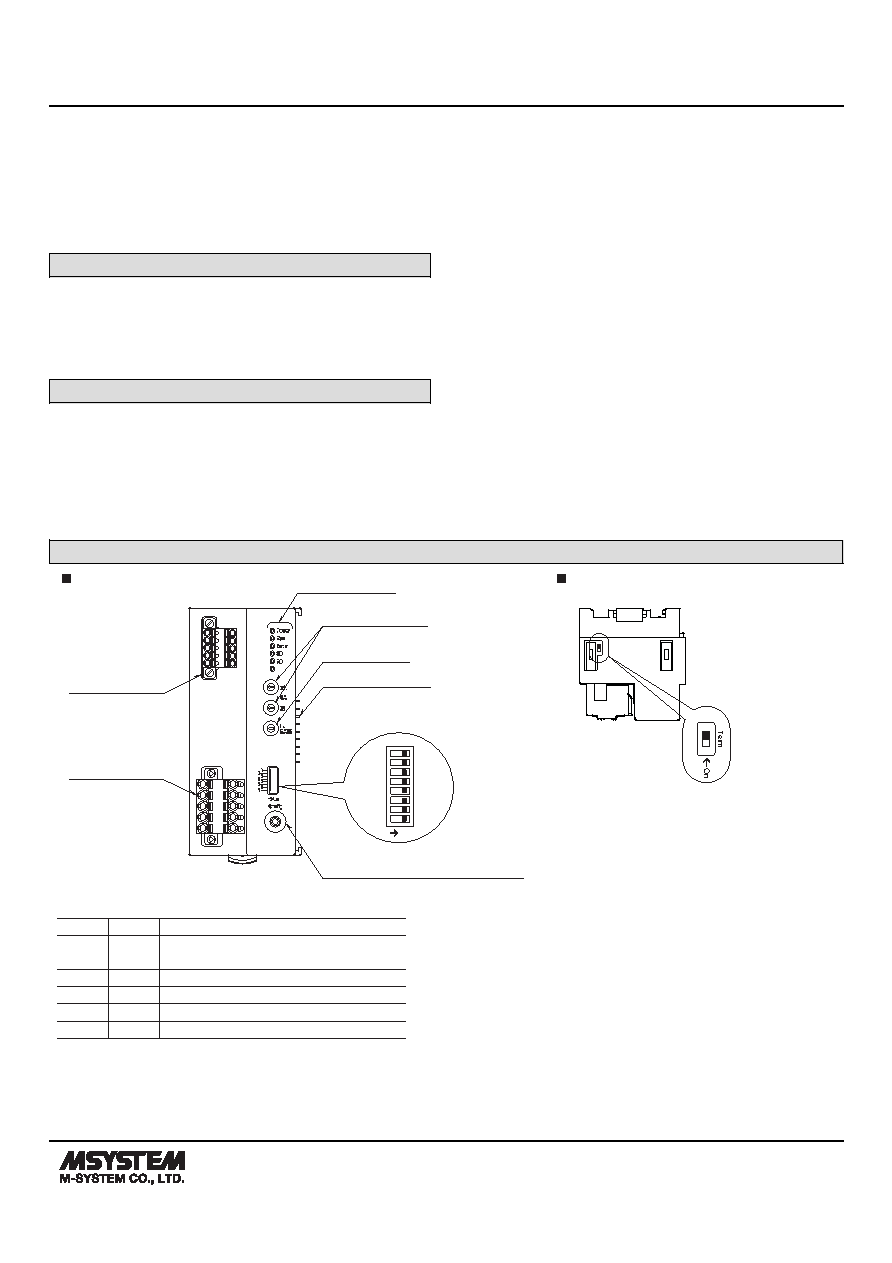

EXTERNAL VIEW

FE

SLD

DB

DG

DA

Status Indicator LED

Miniature Jack Connector for Configuration

CC-Link Connector

Connector for

Power Supply and

Excitation Supply

Function Setting

DIP SW

8

7

6

5

4

3

2

1

FRONT VIEW

TOP VIEW

On

Terminator

DIP SW

Baud Rate Setting

Rotary SW

Station Address Setting

Rotary SW

Internal Bus Connector

■ STATUS INDICATOR LED

ID

COLOR

FUNCTION

Power

Green

ON when the internal 5V power is in normal

status.

Run

Green

Error

Red

ON when abnormal data is received.

SD

Green

ON with data transmitting

RD

Green

ON with data receiving

*1. Run LED turns off when no command is received from

the master device.
