MODEL: RZMS-U9

RZMS-U9 SPECIFICATIONS

ES-7605 Rev.13 Page 12/12

http://www.m-system.co.jp/

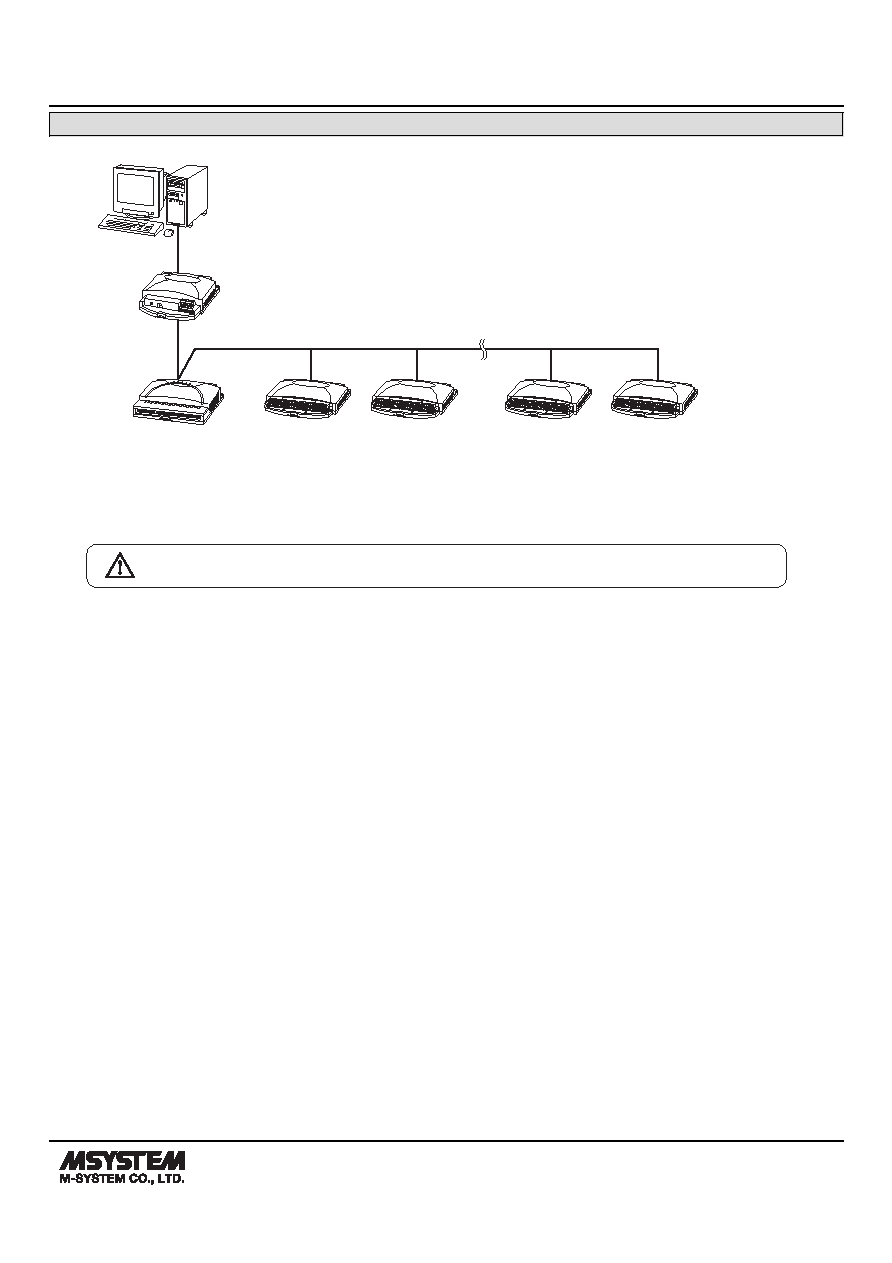

SYSTEM CONFIGURATION EXAMPLES

RS-232-C

Straight Cable

RS-232-C/RS-485

Converter

(model: R2K-1)

RS-485

Universal Inputs

(model: RZMS-U9)

Contact Inputs

(model: R1M-A1)

Contact Outputs

(model: R1M-D1)

DC/TC Inputs

(model: R1M-GH)

DC/TC Inputs

(model: R1MS-GH3)

When the cable distance between the PC and the I/O modules is long,

insert an RS-232-C/RS-485 Converter for isolation.

Specifications are subject to change without notice.
