ø 3.2

ø 4

X H7

X H7

ø 63

∼ 72

7

32.5

56

61

X H7

30.5

38.5

44.5

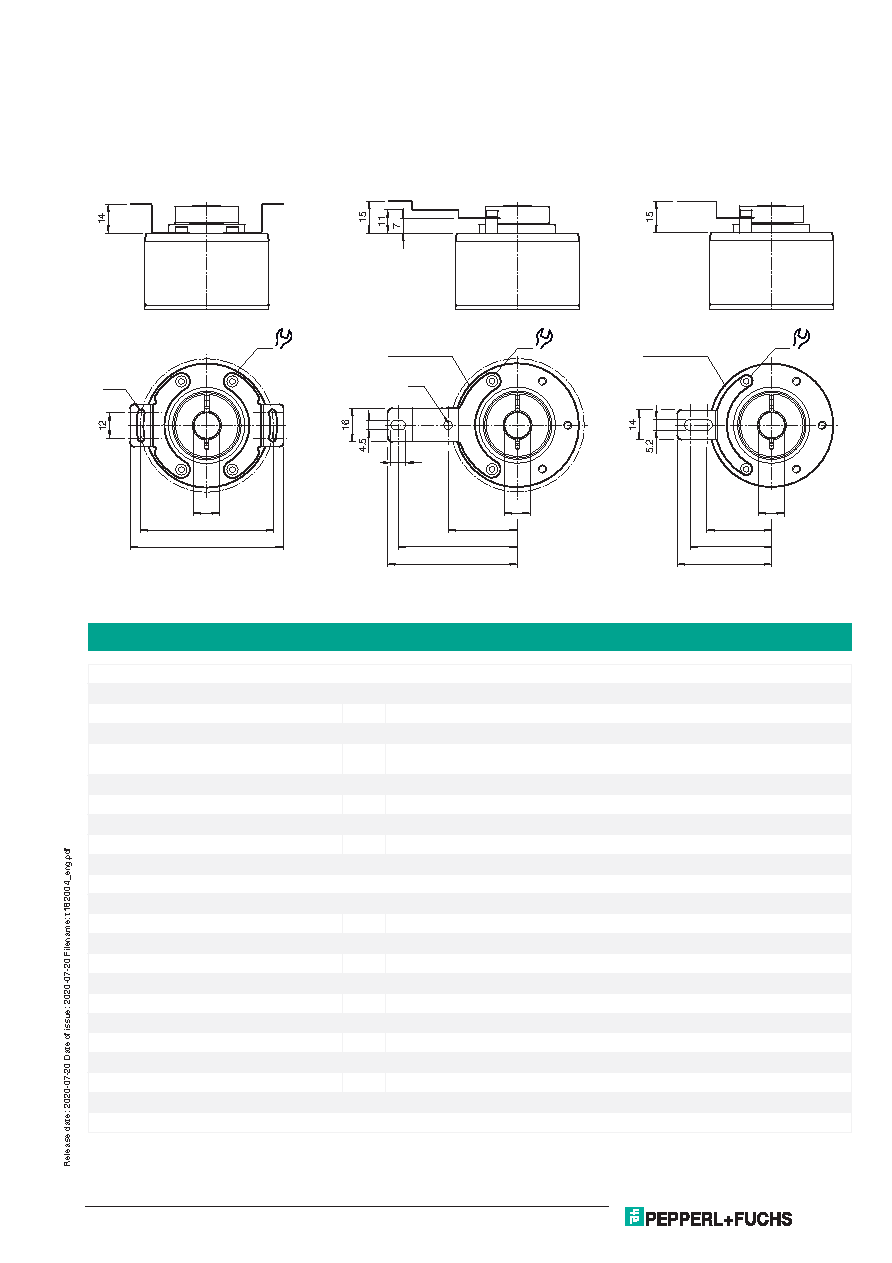

DA

BA

JA

DA / BA / JA

2.5

2.5

2.5

Spring plates

Spring plate

mountable

in 60° steps

Spring plate

mountabble

in 60° steps

for more accurate measuring tasks

for standard application

for confined installation space

Technical Data

General specifications

Detection type

photoelectric sampling

Linearity error

± 0.025 °

Pulse count

max. 5000

UL File Number

E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the

product.

Functional safety related parameters

140 a

20 a

15 E+9 at 6000 rpm

Diagnostic Coverage (DC)

0 %

Electrical specifications

Operating voltage

4.75 ... 30 V DC

No-load supply current

max. 50 mA

Output

Output type

push-pull or RS422 (universal output driver, output level depending on input voltage)

Load current

max. per channel 40 mA , short-circuit protected, reverse polarity protected

Output frequency

max. 400 kHz

Rise time

300 ns

Phase position A to B

Pulse counts < 3600

90 ° ± 9 ° electrical

Pulse counts ≥ 3600

90 ° ± 15 ° electrical

Duty cycle

1/2 ± 10 %

Connection

Incremental rotary encoder

ENI58IL-R

3
