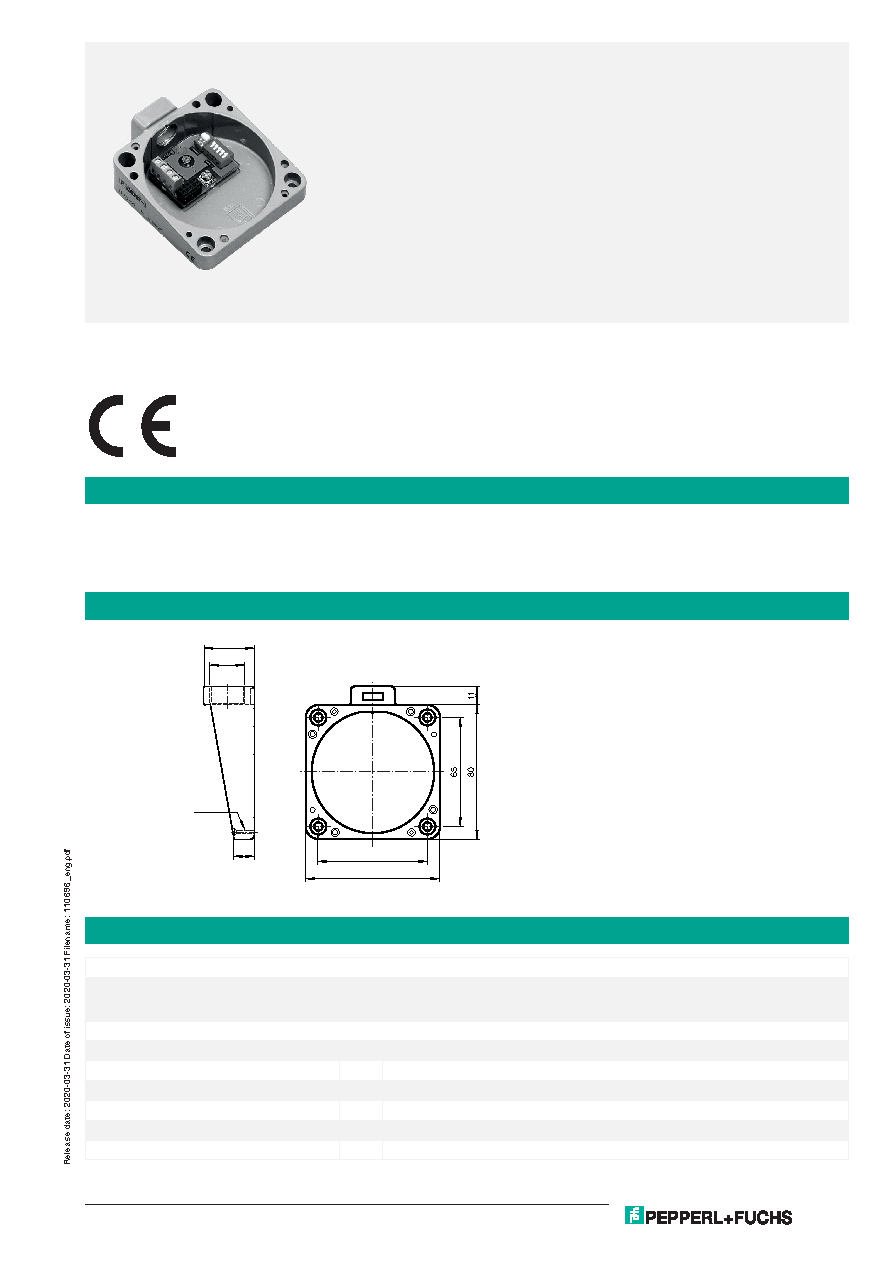

Base for read/write station

U-P3-R4

Base with addressable serial Interface RS 485

Function

The base is used in combination with an upper part, the IPT*-FP read/write station. An addressable RS 485 interface is available. It is thus

possible to create a simple bus connection with up to 30 subscribers.

The address is set and the terminating resistor for the bus is connected via DIP switches.

The read/write station is connected to a higher-order control system via the serial interface and receives the commands for writing and/or reading

code or data carriers via this interface.

Dimensions

ø5.3

80

65

16

30

M20 x 1.5

Technical Data

Indicators/operating means

DIP switch

Setting the station address

bus connection

ON = active OFF = non-active

Electrical specifications

Rated operating voltage

Power consumption

max. 4 W with read/write head IPT*-FP

Galvanic isolation

Operating voltage/interface

Interface

Physical

RS-485, addressable , up to 30 bases , address 1 ... 30
