Data Sheet
ADP2450
Rev. B | Page 13 of 40
8.00
7.75
–40
120
TEMPERATURE (°C)
–20
0
20
40
60
80
100
7.80
7.85
7.90
7.95

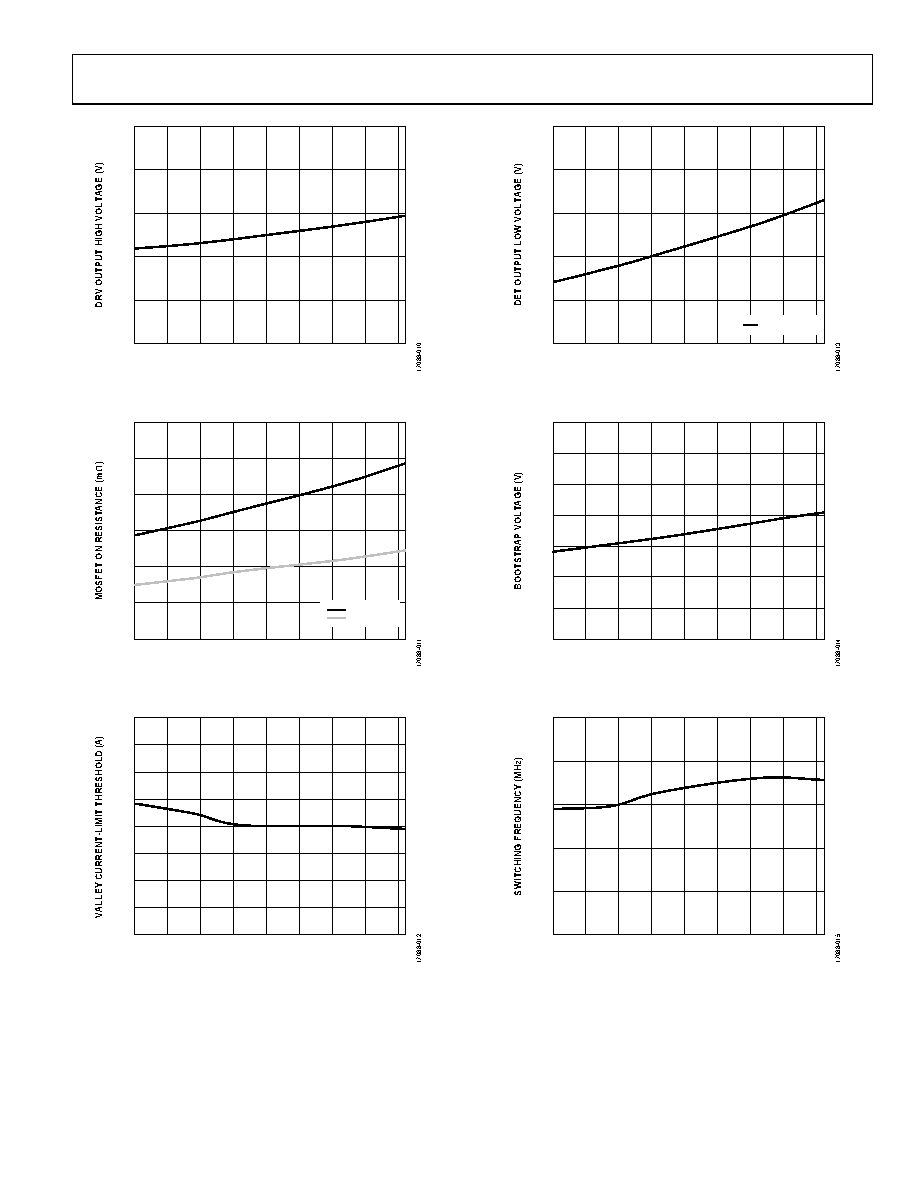

Figure 11. DRV Output High Voltage vs. Temperature
1200
0
–40
120
TEMPERATURE (°C)
–20
0
20
40
60
80
100
HIGH SIDE
LOW SIDE
200
400
600
800
1000
Figure 12. MOSFET On Resistance vs. Temperature
–40
120
TEMPERATURE (°C)
–20
0
20
40
60
80
100
1.00
0.60
0.65
0.70
0.75
0.80
0.85
0.90
0.95
Figure 13. Valley Current-Limit Threshold vs. Temperature
0.6
0.1
–40
120
TEMPERATURE (°C)
–20
0
20
40
60
80
100
0.2
0.3
0.4
0.5
IDET = 20mA
Figure 14. DET Output Low Voltage vs. Temperature
4.98
4.91
4.92
4.93
4.94
4.95
4.96
4.97
–40
120
TEMPERATURE (°C)
–20
0
20
40
60
80
100
Figure 15. Bootstrap Voltage vs. Temperature
1.25
1.15
–40
120
TEMPERATURE (°C)
–20
0
20
40
60
80
100
1.17
1.19
1.21
1.23
Figure 16. Switching Frequency vs. Temperature
