10
MN1380 Series
Microcomputer Peripheral LSIs

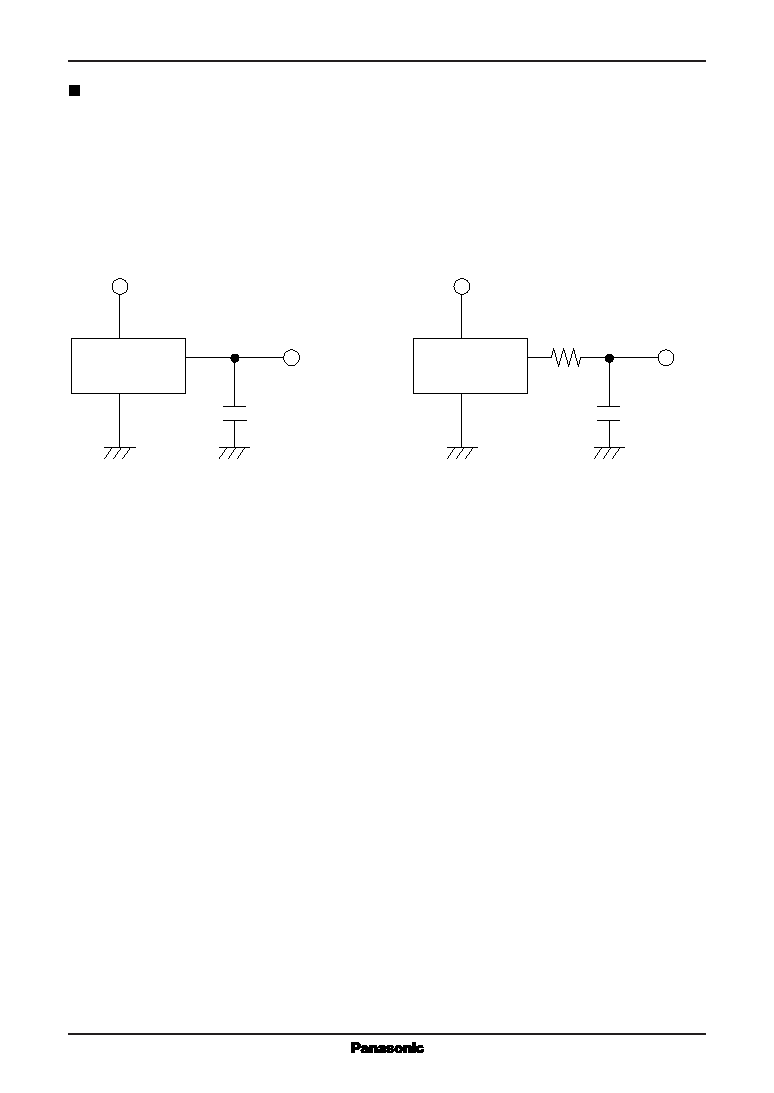

Application Circuit Example
Connect resistors, capacitors, and the like only to the output pin on the MN1380 series element. Note that connect-
ing them to the Power source pins changes VDH, VDL, and ∆VD.
Sample Circuit 1
Sample Circuit 2
Select the values of R and C to match the application.
VDD
OUT
C
MN1380
Series
VDD
OUT
C
MN1380
Series
R
