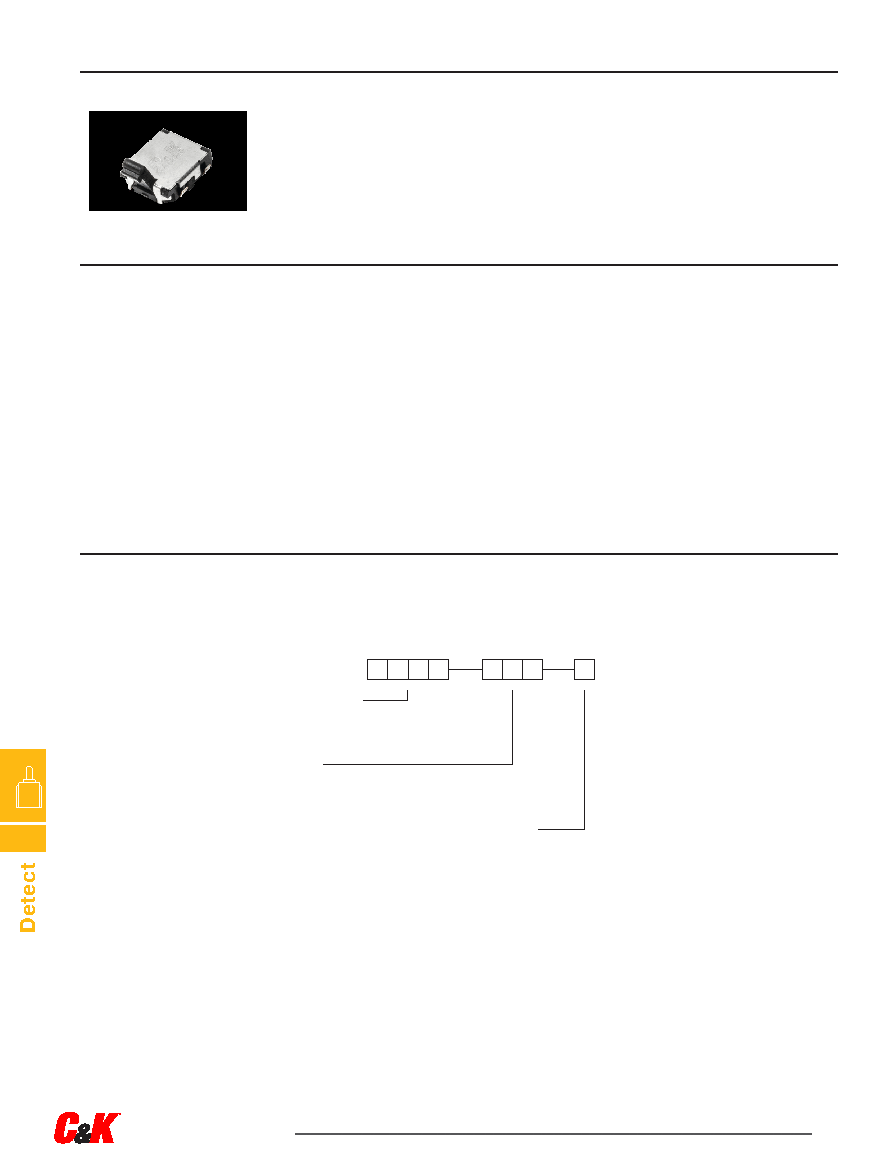

FDSE Series

Micro Mini Angled Actuated Detect Switches

Features/Benefits

• Extremely small package size

• Angled Actuation

• Flat or Bending Terminations

• Long Travel Type

• RoHS Compatible and Compliant

Typical Applications

• Consumer electronics

• Medical devices

• Safety control devices

Specifications

CONTACT RATING: 100 µA @ 3VDC, 1 mA @ 5 VDC

MECHANICAL & ELECTRICAL LIFE: 50,000 operations

CONTACT RESISTANCE: 3 Ω max

INSULATION RESISTANCE: 100M Ω min 100 VDC

DIELECTRIC STRENGTH: 100VAC @ 1 minute

OPERATING TEMPERATURE: –40ºC to +85ºC

OPERATING FORCE: 35 gf max.

TRAVEL: 3.14 mm or 60°

SOLDERABILITY: According to lead free solder profiles

PACKAGING: 2,000 pieces per reel.

Materials

BASE: PA9T

COVER: C7701R

ACTUATOR: PA 46

MOVABLE CONTACT: Beryllium Copper

TERMINALS: Phosphor Bronze, Ag over Ni Plating

Build-A-Switch

Complete part numbers for FDSE Series are shown below.

Series

FDSE SPST N.C.

Actuator

001 Angled Actuated Detect Switch Bended Terminal

002 Angled Actuated Detect Switch Flat Terminal

Package

R Tape & Reel

F D S E

R
