FT800 Embedded Video Engine Datasheet
Version 1.4
Document No.: BRT_000039 Clearance No.: BRT#001
8 Package Parameters
The FT800 is available in VQFN-48 package. The solder reflow profile for all packages is described in
following sections.
8.1 VQFN-48 Package Dimensions

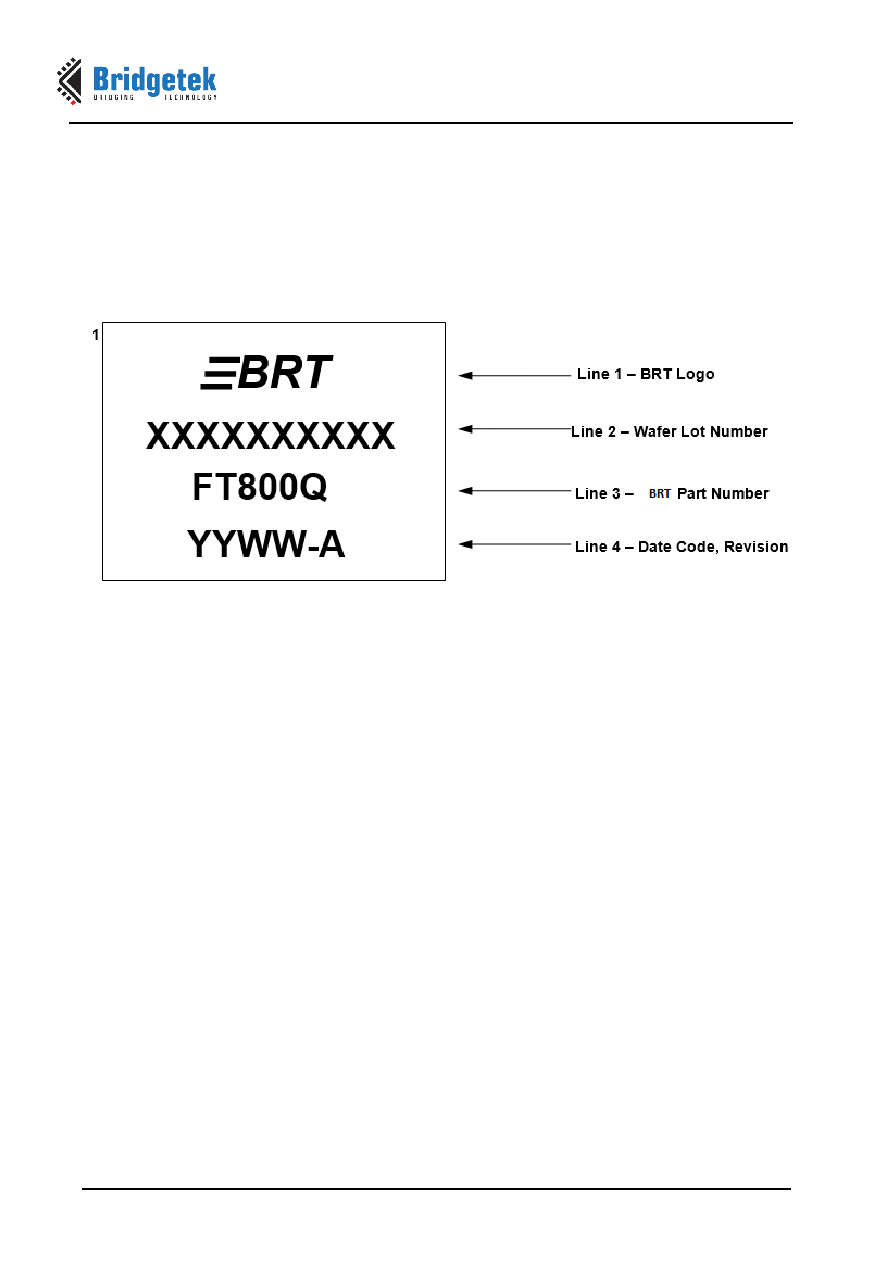

8.1.1 Top Side
Notes:
1. YYWW = Date Code, where YY is year and WW is week number
2. Pre-date code 1727 company logo was FTDI
3. Marking alignment should be centre justified
4. Laser Marking should be used
8.1.2 Bottom Side
No markings should be placed on the bottom side.
