M95128-R Datasheet(PDF) 32 Page - STMicroelectronics

No. de pieza M95128-R
Descripción Electrónicos  128-Kbit serial SPI bus EEPROM with high-speed clock
PDF  48 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  STMICROELECTRONICS [STMicroelectronics]
Página de inicio  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

M95128-R Datasheet(HTML) 32 Page - STMicroelectronics

Back Button M95128-R Datasheet HTML 28Page - STMicroelectronics M95128-R Datasheet HTML 29Page - STMicroelectronics M95128-R Datasheet HTML 30Page - STMicroelectronics M95128-R Datasheet HTML 31Page - STMicroelectronics M95128-R Datasheet HTML 32Page - STMicroelectronics M95128-R Datasheet HTML 33Page - STMicroelectronics M95128-R Datasheet HTML 34Page - STMicroelectronics M95128-R Datasheet HTML 35Page - STMicroelectronics M95128-R Datasheet HTML 36Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 32 / 48 page
background image

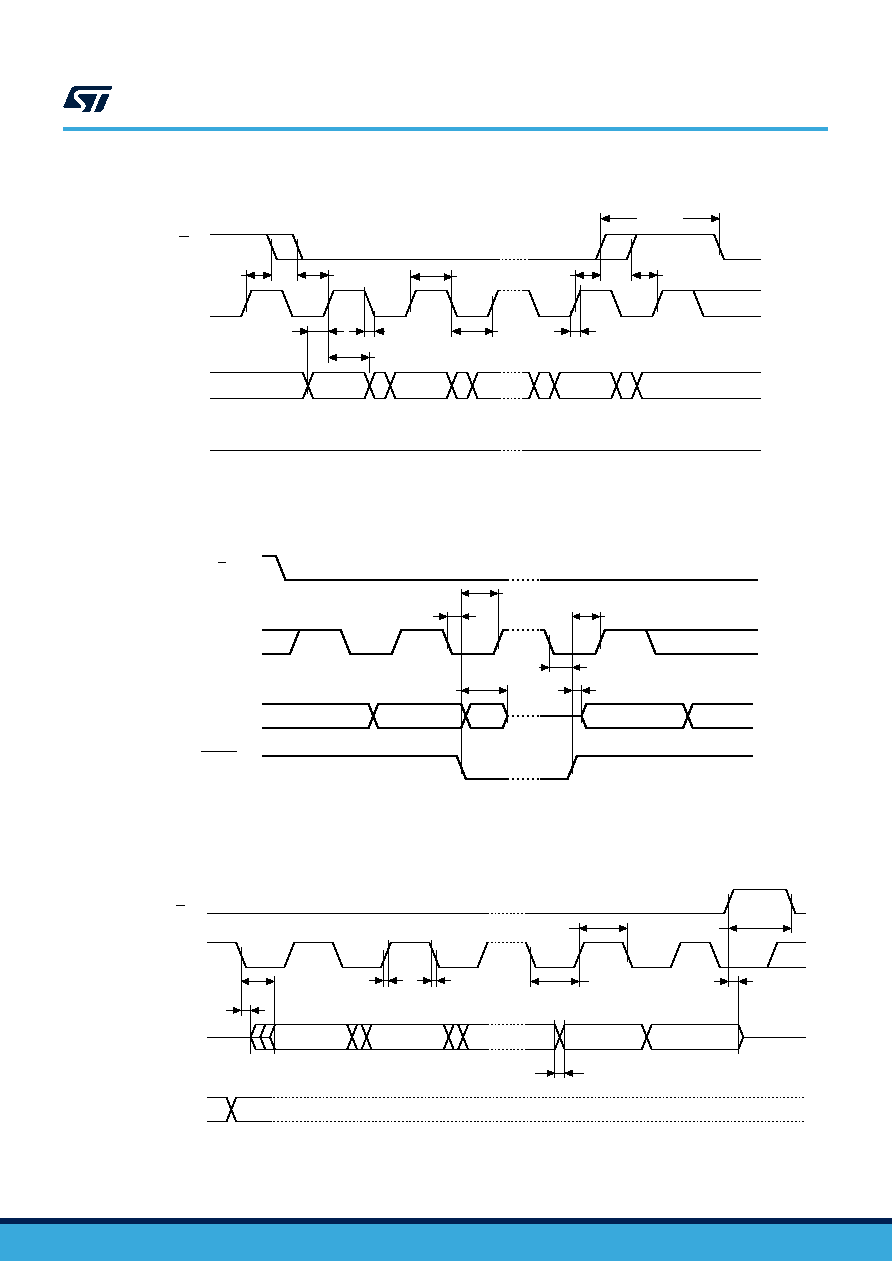

Figure 20. Serial input timing
C
D
S
MSB IN
Q
tDVCH
High impedance
LSB IN
tSLCH
tCHDX
tCLCH
tSHCH
tSHSL
tCHSH
tCHSL
tCH
tCL
tCHCL
Figure 21. Hold timing
C
Q
tCLHL
tHLCH
tHHCH
tCLHH
tHHQV
tHLQZ
S
HOLD
Figure 22. Serial output timing
C
Q
D
ADDR
LSB IN
tSHQZ
tCH
tCL
tQLQH
tQHQL
tCHCL
tCLQX
tCLQV
tSHSL
tCLCH
S
M95128-W M95128-R M95128-DF
DC and AC parameters
DS1356 - Rev 20
page 32/48
