ADM1176

Rev. 0 | Page 24 of 24

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-187-BA

0.23

0.08

0.80

0.60

0.40

8°

0°

0.15

0.05

0.33

0.17

0.95

0.85

0.75

SEATING

PLANE

1.10 MAX

0.50 BSC

PIN 1

COPLANARITY

0.10

3.10

3.00

2.90

3.10

3.00

2.90

5.15

4.90

4.65

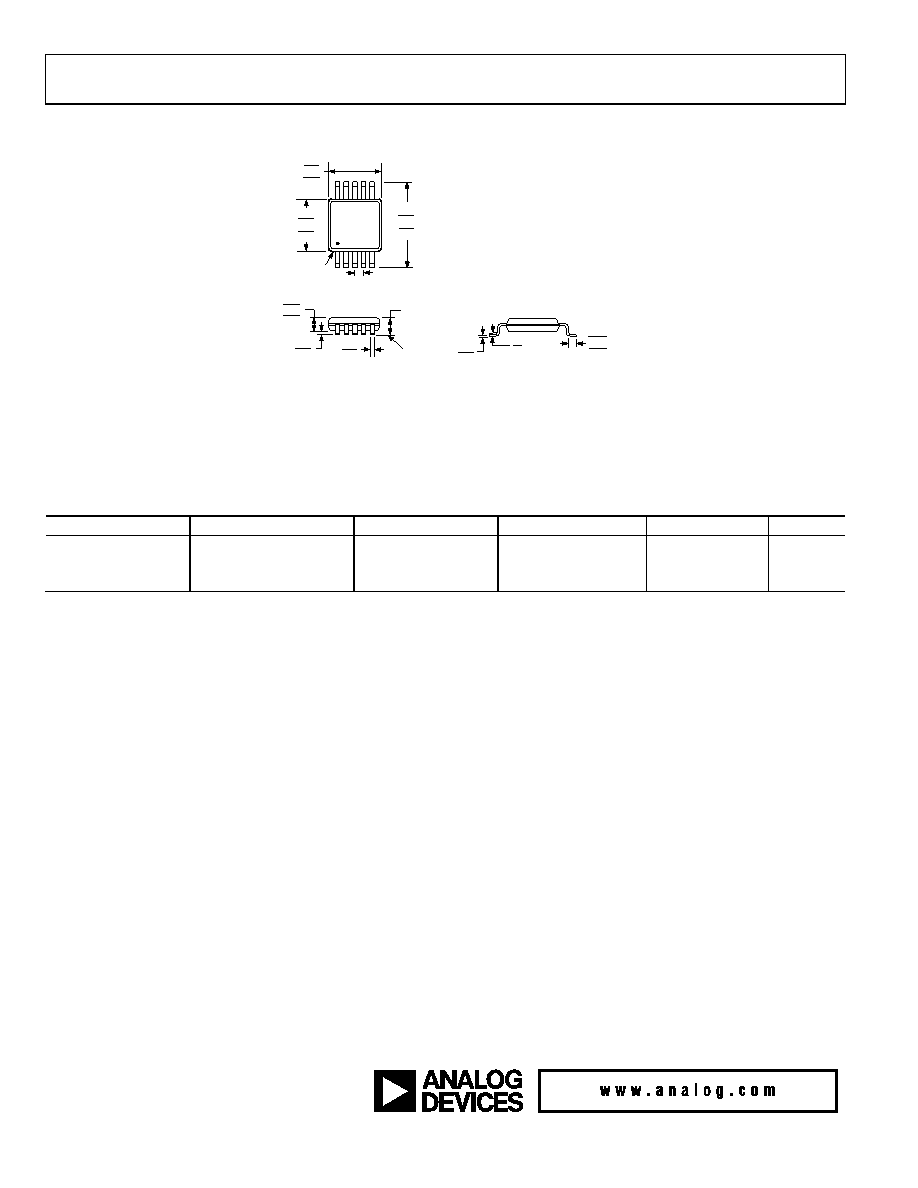

Figure 47. 10-Lead Mini Small Outline Package [MSOP]

(RM-10)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Hot Swap Retry Option

Temperature Range

Package Description

Package Option

Branding

ADM1176-1ARMZ-R71

Automatic Retry Version

−40°C to +85°C

10-Lead MSOP

RM-10

M5U

ADM1176-2ARMZ-R71

Latched Off Version

−40°C to +85°C

10-Lead MSOP

RM-10

M5V

EVAL-ADM1176EBZ1

Evaluation Board

1 Z = Pb-free part.

Purchase of licensed I2C components of Analog Devices or one of its sublicensed Associated Companies conveys a license for the purchaser under the Philips I2C Patent

Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard Specification as defined by Philips.

registered trademarks are the property of their respective owners.

D06046-0-9/06(0)
