Specification
NET2272 USB Peripheral Controller
______________________________________________________________________________
 NetChip Technology, Inc., 2003
Patent Pending
335 Pioneer Way, Mountain View, California 94041
TEL (650) 526-1490
FAX (650) 526-1494
http://www.netchip.com
Rev 1.2, October 15, 2003
19
2.5

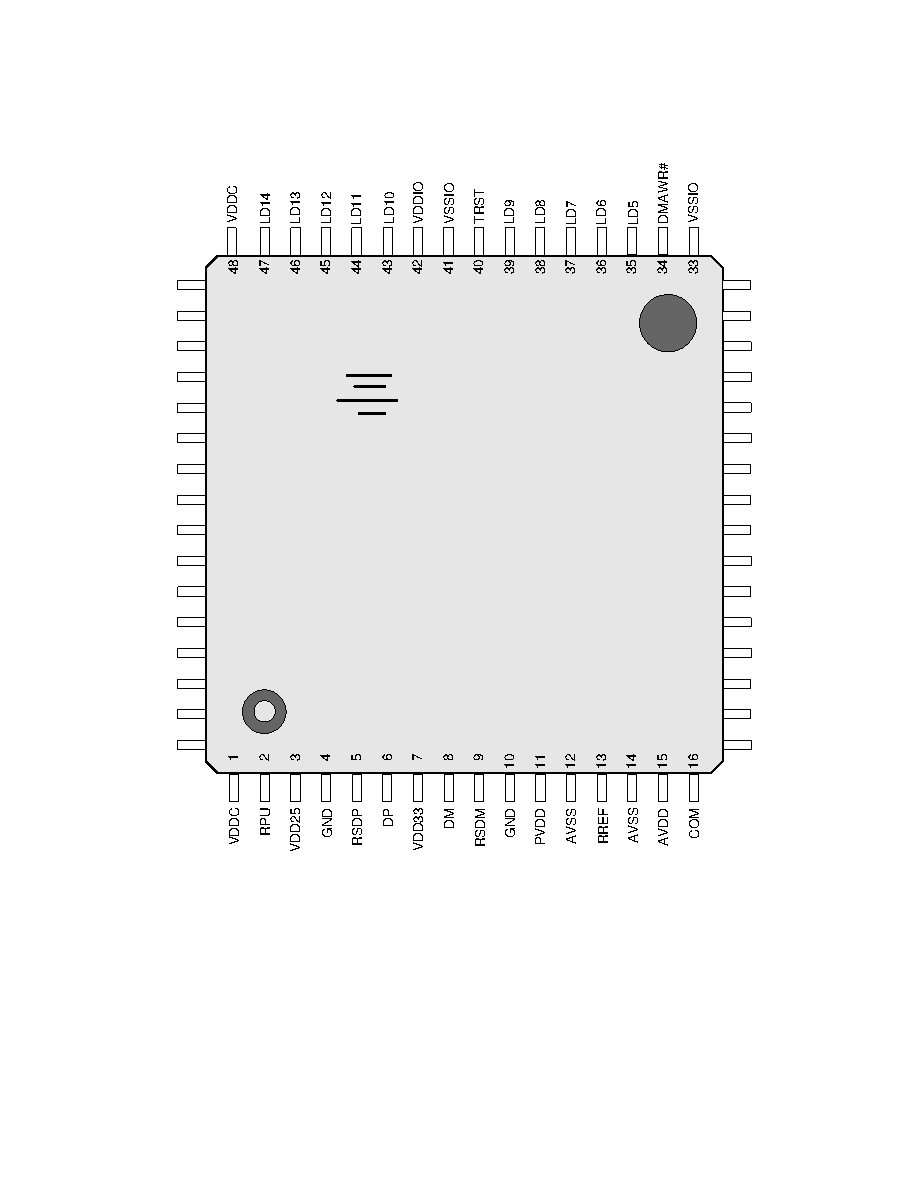

Physical Pin Assignment
NetChip
NET2272
XXXXXXX
REVx
17
32
49
64
50
51
52
53
54
55
56
57
58
59
60
61
62
63
18
19
20
21
22
23
24
25
26
27
28
29
30
31
TEST
LD0
LD1
LD2
LD3
LD4
VSSC
XIN
XOUT
VDDIO
LA4
LA3
LA2
LA1
LA0
TMC2
LD15
DMARD#
DACK
EOT
ALE
VSSIO
VDDIO
VSSC
LCLKO
RESET#
IOR#
IOW#
CS#
DREQ
IRQ#
VBUS
Note: This drawing is for informational purposes only. Please contact NetChip for additional chip marking, PCB
layout and manufacturing information.
