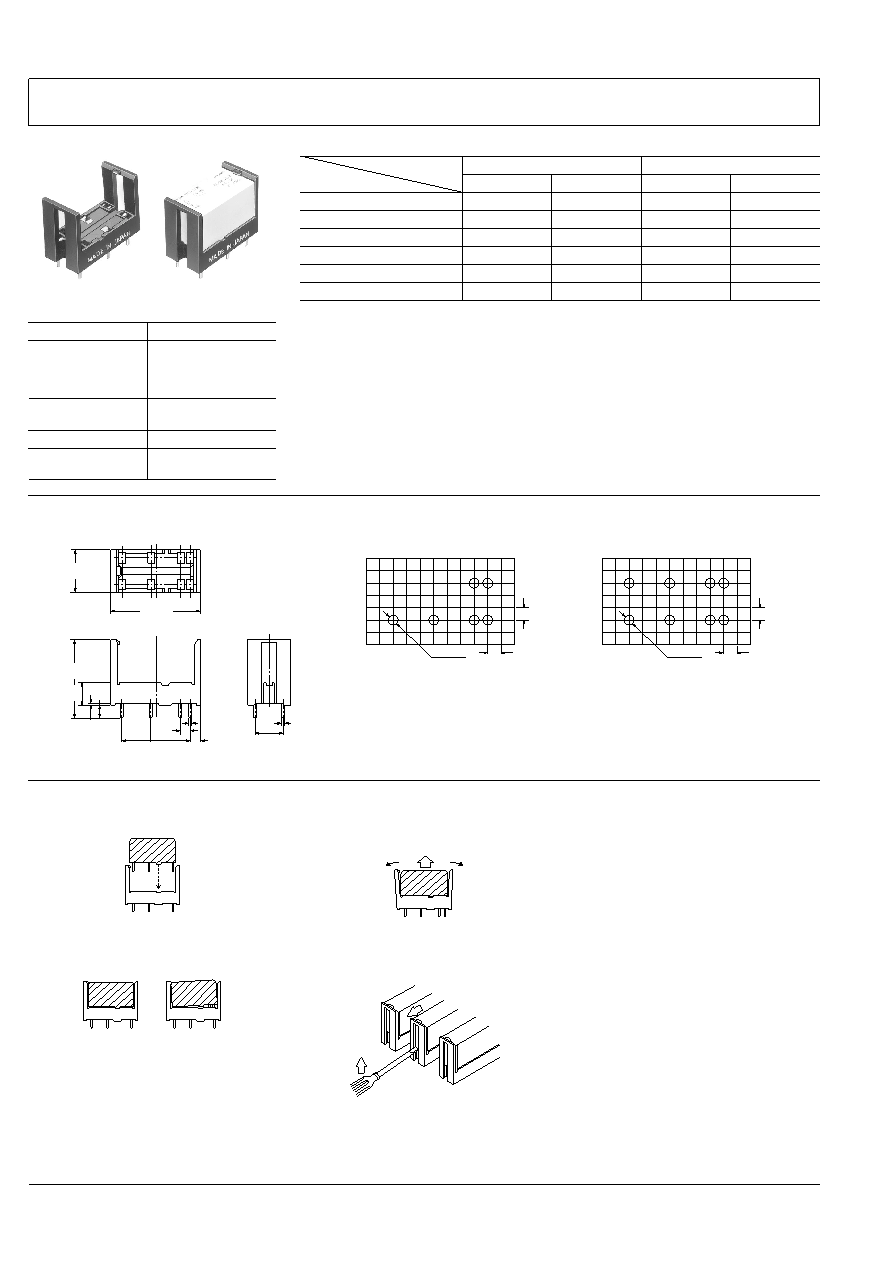

SOCKETS FOR DSP RELAYS

SPECIFICATIONS

Item

Speciﬁcations

Breakdown voltage

3,000 Vrms between

terminals

(Except for the portion

between coil terminals)

Insulation resistance

1,000 M

Ω between

terminals at 500 V

Heat resistance

150

°C for 1 hour

Max. continuous

current

1a: 8 A

2a: 5 A

TYPES AND APPLICABLE RELAYS

Type No.

Applicable relays

For DSP1a

For DSP1a, DSP1, DSP2a

DSP1a-PS

DSP1a-PSL2

DSP2a-PS

DSP2a-PSL2

DSP1a relays

DSP1a-L2 relays

DSP1 relays

DSP1-L2 relays

DSP2a relays

DSP2a-L2 relays

DIMENSIONS

mm inch

5.7

±0.3

.224

±.012

±0.6

.669

±.024

±0.6

.433

±.024

±0.6

.906

±.024

0.3

±0.1

.012

±.004

7.62

±0.3

.300

±.012

10.16

±0.3

.400

±.012

0.8

±0.1

.031

±.004

0.65

±0.1

.026

±.004

7.62

±0.3

.300

±.012

2.54

±0.3

.100

±.012

3.7

.146

2.61

.103

PC board pattern (Copper-side view)

DSP1a-PS, DSP1a-PSL2

Terminal No.2 and 15 are for

DSP1a-PSL2 only.

DSP2a-PS, DSP2a-PSL2

Terminal No.2 and 15 are for

DSP2a-PSL2 only.

2.54

.100

2.54

.100

1.2 dia.

047 dia.

2.54

.100

2.54

.100

1.2 dia.

047 dia.

FIXING AND REMOVAL METHOD

1. Match the direction of relay and socket.

2. Both ends of relays are ﬁxed so surely

that the socket hooks on the top surface of

relays.

3. Remove the relay, applying force in the

direction shown below.

4. In case there is not enough space for

ﬁnger to pick relay up, use screw drivers in

the way shown below.

Good

No good
