CC2550
PRELIMINARY Data Sheet (Rev.1.2)
SWRS039A
Page 49 of 54
28
Package Description (QLP 16)
All dimensions are in millimetres, angles in degrees. NOTE: The
CC2550 is available in RoHS
lead-free package only.

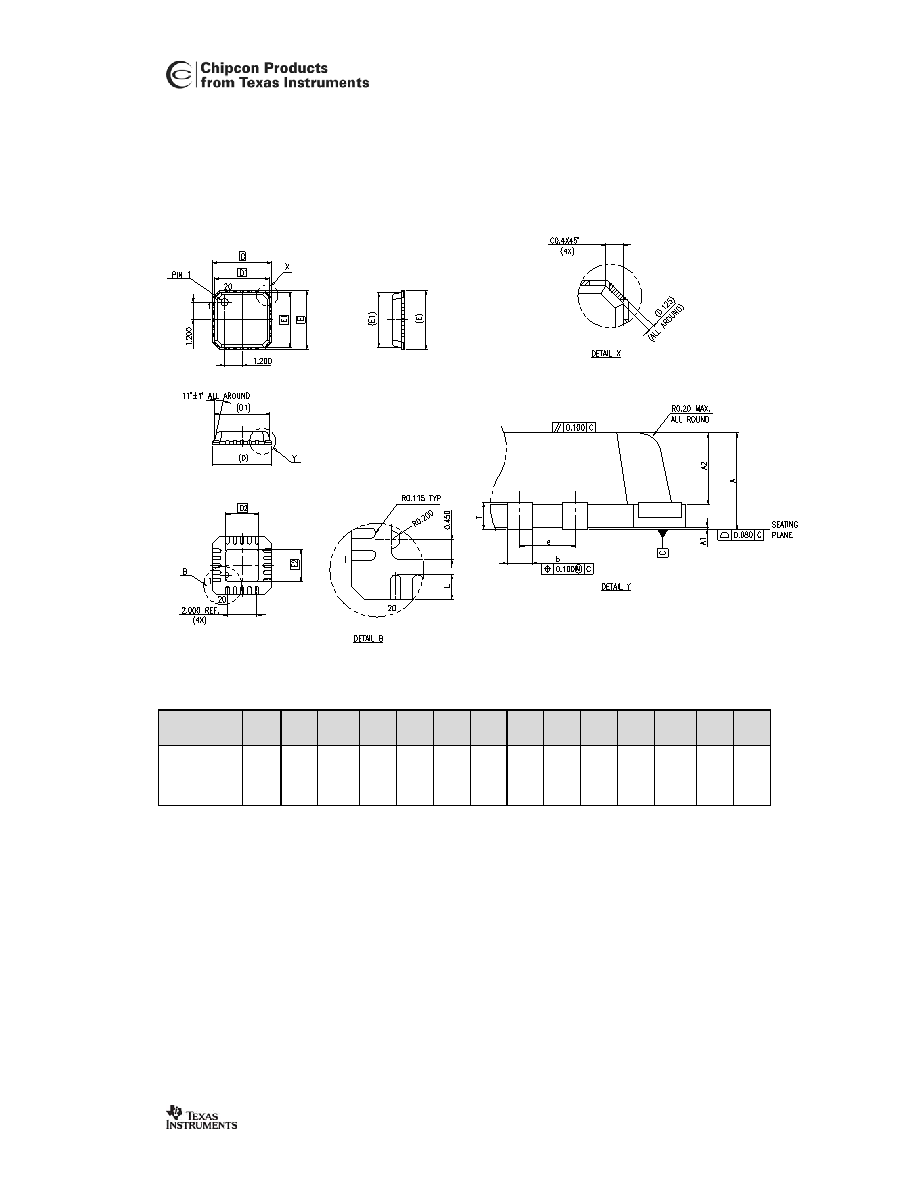

Figure 21: Package dimensions drawing (the actual package has 16 pins)
Package
type
A
A1
A2
D
D1
D2
E
E1
E2
L
T
b
e
Min
0.75
0.005
0.55
3.90
3.65
3.90
3.65
0.45
0.190
0.23
QLP 16 (4x4)
Typ.
0.85
0.025
0.65
4.00
3.75
2.30
4.00
3.75
2.30
0.55
0.28
0.65
Max
0.95
0.045
0.75
4.10
3.85
4.10
3.85
0.65
0.245
0.35
Table 27: Package dimensions
