Transformers for Inverter or Converter

C8-R Series

OUTLINE

Choke coil for various kinds of electronic

equipment such as DC-DC converter, switching

power supply, power supply circuits for TV and

VCR and such., and other various kinds of

electronic equipment.

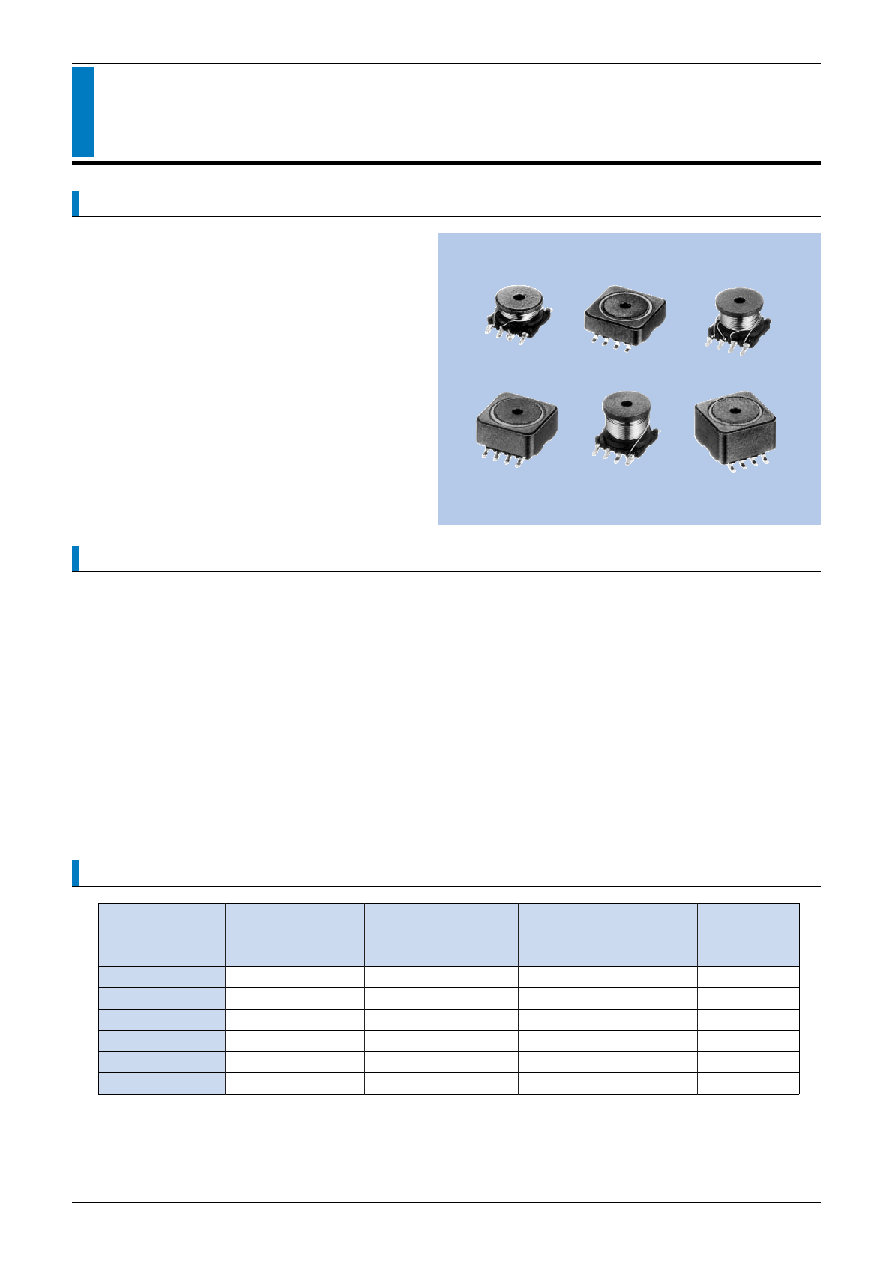

Coils, Filters

C8-R4D

C8-R Series

C8-R4L

C8-R5D

C8-R5L

C8-R6D

C8-R6L

FEATURES

1. Compact choke coils selectable from 4, 5, or 6mm in height.

2. A medium or large current can be flown according to the specifications.

3. Closed magnetic circuit (with a ring core) L type and open magnetic circuit (a drum core only) D type are

selectable.

4. These choke coils can be mounted automatically by reflow soldering with taping.

5. Owing to multiple terminals (7 terminals), a transformer containing many circuits can be designed.

SPECIFICATIONS

Models

H. length

Inductance

Operational Frequency

Pcs/Reel

(Unit : mm)

C8-R4D

4 max.

0.01~5mH

1000

C8-R5D

5 max.

0.01~9mH

1000

C8-R6D

6 max.

0.01~30mH

1000

C8-R4L

4 max.

0.01~10mH

1000

C8-R5L

5 max.

0.01~18mH

1000

C8-R6L

6 max.

0.01~60mH

1000
