Data Sheet
ADA4351-2
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 36

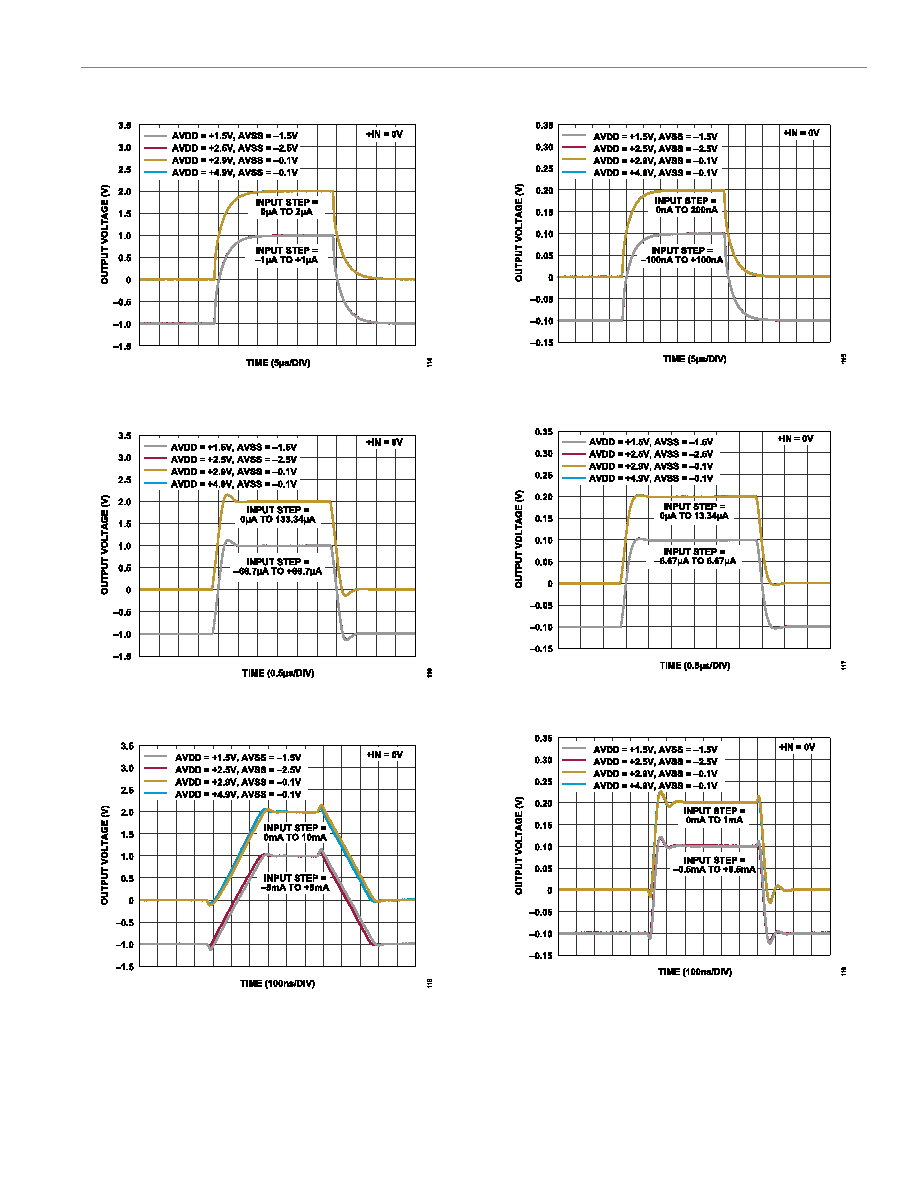

Figure 66. Large-Signal Step Response at Various Supplies, Input
Capacitance (CIN) = 10 pF, RF = 1 MΩ
Figure 67. Large-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 15 kΩ, External Feedback Capacitance (CF,EXT) = 5.6 pF
Figure 68. Large-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 200 Ω
Figure 69. Small-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 1 MΩ
Figure 70. Small-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 15 kΩ, CF,EXT = 5.6 pF
Figure 71. Small-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 200 Ω
