Specification
NET2270 USB Interface Controller
______________________________________________________________________________
 NetChip Technology, Inc., 2003
335 Pioneer Way, Mountain View, California 94041
TEL (650) 526-1490
FAX (650) 526-1494
http://www.netchip.com
Rev 3.6, April 17, 2003
19
2.5

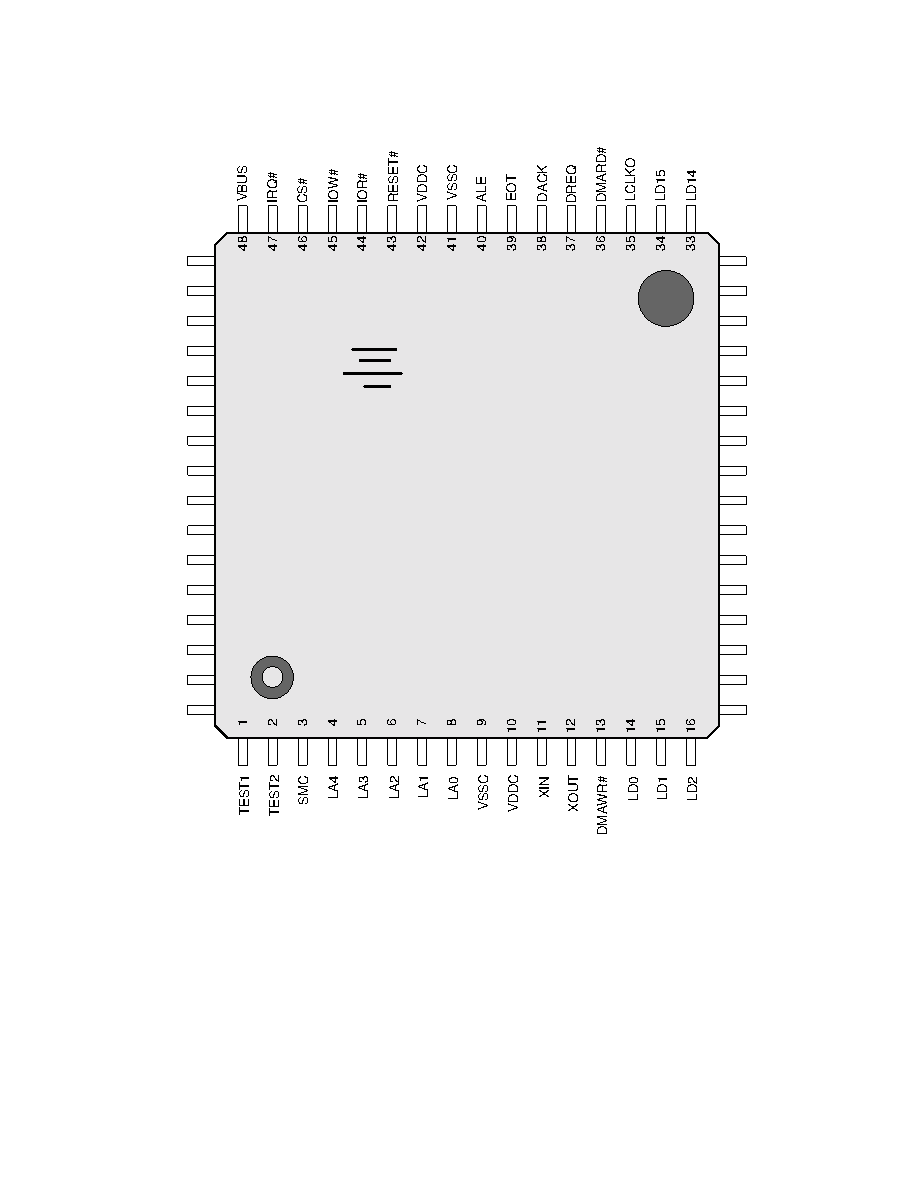

Physical Pin Assignment
NetChip
NET2270
XXXXXXX
REVx
17
32
49
64
50
51
52
53
54
55
56
57
58
59
60
61
62
63
18
19
20
21
22
23
24
25
26
27
28
29
30
31
VDDIO
LD3
VSSIO
LD4
LD5
LD6
LD7
VSSIO
LD8
LD9
LD10
LD11
VSSIO
LD12
LD13
VDDIO
RREF
AVSS
AVDD
AVSS
RPU
VSS
RSDP
DP
VDD
DM
RSDM
VSS
PVSS
PVDD
VSS
TEST3
Note: This drawing is for informational purposes only. Please contact NetChip for additional chip marking, PCB
layout and manufacturing information.
