PTX08DACP Datasheet(PDF) 4 Page - Texas Instruments

No. de pieza PTX08DACP
Descripción Electrónicos  TX08D 8-Channel Transmitter
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  TI1 [Texas Instruments]
Página de inicio  http://www.ti.com
Logo TI1 - Texas Instruments

PTX08DACP Datasheet(HTML) 4 Page - Texas Instruments

  PTX08DACP Datasheet HTML 1Page - Texas Instruments PTX08DACP Datasheet HTML 2Page - Texas Instruments PTX08DACP Datasheet HTML 3Page - Texas Instruments PTX08DACP Datasheet HTML 4Page - Texas Instruments PTX08DACP Datasheet HTML 5Page - Texas Instruments PTX08DACP Datasheet HTML 6Page - Texas Instruments PTX08DACP Datasheet HTML 7Page - Texas Instruments PTX08DACP Datasheet HTML 8Page - Texas Instruments
Zoom Inzoom in Zoom Outzoom out
 4 / 8 page
background image
www.ti.com

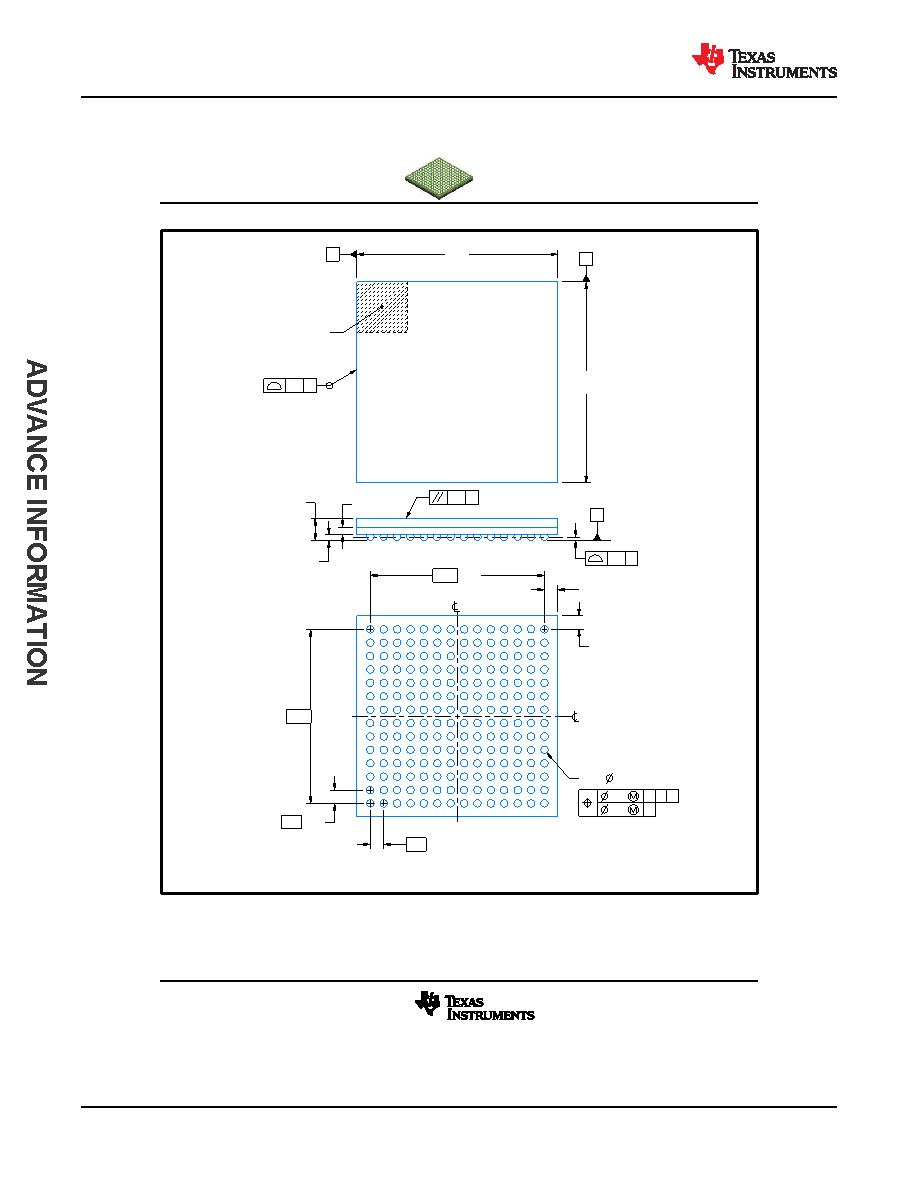

PACKAGE OUTLINE
12.1
11.9
12.1
11.9
1.321 MAX
0.393
0.293
196X
0.5
0.4
10.4 TYP
10.4 TYP
0.8 TYP
0.8 TYP
(0.8)
(0.8)
(0.448)
FCBGA - 1.321 mm max height
ACP0196A
BALL GRID ARRAY
4226793/B 07/2021
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
BALL A1
CORNER
0.1 C
0.2 C
SEATING PLANE
0.2 C
0.15
C A B
0.08
C
SYMM
SYMM
1
A
2
3
4
5
6
7
8
9
10
11
12 13
B
C
D
E
F
G
H
J
K
L
M
N
14
P
SCALE 1.200
A
B
C
TX08D
SBASAW7 – OCTOBER 2023
www.ti.com
4
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Product Folder Links: TX08D
