78250 Series

MAX250/MAX251 Compatible Converter Transformers

www.murata.com

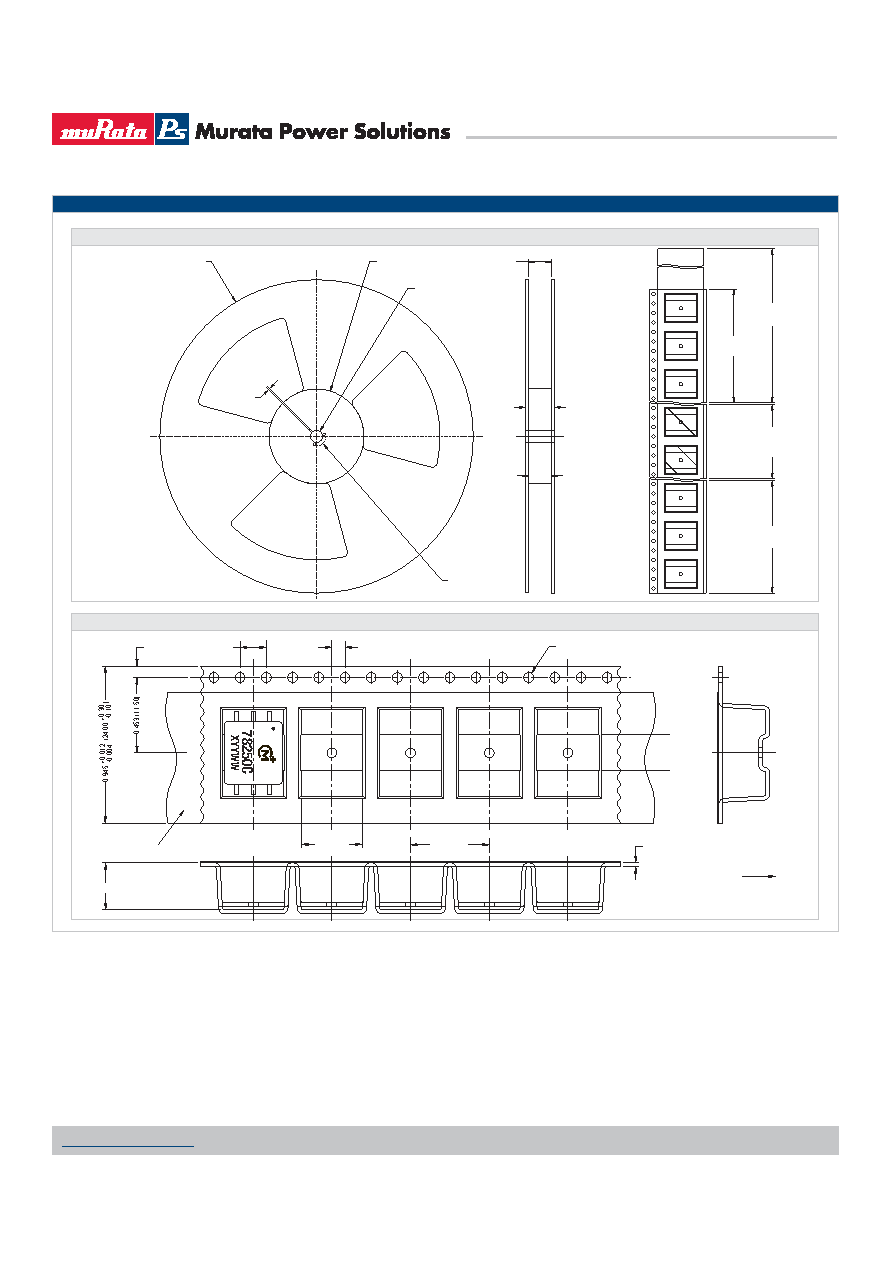

TAPE & REEL SPECIFICATIONS

REEL OUTLINE DIMENSIONS

TAPE OUTLINE DIMENSIONS

1.20

(30.4) Max.

0.94-1.08 (23.9-27.4)

0.53 (13.50)

0.50 (12.80)

0.059 (1.50)

Min.

2.36 (60) Min.

0.80 (20.20) Min.

3.9 (100)

Min.

Leader section

15.7 (400) Min.

Goods

enclosure

section

Trailer section

6.3 (160) Min.

Ø15.039 (382) Max.

0.96 (24.4)

1.04 (26.4)

Unless otherwise stated all

dimensions in inches (mm) ±0.01(0.25).

* Includes ﬂange distortion at outer edge.

Measured at hub.

0.024 (0.60) Max.

0.283 (7.20)

0.369 (9.37)

Direction of unreeling

0.069 (1.75)

0.157 (4.00)

0.079 (2.00)

0.472 (12.00)

Cover tape

0.059

(1.50

)

+0.004

-0.000

+0.10

-0.00

Unless otherwise stated all

dimensions in inches (mm) ±0.01(0.25).
