CEFB101-G Datasheet(PDF) 1 Page - Comchip Technology |
|
|
|||||||||||||||||||||||||||||
CEFB101-G Datasheet(HTML) 1 Page - Comchip Technology |
|
|

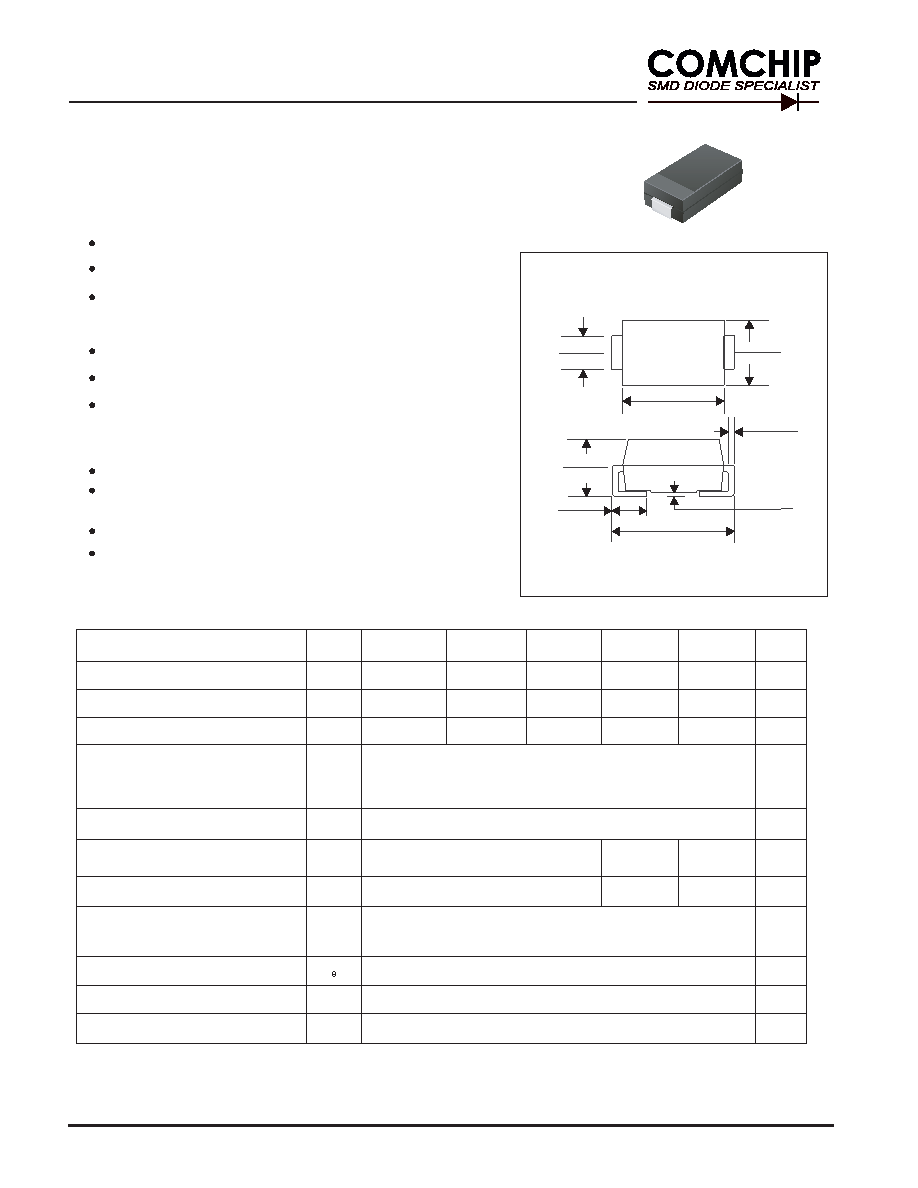

1 / 2 page  Note1: Thermal resistance from junction to lead mounted on PCB with 8.0mmx8.0mm2 copper pad areas. Page1 Parameter Symbol CEFB101-G CEFB102-G CEFB103-G CEFB104-G CEFB105-G Unit Max. Repetitive Peak Reverse Voltage Max. DC Blocking Voltage Max. RMS Voltage Max. Average Forward Current Reverse recovery time Max. Thermal Resistance (Note1) Max. Operating Junction Temperature Storage Temperature Max. DC Reverse Current at Rated DC Blocking Voltage Ta=25oC Ta=100oC Max. Instantaneous Forward Voltage at 1.0A Peak Surge Forward Current 8.3ms single half sine-wave superimposed on rate load (JEDEC method) V RRM V DC V RMS I FSM Io VF Trr IR R JL Tj TSTG 50 50 35 70 100 100 200 200 140 280 400 400 600 600 420 30 1.0 13 150 -55 to +150 5.0 200 0.875 1.1 35 50 1.25 25 V V V A A V nS uA oC/W oC oC Case: JEDEC DO-214AA molded plastic Terminals: solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end Approx. Weight: 0.063 gram Mechanical Data: Maximum Ratings and Electrical Characterics: Ideal for surface mount applications Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0. Super fast recovery time for high efficient Built-in strain relief Low forward voltage drop Features: Reverse Voltage: 50 ~ 600 Volts Forward Current: 1.0 Amp CEFB101-G Thru CEFB105-G (RoHS Device) SMD Efficient Fast Recovery Rectifier “-G” suffix designates RoHS compliant Version SMB / DO-214AA Dimensions in inches and (millimeter) 0.083(2.11) 0.075(1.91) 0.155(3.94) 0.130(3.30) 0.185(4.70) 0.160(4.06) 0.012(0.31) 0.006(0.15) 0.008(0.20) 0.203(0.10) 0.220(5.59) 0.200(5.08) 0.050(1.27) 0.030(0.76) 0.096(2.44) 0.083(2.13) |
