ADL8101ACPZN-R7 Datasheet(PDF) 21 Page - Analog Devices

No. de pieza ADL8101ACPZN-R7
Descripción Electrónicos  10 kHz to 22 GHz, Ultrawideband, Low Noise Amplifier
PDF  35 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  AD [Analog Devices]
Página de inicio  http://www.analog.com
Logo AD - Analog Devices

ADL8101ACPZN-R7 Datasheet(HTML) 21 Page - Analog Devices

Back Button ADL8101ACPZN-R7 Datasheet HTML 17Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 18Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 19Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 20Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 21Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 22Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 23Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 24Page - Analog Devices ADL8101ACPZN-R7 Datasheet HTML 25Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 35 page
background image
Data Sheet
ADL8101

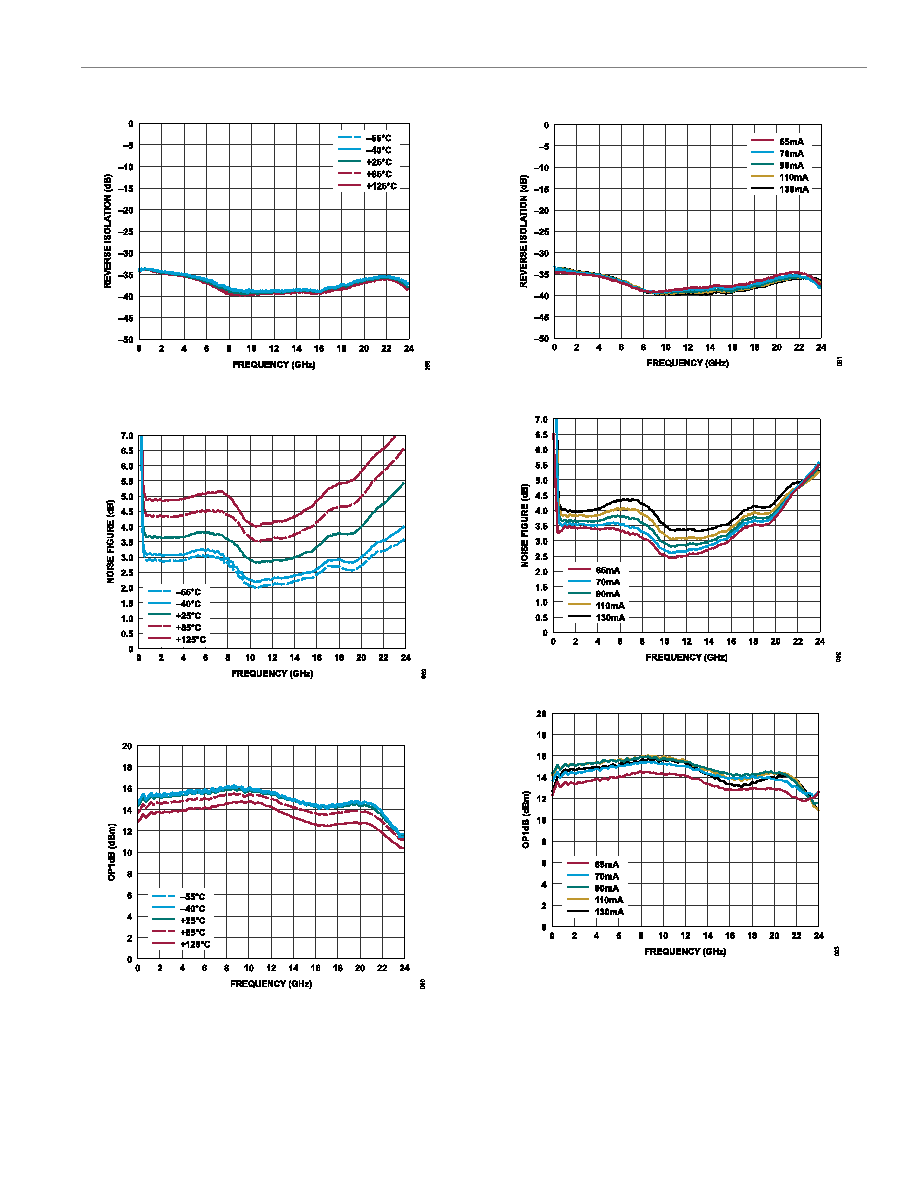

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 35
Figure 88. Reverse Isolation vs. Frequency for Various Temperatures,
IDQ = 90 mA, and RBIAS = 715 Ω
Figure 89. Noise Figure vs. Frequency for Various Temperatures,
IDQ = 90 mA, and RBIAS = 715 Ω
Figure 90. OP1dB vs. Frequency for Various Temperatures,
IDQ = 90 mA, and RBIAS = 715 Ω
Figure 91. Reverse Isolation vs. Frequency for Various IDQ Values
Figure 92. Noise Figure vs. Frequency for Various IDQ Values
Figure 93. OP1dB vs. Frequency for Various IDQ Values
