Data Sheet

ADA4870

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 8 of 24

TCASE = 25°C, unless otherwise noted.

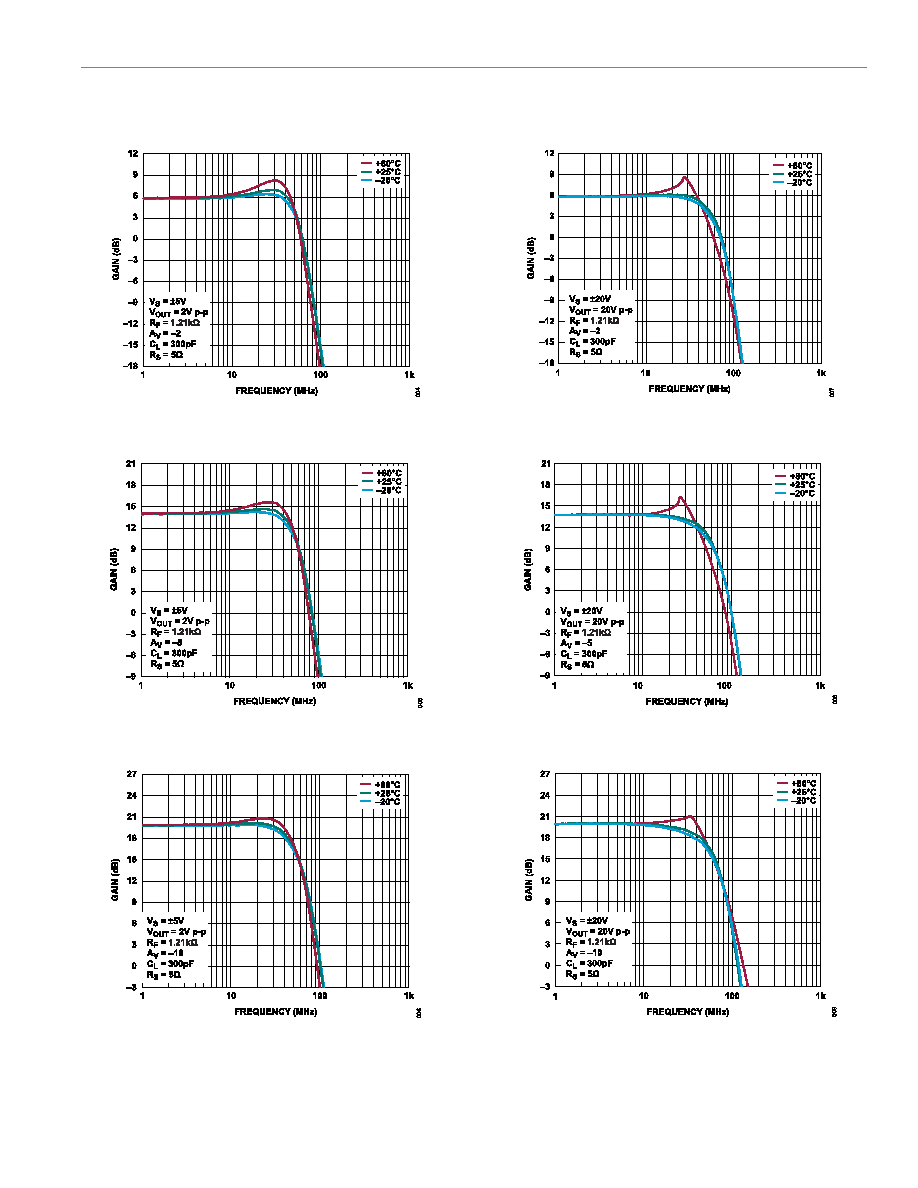

Figure 4. Small Signal Frequency Response vs. Case Temperature, AV = −2,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 5. Small Signal Frequency Response vs. Case Temperature, AV = −5,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 6. Small Signal Frequency Response vs. Case Temperature, AV = −10,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 7. Large Signal Frequency Response vs. Case Temperature, AV = −2,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 8. Large Signal Frequency Response vs. Case Temperature, AV = −5,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 9. Large Signal Frequency Response vs. Case Temperature, AV = −10,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω
