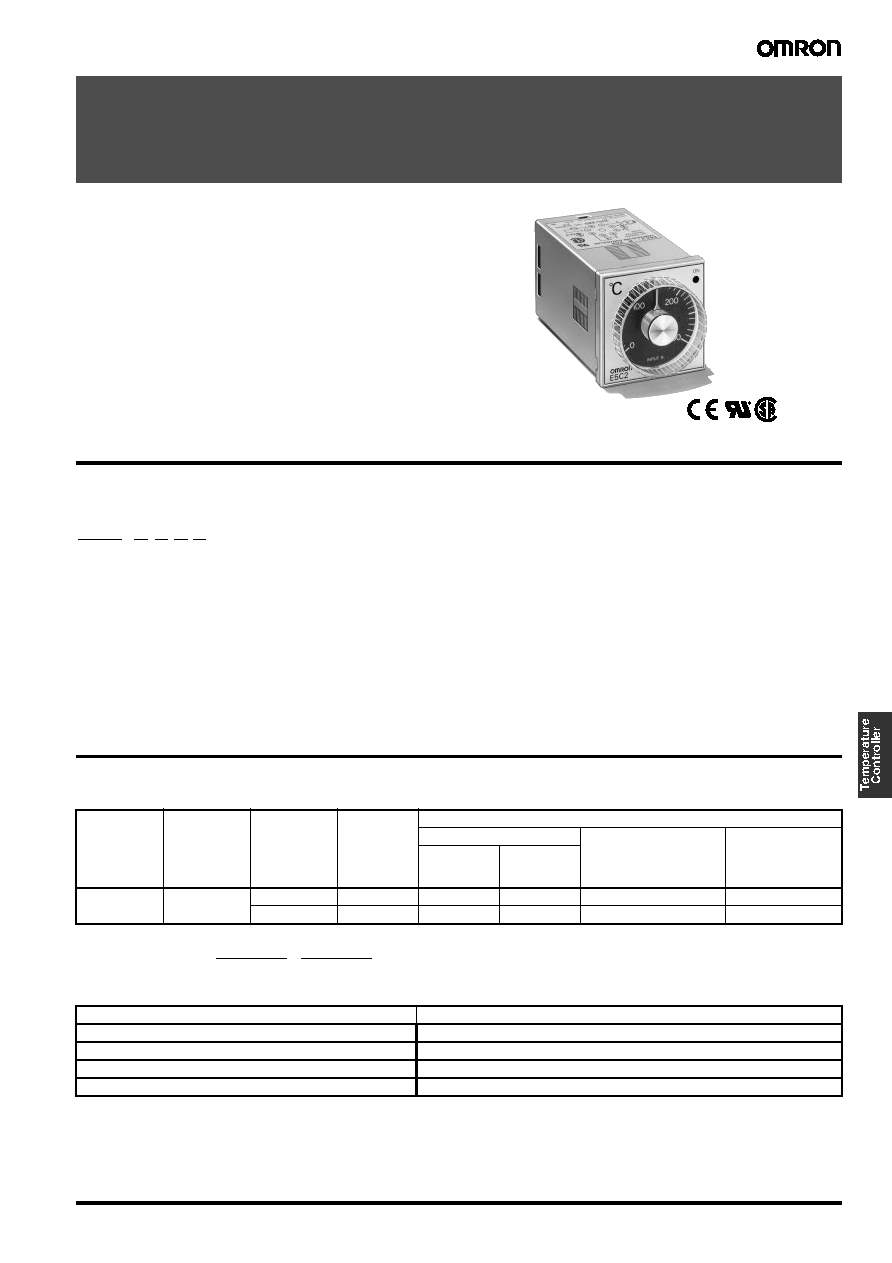

Temperature Controller

E5C2

I-5

Temperature Controller

E5C2

DIN-sized (48 x 48 mm) Temperature

Controller with Analog Setting

• Compact, low-cost Temperature Controller.

• Incorporates proportional control and reset adjustment function.

• Consecutive mounting possible using mounting adapter.

• Incorporates a plug-in socket, thus allows to DIN-track and flush

mounting.

Model Number Structure

I Model Number Legend

1. Model name

2. Control output

R:

Relay

Q:

Voltage

3. Control method

20:

ON-OFF control

40:

P control

4. Input type

K:

K-type thermocouple

J:

J-type thermocouple

P:

Platinum resistance thermometer (Jpt100)

G:

Thermistor (THE)

5. Special type

Blank:

Standard type

D, DIN: Special types

Ordering Information

I Temperature Controllers

Note: When placing an order, specify the standard temperature range and supply voltage in addition to the model number.

(e.g., E5C2-R20K

0

°C to 200°C 100/110 VAC)

I Accessories (Order Separately)

12

3

45

E5C2-

@ @ @ @

Setting

method

Indication

method

Control mode

Output

Model

Thermocouple

Platinum resistance

thermometer

Pt100

Thermistor

THE

K (CA)

Chromel vs.

alumel

J (IC)

Iron vs.

constantan

Analog setting No indication

ON/OFF

Relay

E5C2-R20K

E5C2-R20J

E5C2-R20P-D

E5C2-R20G

P

Relay

E5C2-R40K

E5C2-R40J

E5C2-R40P-D

---

Name

Model

Front Connecting Socket

P2CF-08

Back Connecting Socket (for flush mounting)

P3G-08

Front Connecting Socket with Finger Protection

P2CF-08-E

Protective Cover (for finger protection)

Y92A-48G
