3515A
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
7 of 9
www.unisonic.com.tw
QW-R502-105,A

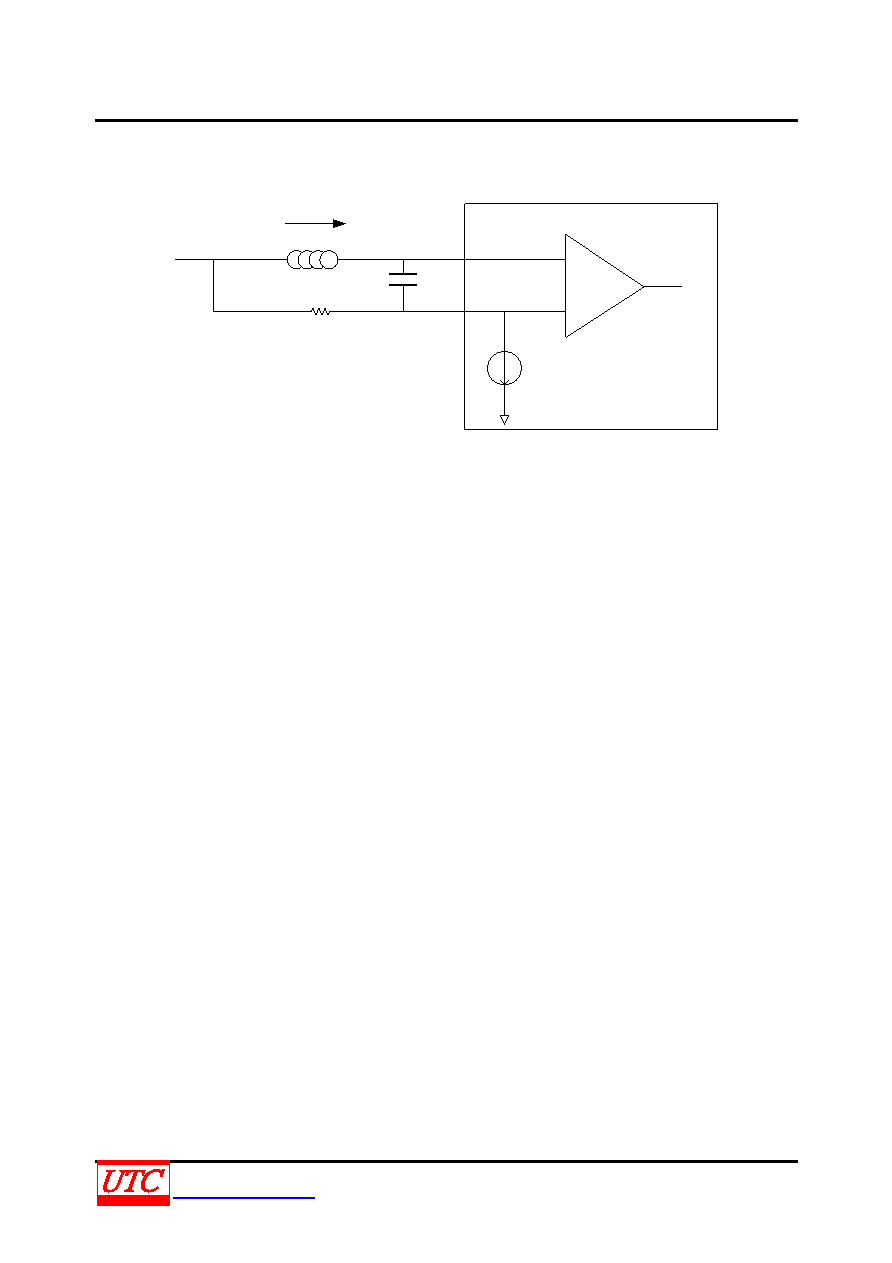

APPLICATION INFORMATION
IL
RL
C
+
V5
R
-
I5
8×IREF
(IREF=VREF/RI)
RL: inductor DC resistor
If IL* RL＞ (8 * IREF) * R, then OCP active.
And the capacitor C is used to avoide power on fail or dynamic load fail.We suggest C > 1µF.
EX：How to select the resistor of R? Assume RI=30KΩ, RL=3mΩ, OCP=20A。
Sol：R = ( IL * RL ) / ( 8 * IREF )
= ( 20A * 3mΩ) / { 8 * ( 1.2V / 30KΩ)}
= 187.5Ω
