Data Sheet
ADL5506
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. C | 13 of 22

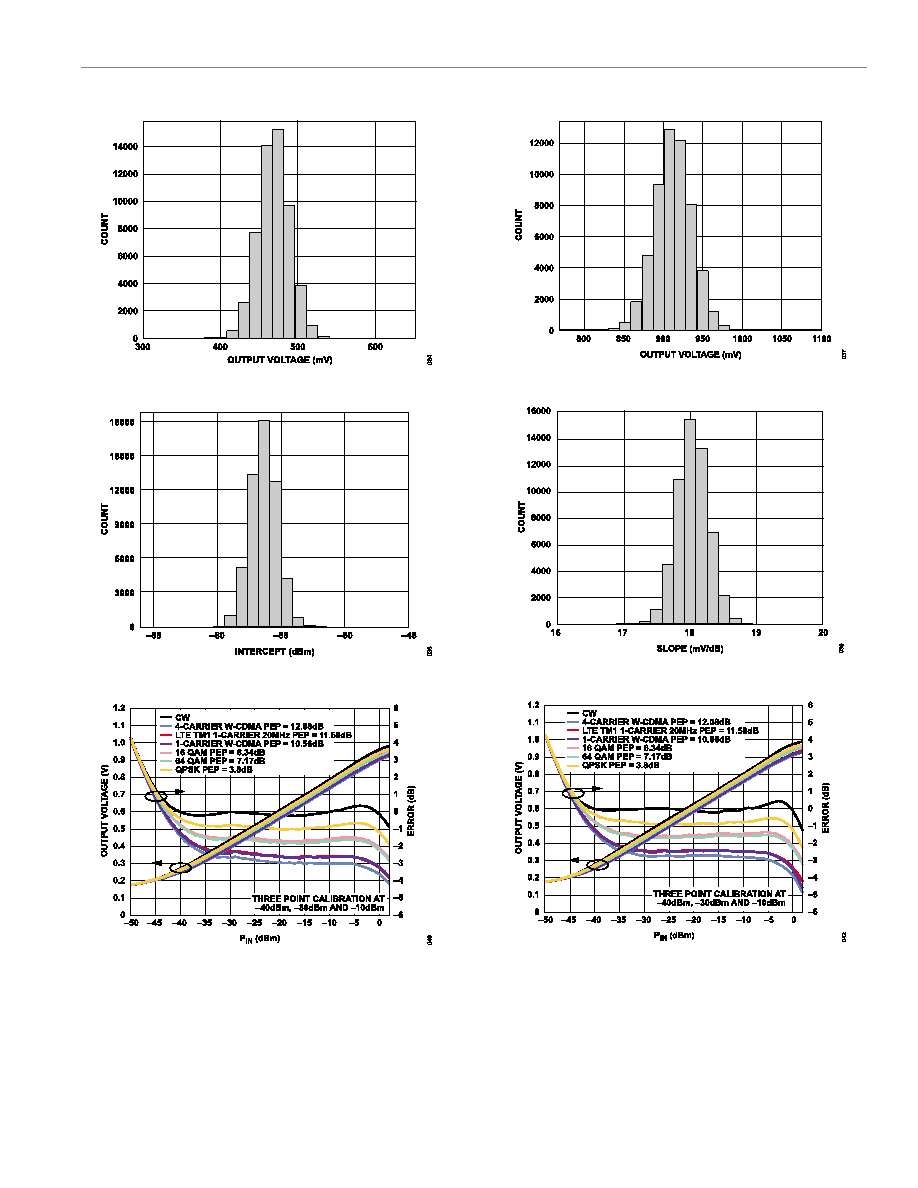

Figure 33. Distribution of VLOG at 900 MHz, 25°C, PIN = −30 dBm
Figure 34. Distribution of Intercept at 900 MHz, 25°C
Figure 35. Error from CW Linear Reference vs. Signal Modulation (Four-
Carrier W-CDMA, LTE TM1 One-Carrier 20 MHz, One-Carrier W-CDMA, 16
QAM, 64 QAM, QPSK), Frequency = 100 MHz
Figure 36. Distribution of VLOG at 900 MHz, 25°C, PIN = −6 dBm
Figure 37. Distribution of Slope at 900 MHz, 25°C
Figure 38. Error from CW Linear Reference vs. Signal Modulation (Four-
Carrier W-CDMA, LTE TM1 One-Carrier 20 MHz, One-Carrier W-CDMA, 16
QAM, 64 QAM, QPSK), Frequency = 2.14 GHz
