3A Ultra Low Dropout Linear Regulator
GS7103
Green Solution Technology Co.,LTD.
Rev.:1.6
14
JUN-16

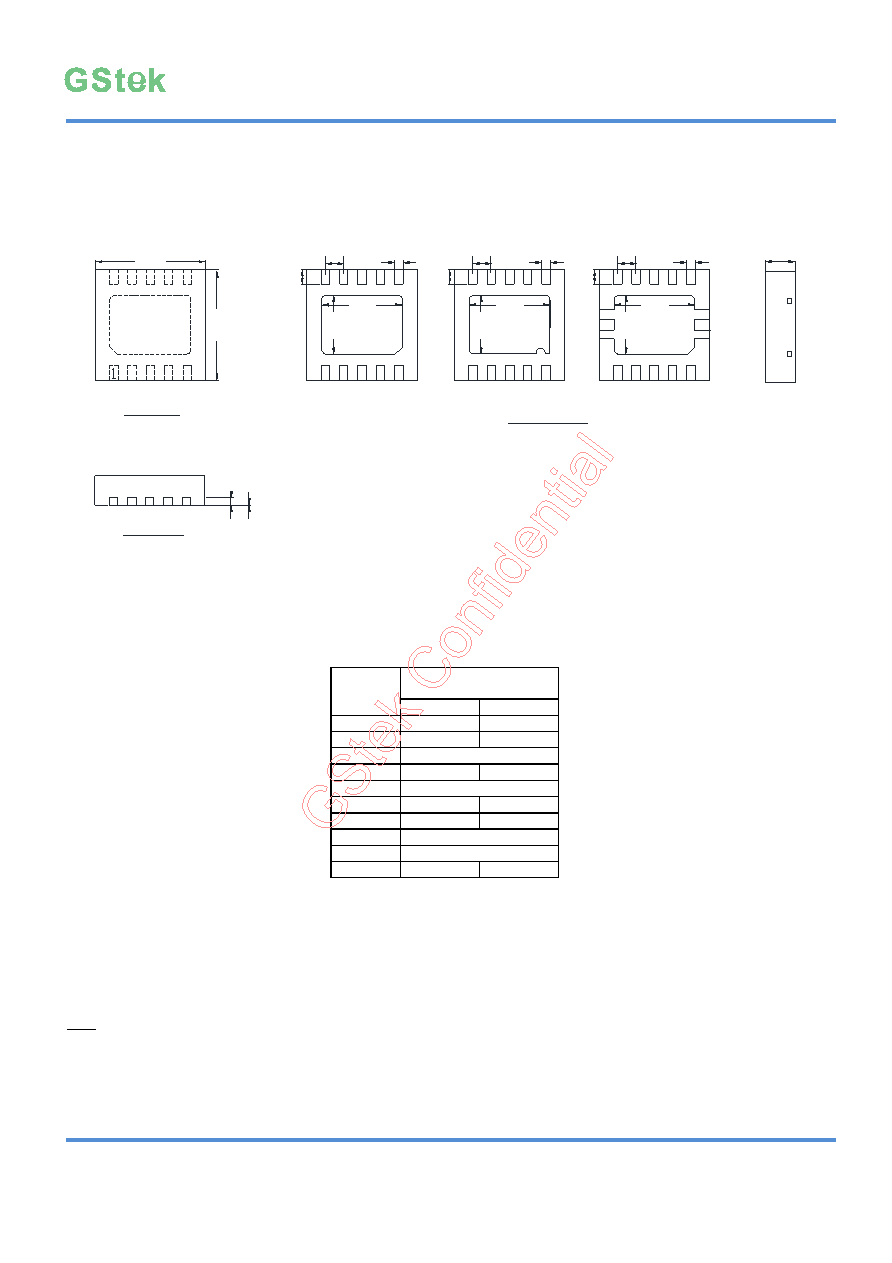

Package Dimensions, TDFN10-3x3
A3
Top view
10
Bottom view
Pin #1 ID Options
Note:The configuration of the Pin#1 identifier is
optional,but must be located within the zone indicated.
A1
Side view
D
E
E1
D1
L
e
b
6
7
89
5
4
3
2
1
10
E1
D1
L
e
b
6
7
89
5
4
3
2
1
10
E1
D1
L
e
b
6
7
89
5
4
3
2
1
A
Note:
1.
Min.: Minimum dimension specified.
2.
Max.: Maximum dimension specified.
3.
REF.: Reference. Normal/Regular dimension specified for reference.
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.70
0.80
A1
0.00
0.05
A3
0.203 REF.
b
0.18
0.30
e
0.50 REF.
D
2.90
3.10
E
2.90
3.10
D1
2.30 REF.
E1
1.65 REF.
L
0.30
0.50
